Weigh Hopper Venting Filter HOPPERTOP Brochure
4Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

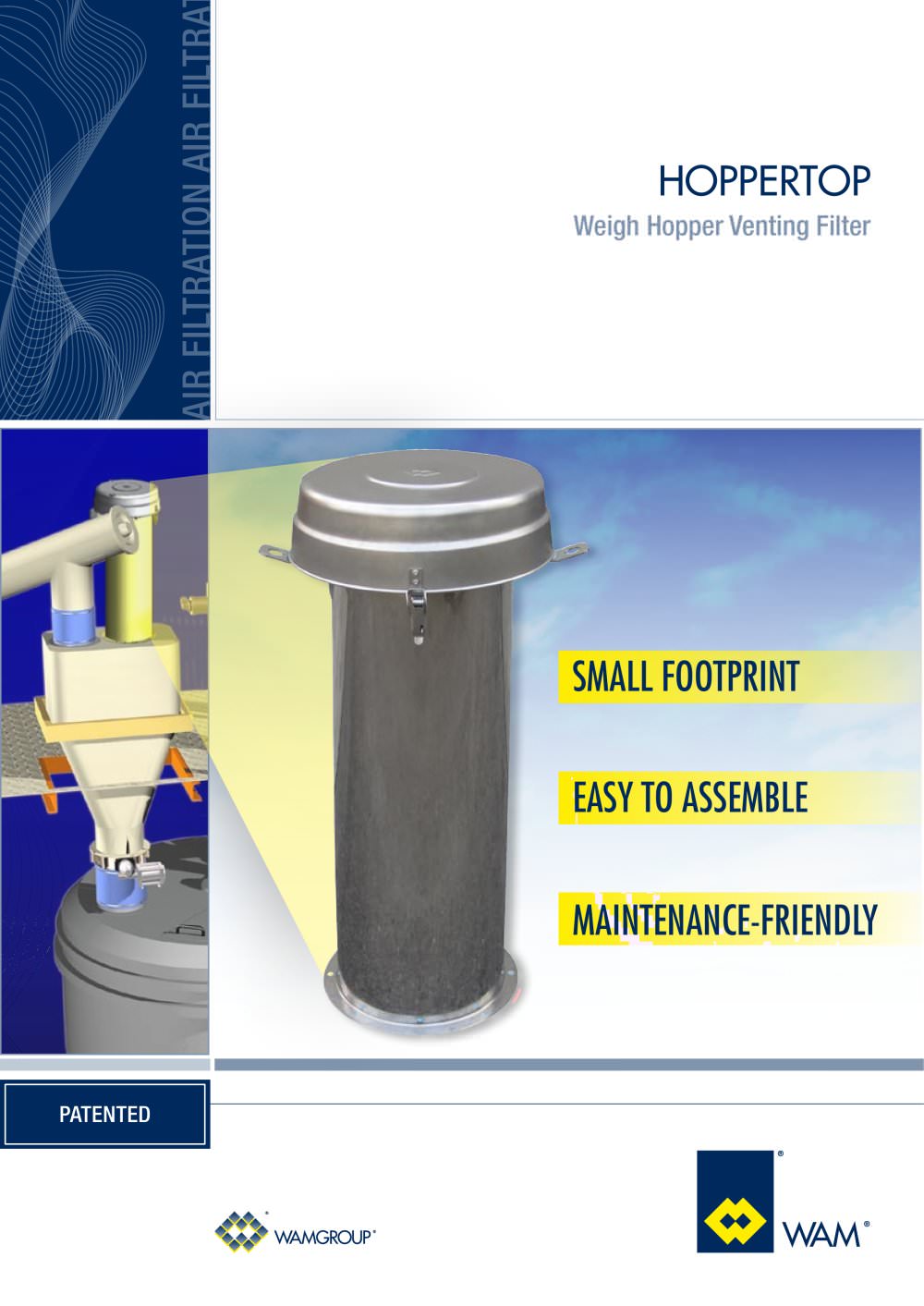

AIR FILTRATION AIR FILTRATI Weigh Hopper Venting Filter PATENTED HOPPERTOP EASY TO ASSEMBLE SMALL FOOTPRINT MAINTENANCE-FRIENDLY

Open the catalog to page 1

Overall Dimensions MODEL TYPE FILTER SURFACE (m2) HTP10001V VENTING 1 HTP10001R TOP CONNECTION 1 866 mm 998 mm 273 mm 300 mm 318 mm 1580 mm (Space for maintenance) Weigh Hopper Venting HOPPERTOP HOPPERTOP is a COMPACT air filter specially developed for venting of mechanically loaded cement weigh hoppers in concrete plants. Dust which is separated from the air flow by a single WAM® cartridge filter element drops back into the hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed the dust particles from the filter elements. THE...

Open the catalog to page 2

Accessories Cover for external pipe conncetion • Required for dust emission sampling connection • Robust powdercoated steel cover • Easy to fit to existing venting versions Electronic Differential Pressure Meter • Filter DP continuously measured and displayed on 3 digit display; • Cleaning activation with pressure threshold; • Alarm pressure can switch on external device; • 4-20 mA exit to read DP value on plant PLC; • Possible to install on existing filters. Easy maintenance thanks to hinged top cover and cartidge removal without tools Durable thanks to wide pleat cartridge geometry...

Open the catalog to page 3

Applications www.wamgroup.com WAM.03510.70.EN 01/10 Rights reserved to modify technical specifications. For further information visit www.wamgroup.com Typical Application: • Venting of mechanically filled weigh hoppers in concrete batching plants
