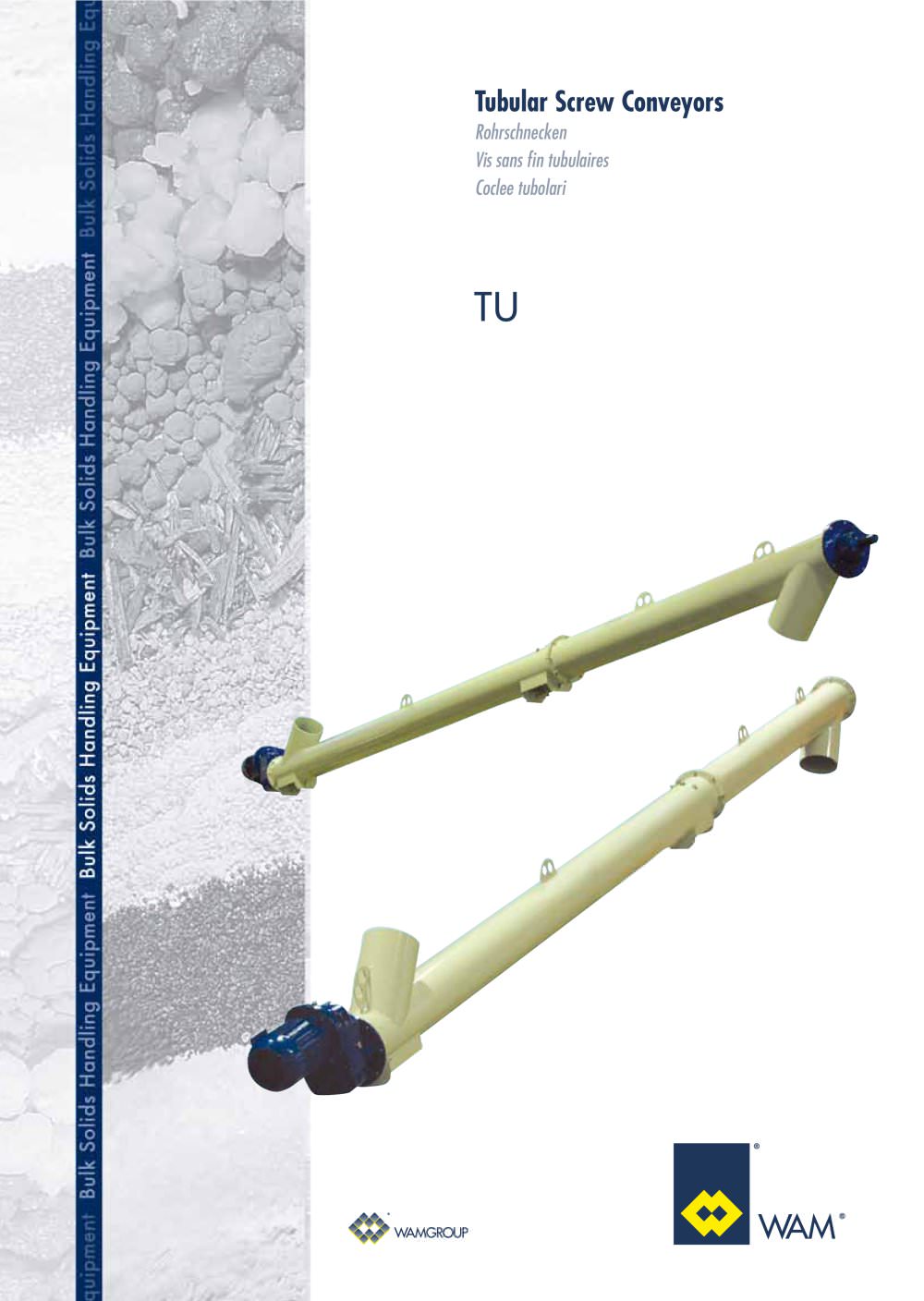

Tubular Screw Conveyors TU Brochure
6Pages

{{requestButtons}}

Catalog excerpts

Tubular Screw Conveyors TU Brochure - 2

TU Tubular Screws consist of: - External tube with fully weldet inlet and outlet (selection of angles) - Helicoid flighting welded onto an internal rotating pipe - Two end bearing assembles incorporating bearings fitted with long life seals - Where needed intermediate hanger bearings TU - Rohrschnecken bestehen aus folgenden Komponenten: - Außenrohrmantel mit End- und Zwischenflanschen - Endloswendeln auf Innenrohr verschweißt - Endlagereinheiten mit langlebigen Abdichtungen - Zwischenlager, sofern erforderlich Les transporteur a vis de la série TU sont constitués de: - Un tube extérieur...

Open the catalog to page 2
Tubular Screw Conveyors TU Brochure - 4

v - Direct Drive Direktantrieb Entranement directe Trasmissione diretta Flexible Coupling Direktantrieb ber Kupplung Entranement par accouplement Trasmissione con giunto Chain Transmission Antrieb ber Kettentrieb Entranement par cha鮮ne Trasmissione a catena 0 SCREW SCHNECKE VIS COCLEA A G I L M N P S T U V W Z a b 5482 c d e f g 114 131.0 140 120 150 190 268 413 790 114 600 559 600 368 268 25 28 x 25 50 81.0 65 250 54.0 139 131.0 140 120 150 190 268 413 790 139 600 559 600 368 268 25 28 x 25 50 81.0 65 250 54.0 168 172.5 160 140 190 250 330 450 890 168 650 581 650 420 305 35 40 x 36 117.5...

Open the catalog to page 4
