Overview: The VCP Pressure Relief Valves are designed to protect silo structures from abnormal pressure conditions. They consist of a cylindrical casing with a weld-on spigot, a disc-shaped inner lid for negative pressure, an outer steel ring for excess pressure, gaskets, and a weather protection cover.

Functionality: Helical springs keep the valve lids closed under normal pressure conditions. The outer lid is held by three spring rods and opens when internal pressure exceeds preset limits, allowing pressure to escape. The inner lid, held by a single spring rod, opens under suction pressure to allow air entry, balancing the pressure.

Technical Specifications: The valves are available in carbon steel or stainless steel, with body diameters of 273 mm or 356 mm. They support air volumes up to 7,000 m3/h for VCP273 and 13,000 m3/h for VCP375. Standard versions are preset for a maximum negative pressure of -0.005 bar and a maximum excess pressure of +0.05 bar. Calibration can be adjusted with special spring kits.

Benefits: The valves are lightweight, easy to handle, highly resistant to atmospheric agents, easy to install, and require quick maintenance.

Options & Accessories: Available options include an ATEX-certified version for zone 21, inductive proximity sensors, and an inspection hatch.

Performance & Features: The valves are equipped for inductive signaling sensors and are calibrated by the manufacturer for specific pressure settings. They are designed for high resistance and easy maintenance.

Catalog excerpts

Spring-loaded Pressure Relief Valves VCP Brochure-1

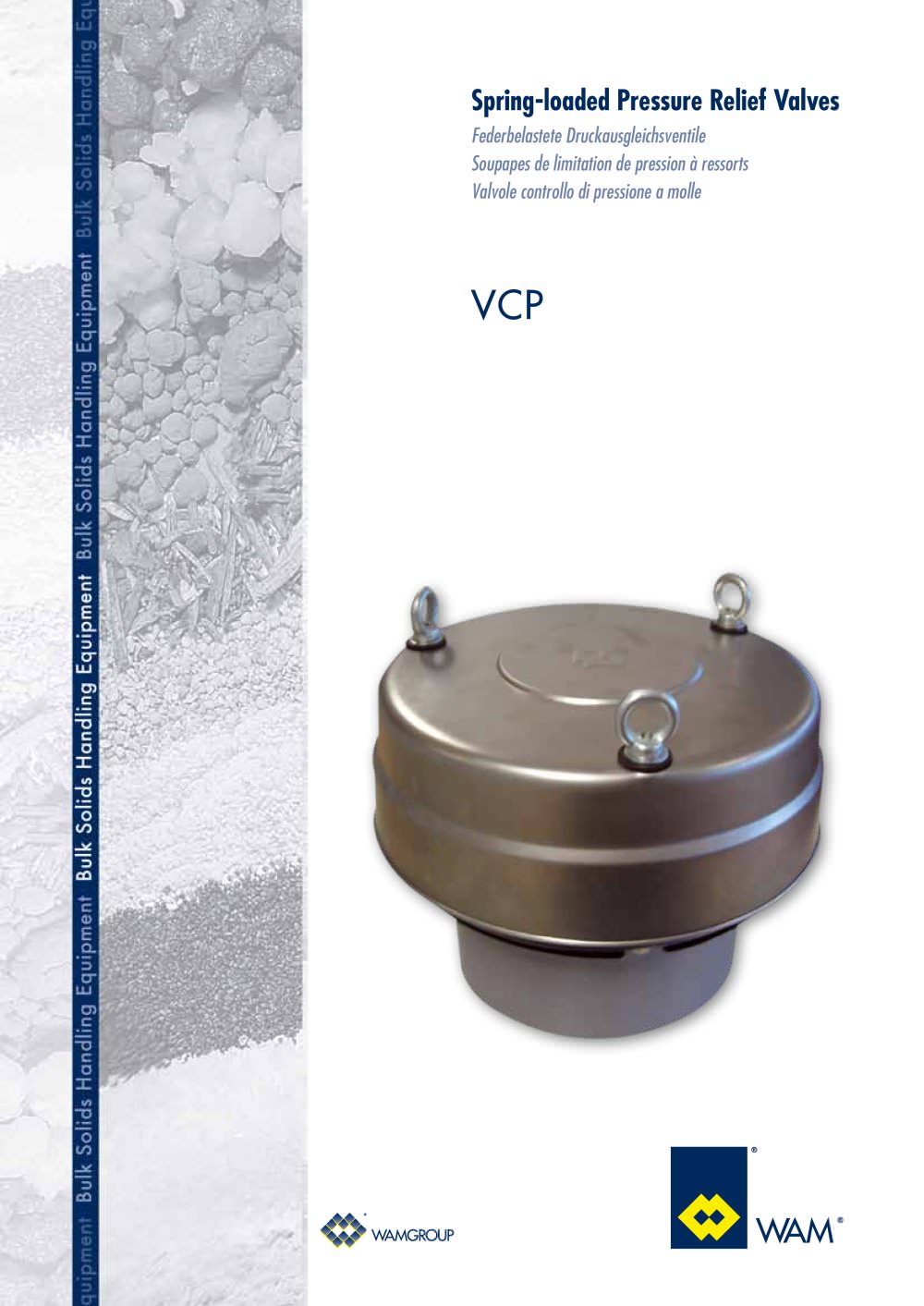

Spring-loaded Pressure Relief Valves Federbelastete Druckausgleichsventile Soupapes de limitation de pression à ressorts Valvole controllo di pressione a molle VCP

Open the catalog to page 1

Spring-loaded Pressure Relief Valves VCP Brochure-2

VCP Pressure Relief Valves consist of a cylindrical casing with clamped weld-on spigot, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover. Function In the VCP Pressure Relief Valve, helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does...

Open the catalog to page 2

Spring-loaded Pressure Relief Valves VCP Brochure-3

VCP A B D C E Ø F A 400 525 B 356 468 Size 273 Größe 273 Taille 273 Taglia 273 mm Size 375 Größe 375 Taille 375 Taglia 375 mm C 125 175 D 120 120 E 325 400 Ø F 273 356 kg 9.5 23 Performances et caractéristiques techniques - Corps en acier au carbone (VCP2731C / VCP3751C) peint RAL 7001 ou en AISI 304 (VCP2732C / VCP 3752C) - Capot en acier inox - Diamètre du corps = 273/ 356 mm - Débit d’air jusqu’à 7.000 m3/h pour VCP273 et 13.000 m3/h pour VCP375 - Réservation pour capteurs inductifs de signalisation - Les deux versions sont réglées pour une pression négative maximale de - 0,005 bar et une...
