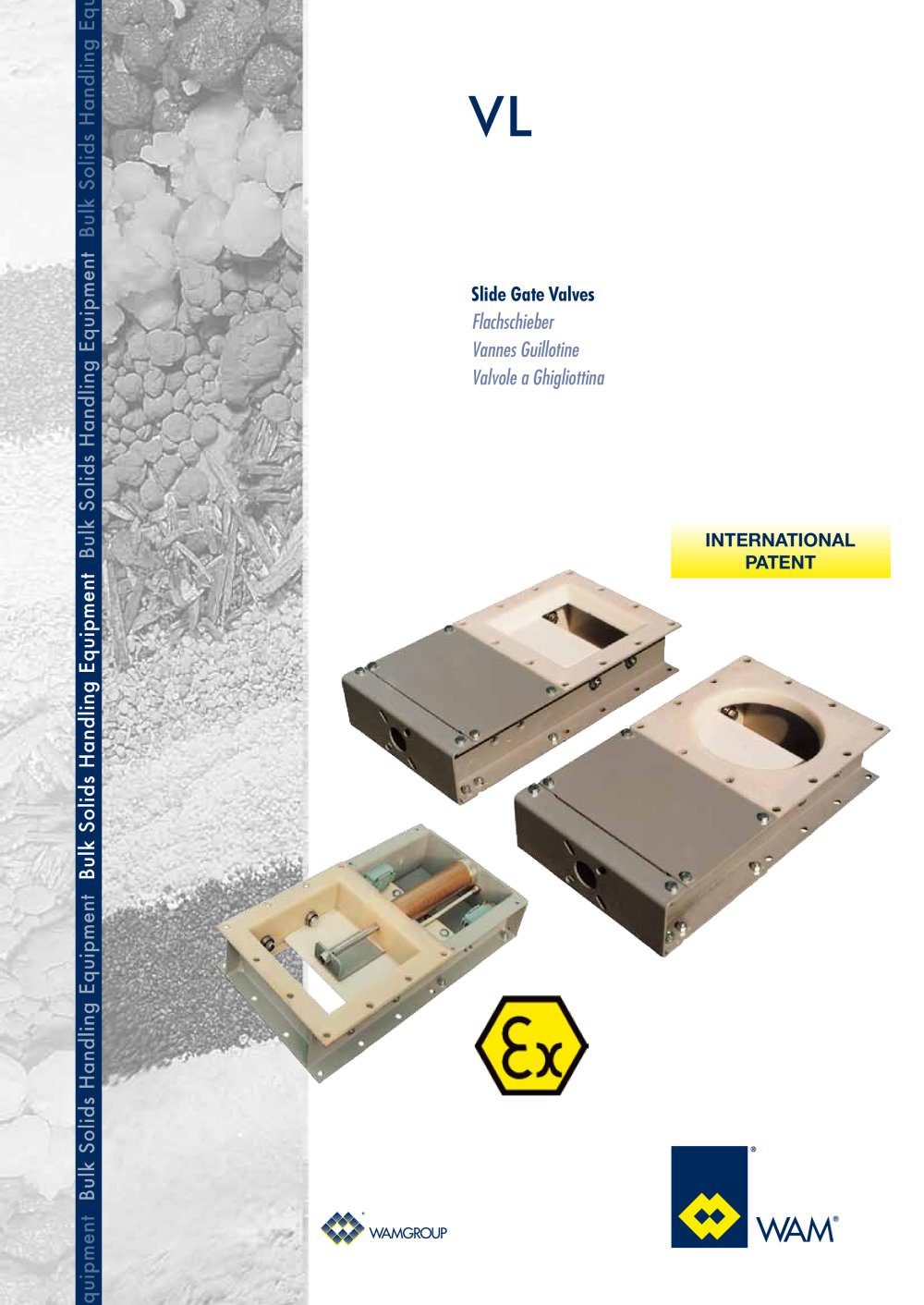

Slide Gate Valves VL Brochure

Slide Gate Valves VL Brochure
6Pages

Catalog excerpts

VL Slide Valves are used where the flow of a bulk solid caused by gravity or transport has to be intercepted. Valves may be fitted to hopper or silo outlets, to the inlets and outlets of mechanical conveyors and to the inlet of telescopic loading spouts. VL-type Slide Valves consist of a two piece carbon or stainless steel frame, which is partly coated with WAM’s unique SINT™ engineering polymer composite, and a sliding blade manufactured either in the same material or in stainless steel. The use of SINT™ engineering polymer considerably increases resistance to abrasion compared to...

Open the catalog to page 2

u Slide Valve With Internai Actuator Flachschieber mit innenliegendem Pneumatikantrieb Vanne Guillottine avec Vrin Incorpor੩ Valvola Ghigliottina con Cilindro Interno I TYPE A B C D E N° E 0 F Bolts Sdirauben Boulons Bulloni G H kg VLS0150.. 120 175 261 15,5 115,0 2 12,5 M10 455 113 16,5 VLS0200.. 170 225 311 15,5 93,3 3 12,5 M10 555 113 21,0 VLS0250.. 220 275 361 15,5 110,0 3 12,5 M10 650 113 25,5 VLS0300.. 270 325 431 23,0 128,3 3 12,5 M10 765 113 34,0 1 Carbon Steel /Stahl/Acier au carbone/Acciaio al carbonio 3 304 Stainless Steel / Edelstahl 1.4301 /Acier inox 304 /Acciaio inox AISI304...

Open the catalog to page 4

HAND WHEEL COMPATIBILY KOMBINATIONSMÖGLICHKEITEN MIT HANDRAD ACCOUPLEMENTS D’ACTIONNEUR MANUEL ABBINAMENTI DI ATTUATORE MANUALE VLQ - VLC 0150 . . - CMG0150 I. VLQ - VLC 0200 . . - CMG0200 I. VLQ - VLC 0250 . . - CMG0250 I. VLQ - VLR-VLC 0300 . . - CMG0300 I. VLQ - VLC 0350 . . - CMG0350 I. VLQ - VLC 0400 . . - CMG0400 I. GEAR MOTOR COMPATIBILY KOMBINATIONSMÖGLICHKEITEN MIT GETRIEBEMOTOR ACCOUPLEMENTS D’ACTIONNEUR ELECTRIQUE ABBINAMENTI DI ATTUATORE CON MOTORIDUTTORE LSM6 VLQ - VLC 0150 . . - CRG010A150 I VLQ - VLC 0200 . . - CRG010A200 I VLQ - VLC 0250 . . - CRG010B250 I VLQ - VLR - VLC...
