Inclined Feeder Valves VDI Brochure

Inclined Feeder Valves VDI Brochure

Product catalog summary

Overview: The VDI Inclined Slide Valve is an innovative device designed for controlling material flow in various industrial applications. It features an inclined blade that forms an eye-shaped aperture with the asymmetrically tapered inner body, allowing for precise flow control.

Specifications: The valve is constructed with a self-supporting cast in SINT® engineering polymer composite, with the blade available in carbon or stainless steel. It can be operated manually, electropneumatically, or by gear motor.

Functionality: The valve not only intercepts material discharged by gravity but also controls the flow during this process. Its asymmetrical blade geometry allows for flow adjustment, adding volumetric feeding properties. It is suitable for installation on hoppers, tanks, silos, screw conveyors, and loading bellows, and is applicable in various industries, including food-grade applications.

Performance & Benefits: The valve offers several advantages, including dustproof design, intermediate blade positions for feeding, and high abrasion resistance. It is available in standard or food-grade SINT® engineering polymers.

Technical Features: The valve's design allows for controlled material flow, with options for manual, gear motor, or pneumatic actuator coupling. It is available in different sizes and materials, including carbon steel and 304 stainless steel.

Applications: The VDI Inclined Slide Valve is versatile and can be used under light or heavy loads, making it suitable for a wide range of industrial applications.

Contact Information: WAM S.p.A., Via Cavour, 338, I - 41030 Ponte Motta, Cavezzo (MO) - ITALY. Tel: +39 0535 61 81 11, Fax: +39 0535 61 82 26, Email: [email protected], Website: www.wamgroup.com

Catalog excerpts

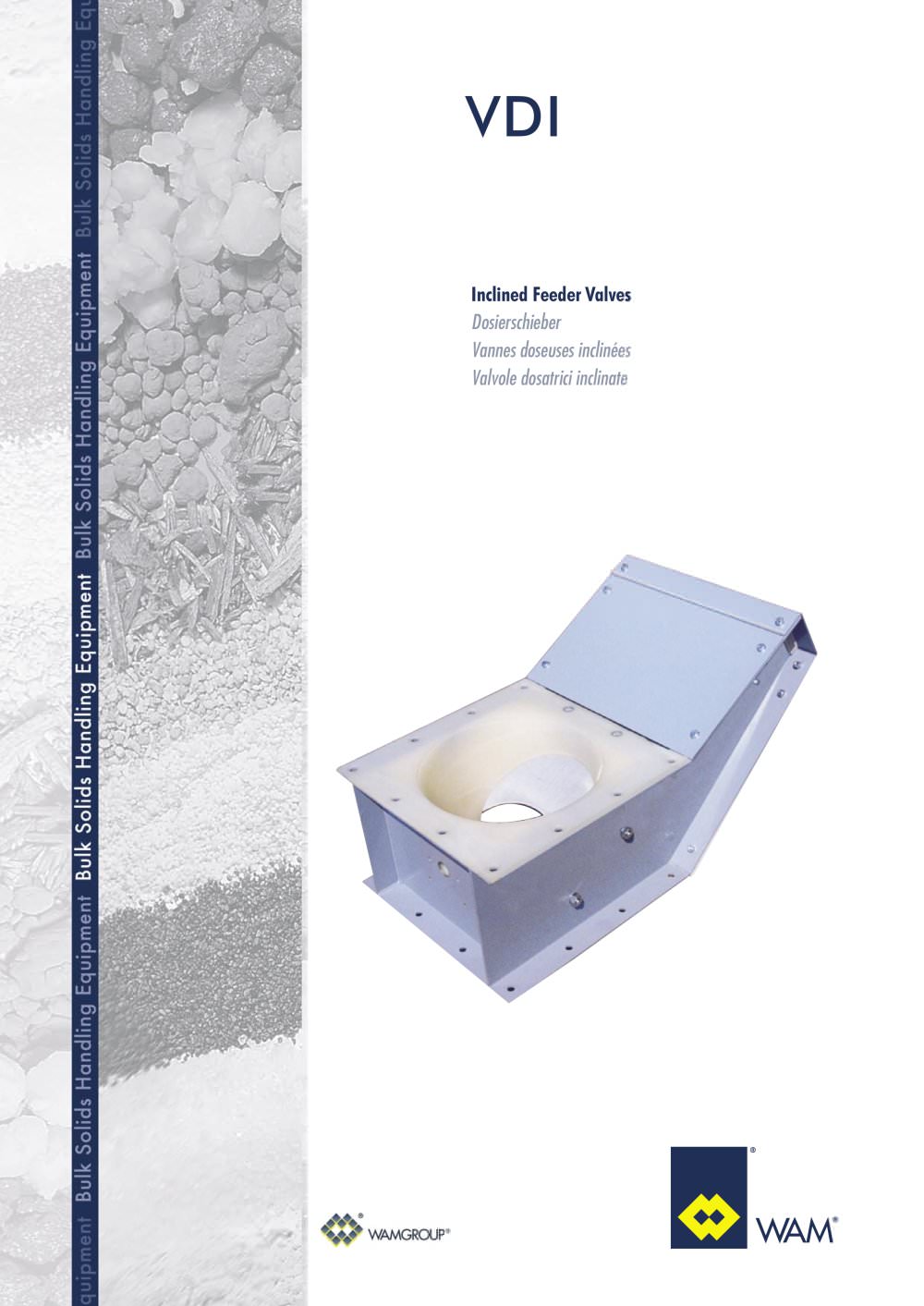

Inclined Feeder Valves Dosierschieber Vannes doseuses inclinées Valvole dosatrici inclinate® VDI

Open the catalog to page 1

The VDI Inclined Slide Valve excels through a variety of innovative features. Its inclined blade forms an eye-shaped aperture with the asymmetrically tapered inner body. The wider the eye opens, the more material flows through, the further it closes, the more the material flow is reduced. The inner body consists of a self-supporting cast in SINT® engineering polymer composite. The blade is manufactured from carbon or stainless steel. The VDI Valve can be operated manually, electropneumatically or by gear motor. Function The VDI Inclined Slide Valve adds to the simple function of interception...

Open the catalog to page 2

VDI 0150.. -CMG0200 I. VDI 0250.. -CMG0300 I. VDI 0300.. -CMG0300 I. Hand Wheel Coupling Kombination mit Handrad Accouplement de la commande manuelle Abbinamenti del comando manuale Gear Motor Coupling Kombination mit Getriebemotor Accouplement avec motoréducteur Abbinamenti di attuatore con motoriduttore Under Light Load Unter Leichtlast Sous faible charge Sotto piccolo battente Under Heavy Load Unter Schwerlast Sous forte charge Sotto grande battente VDI 0150.. VDI 0250.. VDI 0300.. CRG010A200 I. CRG010A300 I. CRG010A300 I. CRG010B200 I. CRG010B250 I. CRG010B300 I. LSM6* • Aluminium Body •...

Open the catalog to page 3

WAM S.p.A. Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com WAM. 3030 11/06 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre production - Altra produzione WAM. 00515 WAM. 01050 WAM. 03060 WAM. 040 WAM. 03505 TOR. 330 WAM. 03010 UNI EN ISO 9001-2000Certified Company
