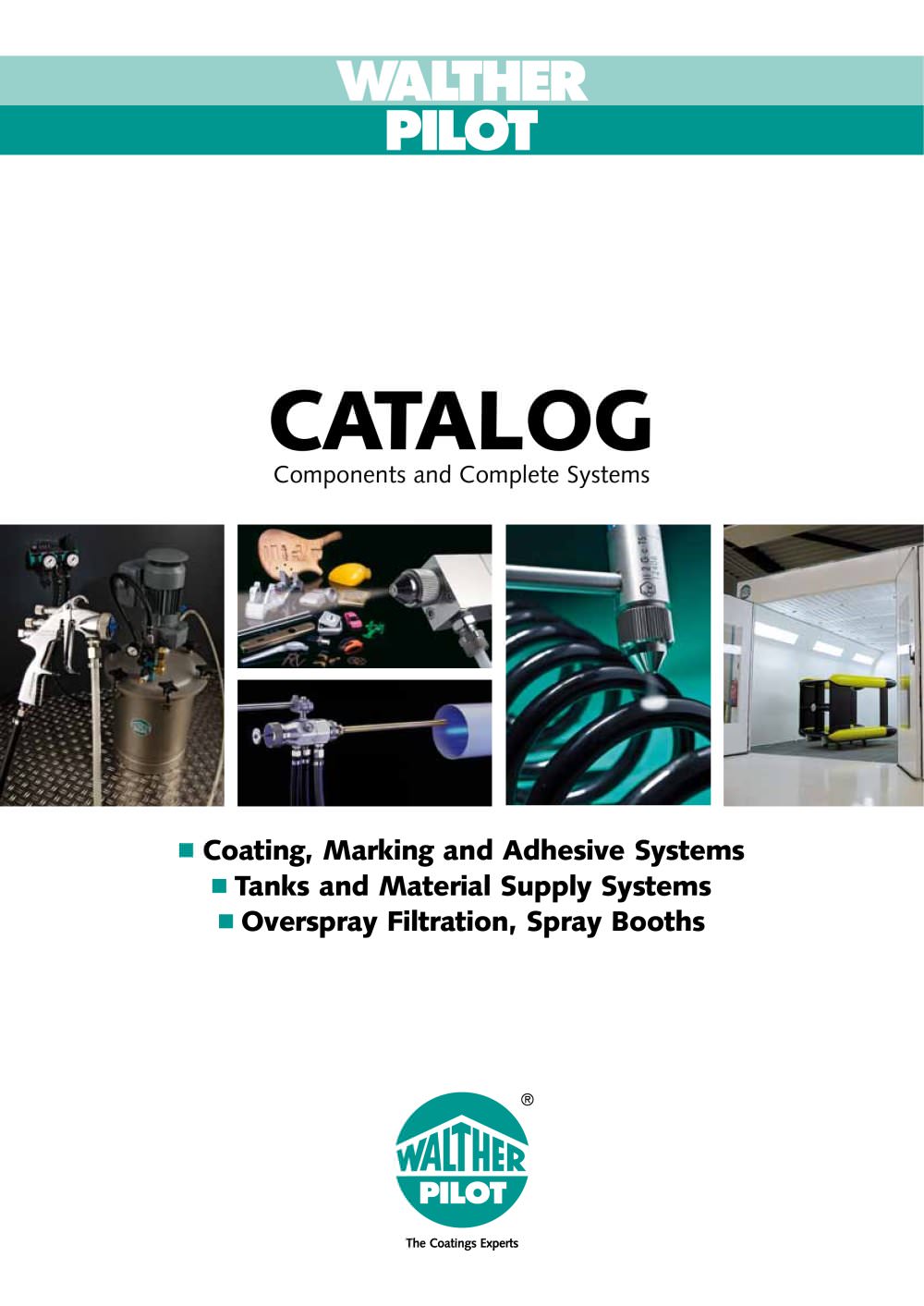

PILOT CATALG Components and Complete Systems Coating, Marking and Adhesive Systems n Tanks and Material Supply Systems n Qverspray Filtration, Spray Booths The Coatings Experts

System Solutions for the Complte Spraying Process Walther Pilot is an expert in all aspects of spraying, Spray guns for manual or automatic op蕩ration Material supply using pressure tanks or pumps Օ Control of the spraying process using pneumatic or electronic control units Mountings, mounting plates, etc. for lifting devices, robots, stationary fittings Օ Transport of parts to the spraying facility Overspray filtration systems or special housings for automatic spray guns Օ Drying systems Spray guns for all jobs Pressure tanks and agitators in various sizes and models Automatic spray guns...

Spray guns/coating systems Manual spray guns for paints, lacquers, etc. Spcial spray guns Spraying and coating systems Automatic spray guns 4 9 10 12 Contents Walther Pilot's high quality tools and complete systems enable you to work comfortably and safely, while protecting the environment. Marking systems Automatic spray guns for marking Marking accessories Non-contact marking systems 18 19 21 Adhesive application systems Spray guns for solvent-based adhesives 22 Spray guns for dispersion adhesives 24 Extrusion spray guns 25 Adhesive spraying systems 26 Spray gun accessories Nozzle extensions 28...

Manual Spray Guns PILoT Premium Top-class spray guns for excellent surface finish results. The innovative HVLPPlus Nozzle-Air Cap Technology was designed especially for these spray guns (and also for the automatic spray gun PILOT WA 700). HVLPPlus combines the advantages of HVLP and conventional atomization: optimum results are achieved and material is saved at the same time. This makes the PILOT Premium a unique spray gun. Pressure ranges HVLPPlus- Air Cap 65 % HVLP-Air Cap IA C I- bar rv © max. The innovative HVLPPlus Nozzle Air Cap System (blue air cap) ensures high material savings and an...

0 3 0 5 0 8 Manual Spray Guns -4-> in >y in PILOT Maxi Spray gun for the finest surface finish results. All wetted parts: stainless steel. Water-borne coatings and aggressive media can be sprayed without any problems. Large selection of nozzle sizes. The PTFE-coated gun body ensures easy cleaning. The transfer efficiency of the HVLP and medium-pressure models is more than 70%. Weight: 440 g Օ Material pressure: max. 8 bar Atomizing pressure: depends on model Model versions: Օ HVLP spray gun: PILOT Maxi-ND Gravity-feed cup, 450 ccm_ Part No. V 11 63 □ 04 □ □ 3 _3 Material connection 4 Suspended...

Manual Spray Guns PILOT Trend Good value spray gun for all everyday paint jobs. Best surface finish results with extremely prcise WALTHER PILOT air cap technology. Nozzle and needle: stainless steel. Ergonomic design with sturdy nickel-plated highly compressed aluminum body. The economical medium-pressure model ensures a particularly high transfer efficiency. With standard plastic gravity-feed cup, 600 cc. Weight: 438 g 镕 Material pressure: max. 8 bar Atomizing pressure: according to model Model: Օ Standard spray gun: PILOT Trend Plastic gravity-feed cup, 600 cc Part No. V 10 60 □ 03_1 □ □...

Manual Spray Guns PILOT XIII Robust heavy-duty spray gun for all everyday paint jobs. All wetted parts: stainless steel. Water-borne coatings and aggressive media can be sprayed without any problems. Large selection of noz-zle sizes. Gun body: highly compressed aluminum. The front body is made entirely of stainless steel. Weight: 760 g Օ Material pressure: max. 8 bar Atomizing pressure: according to model Model: Part No. Օ HVLP Gun: PILOT XIII-ND Plastic gravity-feed cup, 600 cc Pressurized gravity-feed cup, 450 cc 6 Material connection 2 Suspended-pressure-feed cup, 800 cc _8 Standard spray...

Manual Spray Guns PILOT IV - The Classic Attractive spray gun in a nostalgie design with a wooden handle and plastic gravity-feed cup, 600 cc (optionally with aluminum cup, 450 cc). Light alloy body. Also available with paint feed pipe (see p. 35). Weight: 630 g Օ Material pressure: max. 8 bar Atomizing pressure: max. 8 bar Part No. V 11 401 02 □ 0 □ 5 0 8 1 0 1 2 1 5 1 8 2 0 2 5 3 0 3 5 □ □ 3 Wide-to-round-jet nozzle insert 0.5 mm 0 Wide-to-round-jet nozzle insert 0.8 mm 0 Wide-to-round-jet nozzle insert 1.0 mm 0 Wide-to-round-jet nozzle insert 1.2 mm 0 Wide-to-round-jet nozzle insert 1.5...

PILOT Premium AR Spcial Application Spray Guns Model Part No. PILOT Premium AR Spray gun with a spcial air cap designed for abrasive media such as ceramics, enamel or engobes Available nozzle sizes: 1.0 / 1.5 / 1.8 / 2.0 / 2.5 / 3.0 mm 0 Plastic gravity-feed cup, 600 cc Material connection V 10 731 04 . V 10 732 04 . 3 3 PILOT Twin Spray gun for low-viscosity materials such as mould separating agents Available nozzle sizes: 0.2 / 0.3 / 0.5 / 0.8 / 1.0 / 1.2 / 1.5 mm 0 V 11 531 00 . . 3 PILOT IV EM Spray gun for spraying viscous material, 450 cc gravity-feed cup, aluminum or plastic Round-jet...

Spray Coating Systems with Material Pressure Tanks Stationary Spray Coating Systems with Pressure Tanks Solvent-based materials: Galvanized material pressure tank, sizes available: 4, 8, 12, 22*, 24, 45*, 60 liter - more sizes available on request Օ Choice of agitator options: manual, air-powered or electric. We are happy to advise you about the best agitator for your requirements. Available air-atomizing spray guns: Standard, medium-pressure, HVLPPLus- or HVLP models. Օ Material filter with strainer 100 mesh. Strainer insets with 30, 50, and 200 mesh are also available Filter/pressure regulator...

System for Low-Viscosity Spraying Media _ 4-» - (/) >, M) * E Type TR-2 Separating Agent Spraying System Consisting of: Lightweight LCB 2 pressure tank, capacity 2 liters, with twin fitting and safety valve Օ PILOT Twin spray gun with HVLP air cap technology PILOT Twin offers a choice of three diffrent spraying angles (round jet and angles of approx. 30° and 60°). Changing the nozzle insert or the air cap for this purpose is not necessary. Only the air distributor rings (included free of charge) need to be changed. That can be done in seconds without using tools. Hose package PU-Twin 5 m twin...
