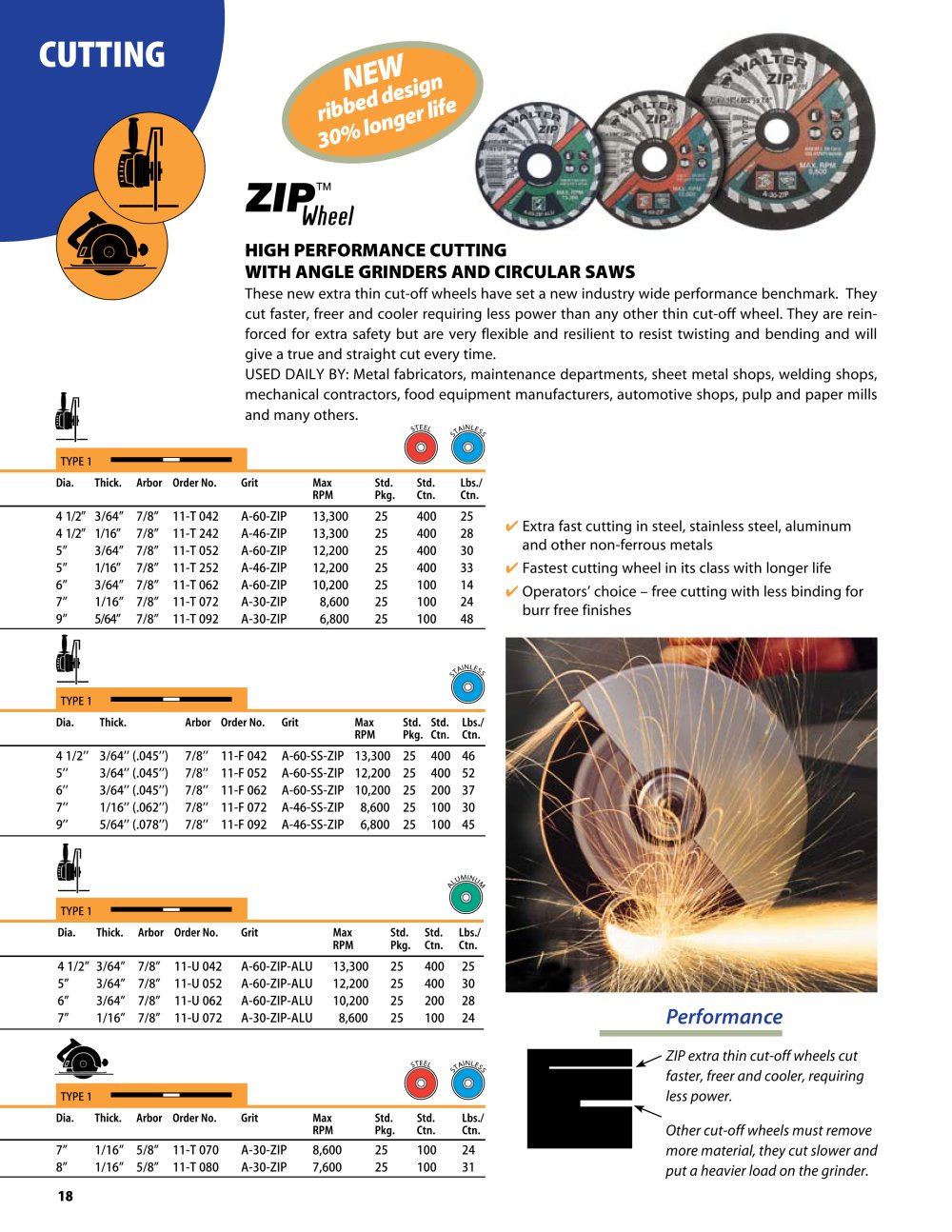

CUTTING

HIGH PERFORMANCE CUTTING

WITH ANGLE GRINDERS AND CIRCULAR SAWS

These new extra thin cut-off wheels have set a new industry wide performance benchmark. They cut faster, freer and cooler requiring less power than any other thin cut-off wheel. They are reinforced for extra safety but are very flexible and resilient to resist twisting and bending and will give a true and straight cut every time.

USED DAILY BY: Metal fabricators, maintenance departments, sheet metal shops, welding shops, mechanical contractors, food equipment manufacturers, automotive shops, pulp and paper mills and many others.

TYPE 1


Dia.	Thick.	Arbor	Order No.	Grit	Max	Std.	Std.	Lbs./
					RPM	Pkg.	Ctn.	Ctn.
4 1/2"	3/64"	7/8"	11-T 042	A-60-ZIP	13,300	25	400	25
4 1/2"	1/16"	7/8"	11-T 242	A-46-ZIP	13,300	25	400	28
5"	3/64"	7/8"	11-T 052	A-60-ZIP	12,200	25	400	30
5"	1/16"	7/8"	11-T 252	A-46-ZIP	12,200	25	400	33
6"	3/64"	7/8"	11-T 062	A-60-ZIP	10,200	25	100	14
7"	1/16"	7/8"	11-T 072	A-30-ZIP	8,600	25	100	24
9"	5/64"	7/8"	11-T 092	A-30-ZIP	6,800	25	100	48

✓ Extra fast cutting in steel, stainless steel, aluminum and other non-ferrous metals

✓ Fastest cutting wheel in its class with longer life

✓ Operators' choice - free cutting with less binding for burr free finishes

TYPE 1


Dia.	Thick.	Arbor	Order No.	Grit	Max	Std.	Std.	Lbs./
					RPM	Pkg. Ctn.		Ctn.
4 1/2''	3/64'' (.045'')	7/8''	11-F 042	A-60-SS-ZIP	13,300	25	400	46
5''	3/64'' (.045'')	7/8''	11-F052	A-60-SS-ZIP	12,200	25	400	52
6''	3/64'' (.045'')	7/8''	11-F 062	A-60-SS-ZIP	10,200	25	200	37
7''	1/16'' (.062'')	7/8''	11-F 072	A-46-SS-ZIP	8,600	25	100	30
9''	5/64'' (.078'')	7/8''	11-F 092	A-46-SS-ZIP	6,800	25	100	45

TYPE 1

Dia. Thick. Arbor Order No.

Grit

Max Std. Std. Lbs./ RPM Pkg. Ctn. Ctn.

4 1/2" 3/64" 7/8" 11-U 042 A-60-ZIP-ALU 13,300 25 400 25

5" 3/64" 7/8" 11-U 052 A-60-ZIP-ALU 12,200 25 400 30

6" 3/64" 7/8" 11-U 062 A-60-ZIP-ALU 10,200 25 200 28

7" 1/16" 7/8" 11-U 072 A-30-ZIP-ALU 8,600 25 100 24

Performance

ZIP extra thin cut-off wheels cut faster, freer and cooler, requiring less power.

Other cut-off wheels must remove more material, they cut slower and put a heavier load on the grinder.

TYPE 1


Dia.	Thick.	Arbor	Order No.	Grit	Max	Std.	Std.	Lbs./
					RPM	Pkg.	Ctn.	Ctn.
7"	1/16"	5/8"	11-T 070	A-30-ZIP	8,600	25	100	24
8"	1/16"	5/8"	11-T 080	A-30-ZIP	7,600	25	100	31
