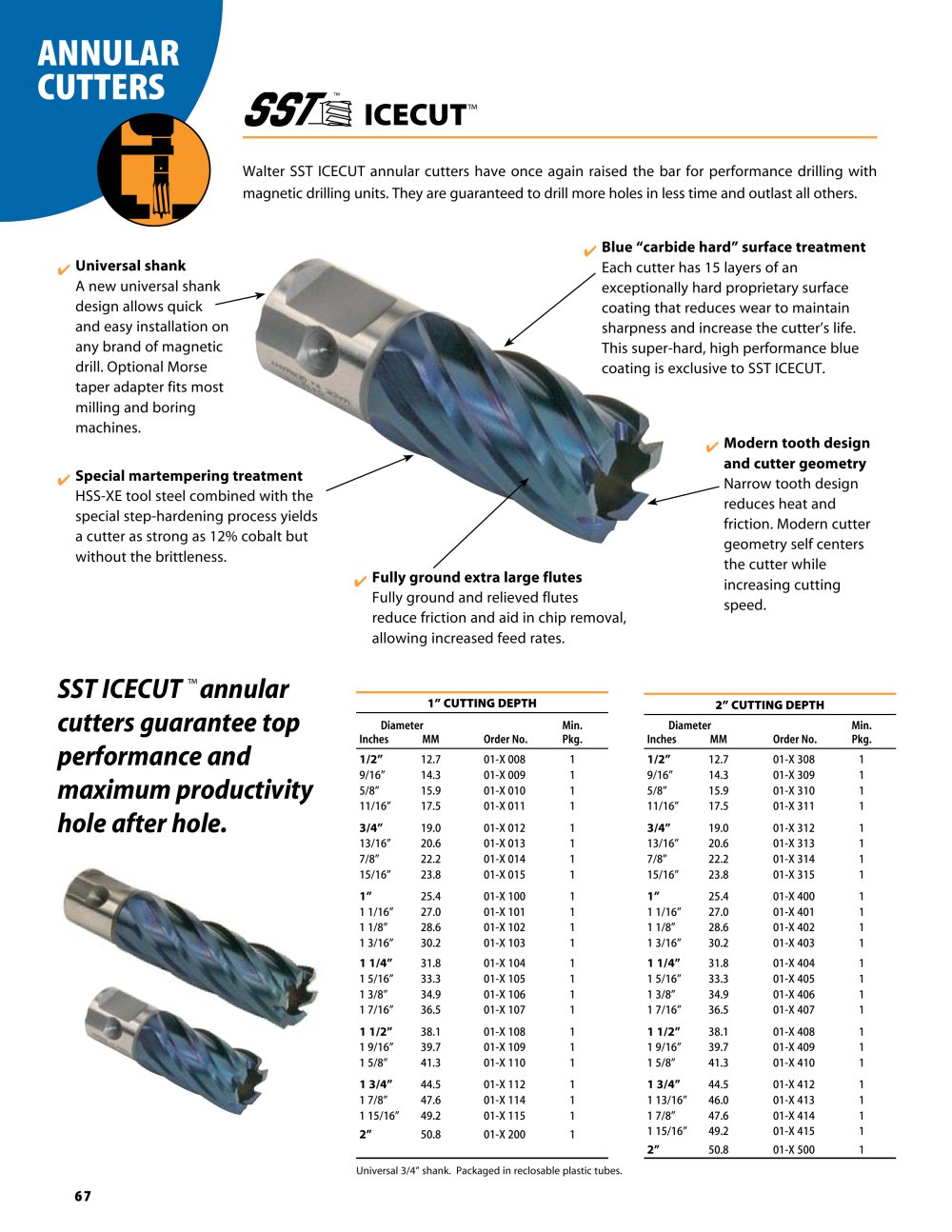

| | | ICECUT™ | | |
| | | |
| | | Walter SST ICECUT annular cutters have once again raised the bar for performance drilling with magnetic drilling units. They are guaranteed to drill more holes in less time and outlast all others. | | |
| | | |
| | | Blue "carbide hard" surface treatment Each cutter has 15 layers of an exceptionally hard proprietary surface coating that reduces wear to maintain sharpness and increase the cutter's life. This super-hard, high performance blue coating is exclusive to SST ICECUT. | | |
| | | Universal shank A new universal shank design allows quick and easy installation on any brand of magnetic drill. Optional Morse taper adapter fits most milling and boring machines manufacturer. Special martempering treatment HSS-XE tool steel combined with the special step-hardening process yields a cutter as strong as 12% cobalt but without the brittleness. | | |
| | | |
| | | Modern tooth design and cutter geometry Narrow tooth design reduces heat and friction. Modern cutter geometry self centers the cutter while increasing cutting speed. | | |
| | | |
| | | Fully ground extra large flutes Fully ground and relieved flutes reduce friction and aid in chip removal, allowing increased feed rates. | | |
| | | |
| | | |
| | | SST ICECUT ™ annular cutters guarantee top performance and maximum productivity hole after hole. | | |
| | | 1" CUTTING DEPTH | | |
| | | 2" CUTTING DEPTH | | |
| | | |
| | | |
| | | Diameter Inches MM | | Min. Pkg. | | Diameter Inches MM | | Min. Pkg. | | |
| | | Order No. | | | Order No. | | |
| | | | |
| | | |
| | | | | | | | | | | | | | 1/2" | 12.7 | 01-X 008 1 | 1/2" | 12.7 | 01-X 308 1 | | | | 9/16" | 14.3 | 01-X 009 1 | 9/16" | 14.3 | 01-X 309 1 | | | | 5/8" | 15.9 | 01-X 010 1 | 5/8" | 15.9 | 01-X 310 1 | | | | 11/16" | 17.5 | 01-X 011 1 | 11/16" | 17.5 | 01-X 311 1 | | | | 3/4" | 19.0 | 01-X 012 1 | 3/4" | 19.0 | 01-X 312 1 | | | | 13/16" | 20.6 | 01-X 013 1 | 13/16" | 20.6 | 01-X 313 1 | | | | 7/8" | 22.2 | 01-X 014 1 | 7/8" | 22.2 | 01-X 314 1 | | | | 15/16" | 23.8 | 01-X 015 1 | 15/16" | 23.8 | 01-X 315 1 | | | | 1" | 25.4 | 01-X 100 1 | 1" | 25.4 | 01-X 400 1 | | | | 1 1/16" | 27.0 | 01-X 101 1 | 1 1/16" | 27.0 | 01-X 401 1 | | | | 1 1/8" | 28.6 | 01-X 102 1 | 1 1/8" | 28.6 | 01-X 402 1 | | | | 1 3/16" | 30.2 | 01-X 103 1 | 1 3/16" | 30.2 | 01-X 403 1 | | | | 1 1/4" | 31.8 | 01-X 104 1 | 1 1/4" | 31.8 | 01-X 404 1 | | | | 1 5/16" | 33.3 | 01-X 105 1 | 1 5/16" | 33.3 | 01-X 405 1 | | | | 1 3/8" | 34.9 | 01-X 106 1 | 1 3/8" | 34.9 | 01-X 406 1 | | | | 1 7/16" | 36.5 | 01-X 107 1 | 1 7/16" | 36.5 | 01-X 407 1 | | | | 1 1/2" | 38.1 | 01-X 108 1 | 1 1/2" | 38.1 | 01-X 408 1 | | | | 1 9/16" | 39.7 | 01-X 109 1 | 1 9/16" | 39.7 | 01-X 409 1 | | | | 1 5/8" | 41.3 | 01-X 110 1 | 1 5/8" | 41.3 | 01-X 410 1 | | | | 1 3/4" | 44.5 | 01-X 112 1 | 1 3/4" | 44.5 | 01-X 412 1 | | | | 1 7/8" | 47.6 | 01-X 114 1 | 1 13/16" | 46.0 | 01-X 413 1 | | | | 1 15/16" | 49.2 | 01-X 115 1 | 1 7/8" | 47.6 | 01-X 414 1 | | | | 2" | 50.8 | 01-X 200 1 | 1 15/16" | 49.2 | 01-X 415 1 | | | | | | | 2" | 50.8 | 01-X 500 1 | | | | | | | | | | | | | |
| | | |
| | | |
| | | | | |
| | | |
| | | 67 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
