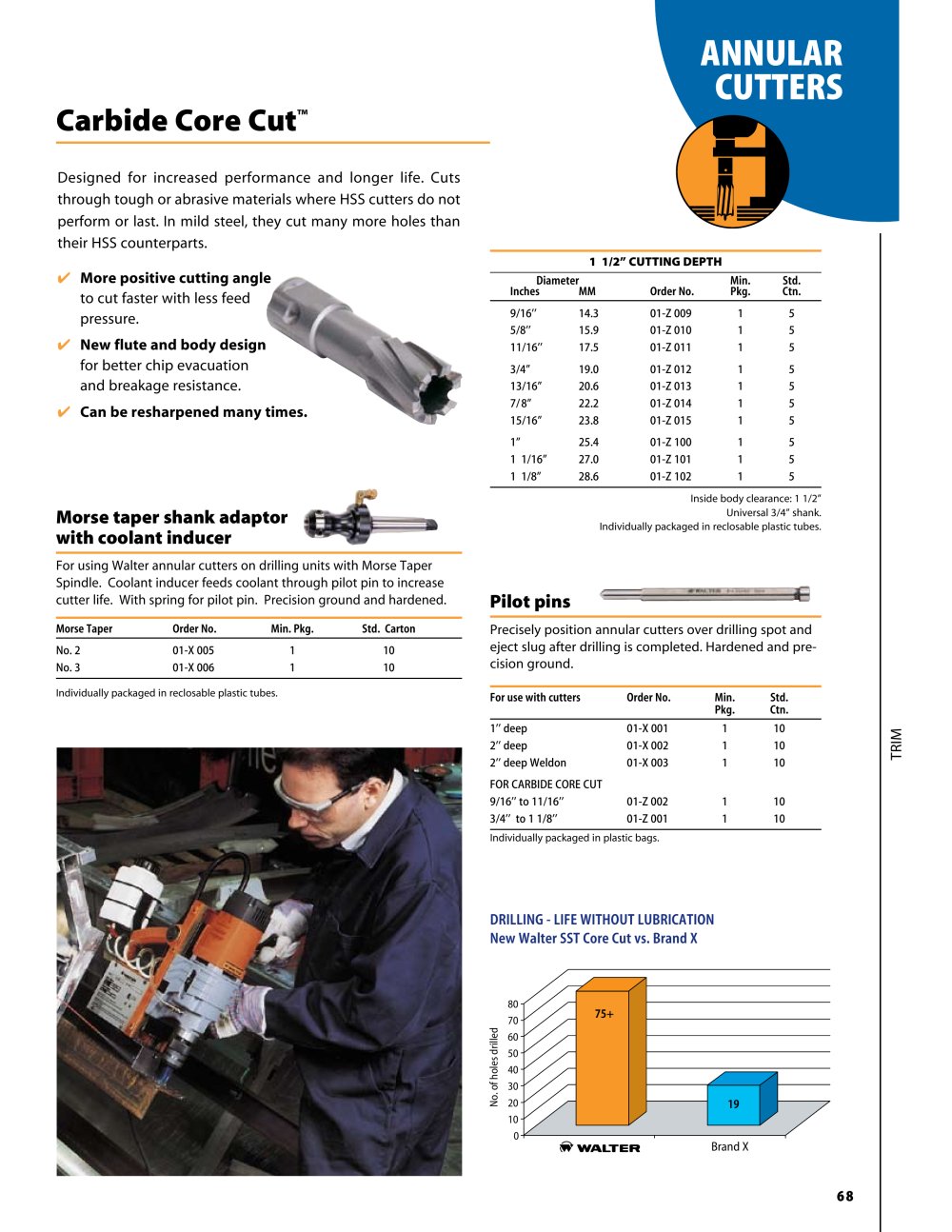

ANNULAR CUTTERS

Carbide Core Cut™

Designed for increased performance and longer life. Cuts through tough or abrasive materials where HSS cutters do not perform or last. In mild steel, they cut many more holes than their HSS counterparts.

✓ More positive cutting angle ^g^-^

to cut faster with less feed pressure.

✓ New flute and body design

for better chip evacuation and breakage resistance.

✓ Can be resharpened many times.


	1	1/2" CUTTING DEPTH
Diameter			Min.	Std.
Inches	MM	Order No.	Pkg.	Ctn.
9/16"	14.3	01-Z 009		5
5/8''	15.9	01-Z 010		5
11/16''	17.5	01-Z 011		5
3/4"	19.0	01-Z 012		5
13/16"	20.6	01-Z 013		5
7/8"	22.2	01-Z 014		5
15/16"	23.8	01-Z 015		5
1"	25.4	01-Z 100		5
1 1/16"	27.0	01-Z 101		5
1 1/8"	28.6	01-Z 102		5

Inside body clearance: 1 1/2" Universal 3/4" shank. Individually packaged in reclosable plastic tubes.

Morse taper shank adaptor with coolant inducer

For using Walter annular cutters on drilling units with Morse Taper Spindle. Coolant inducer feeds coolant through pilot pin to increase cutter life. With spring for pilot pin. Precision ground and hardened.

Pilot pins

Order No.

Min. Pkg.

Std. Carton

Morse Taper

Precisely position annular cutters over drilling spot and eject slug after drilling is completed. Hardened and precision ground.

No. 2 No. 3

01-X005 01-X006

10 10


For use with cutters	Order No.	Min.	Std.
		Pkg.	Ctn.
1'' deep	01-X 001	1	10
2'' deep	01-X 002	1	10
2'' deep Weldon	01-X 003	1	10
FOR CARBIDE CORE CUT
9/16'' to 11/16''	01-Z 002	1	10
3/4'' to 1 1/8''	01-Z 001	1	10

Individually packaged in reclosable plastic tubes.

ce I—

Individually packaged in plastic bags.

DRILLING - LIFE WITHOUT LUBRICATION New Walter SST Core Cut vs. Brand X

80 70 60 50

40 30

20 10

^ WALTER

Brand X
