Text version of the page

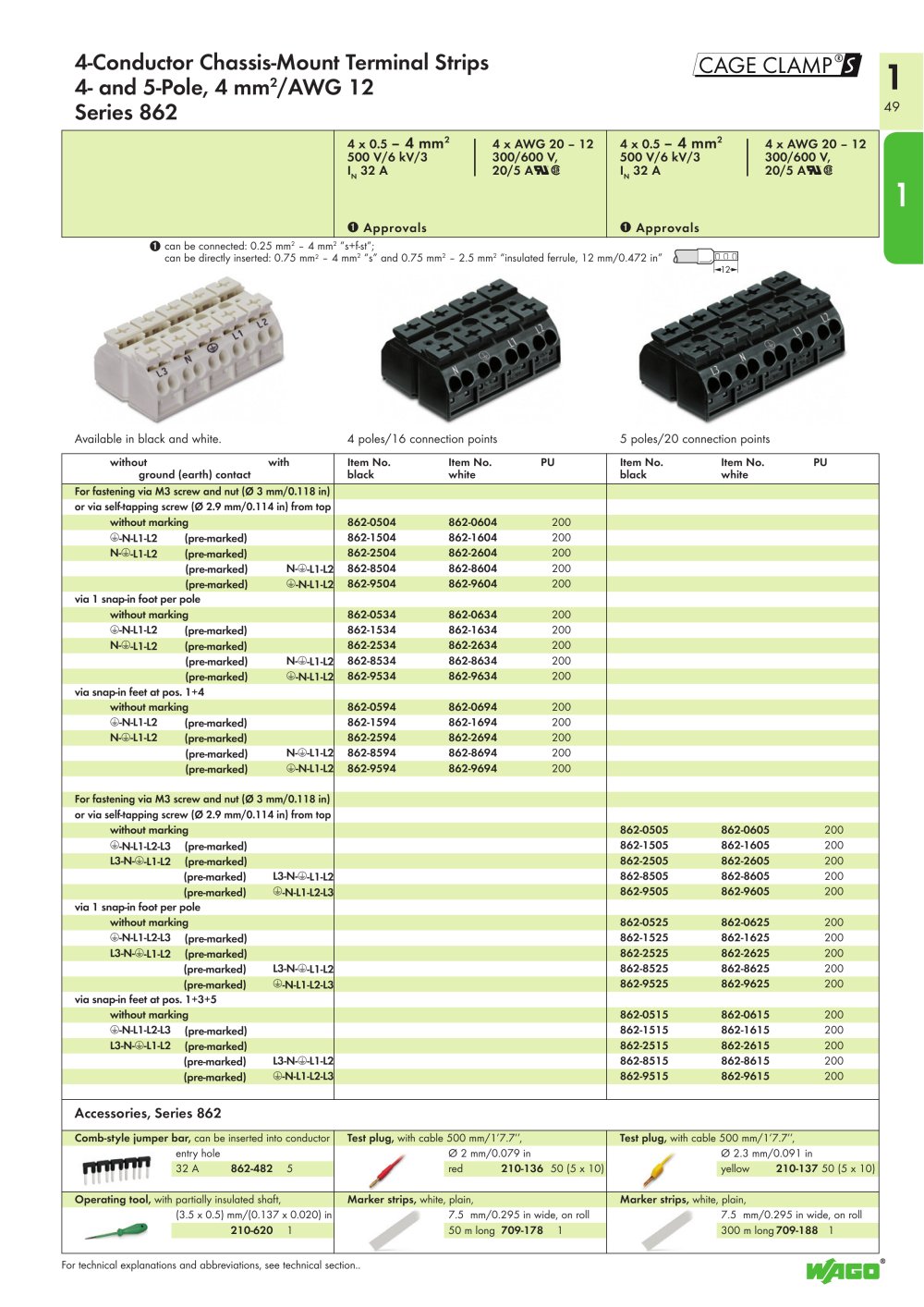

1 49 S 1 12 For technical explanations and abbreviations, see technical section.. Available in black and white. 4 poles/16 connection points 5 poles/20 connection points 4-Conductor Chassis-Mount Terminal Strips 4- and 5-Pole, 4 mm2/AWG 12 Series 862 4 x 0.5 – 4 mm2 4 x AWG 20 – 12 500 V/6 kV/3 300/600 V, IN 32 A 20/5 AU2 4 x 0.5 – 4 mm2 4 x AWG 20 – 12 500 V/6 kV/3 300/600 V, IN 32 A 20/5 AU2 Item No. Item No. PU black white without with ground (earth) contact For fastening via M3 screw and nut (Ř 3 mm/0.118 in) or via self-tapping screw (Ř 2.9 mm/0.114 in) from top without marking 3-N-L1-L2 (pre-marked) N-3-L1-L2 (pre-marked) (pre-marked) N-3-L1-L2 (pre-marked) 3-N-L1-L2 via 1 snap-in foot per pole without marking 3-N-L1-L2 (pre-marked) N-3-L1-L2 (pre-marked) (pre-marked) N-3-L1-L2 (pre-marked) 3-N-L1-L2 via snap-in feet at pos. 1+4 without marking 3-N-L1-L2 (pre-marked) N-3-L1-L2 (pre-marked) (pre-marked) N-3-L1-L2 (pre-marked) 3-N-L1-L2 For fastening via M3 screw and nut (Ř 3 mm/0.118 in) or via self-tapping screw (Ř 2.9 mm/0.114 in) from top without marking 3-N-L1-L2-L3 (pre-marked) L3-N-3-L1-L2 (pre-marked) (pre-marked) L3-N-3-L1-L2 (pre-marked) 3-N-L1-L2-L3 via 1 snap-in foot per pole without marking 3-N-L1-L2-L3 (pre-marked) L3-N-3-L1-L2 (pre-marked) (pre-marked) L3-N-3-L1-L2 (pre-marked) 3-N-L1-L2-L3 via snap-in feet at pos. 1+3+5 without marking 3-N-L1-L2-L3 (pre-marked) L3-N-3-L1-L2 (pre-marked) (pre-marked) L3-N-3-L1-L2 (pre-marked) 3-N-L1-L2-L3 862-0504 862-0604 200 862-1504 862-1604 200 862-2504 862-2604 200 862-8504 862-8604 200 862-9504 862-9604 200 862-0534 862-0634 200 862-1534 862-1634 200 862-2534 862-2634 200 862-8534 862-8634 200 862-9534 862-9634 200 862-0594 862-0694 200 862-1594 862-1694 200 862-2594 862-2694 200 862-8594 862-8694 200 862-9594 862-9694 200 862-0505 862-0605 200 862-1505 862-1605 200 862-2505 862-2605 200 862-8505 862-8605 200 862-9505 862-9605 200 862-0525 862-0625 200 862-1525 862-1625 200 862-2525 862-2625 200 862-8525 862-8625 200 862-9525 862-9625 200 862-0515 862-0615 200 862-1515 862-1615 200 862-2515 862-2615 200 862-8515 862-8615 200 862-9515 862-9615 200 Accessories, Series 862 Test plug, with cable 500 mm/1’7.7’’, Ř 2 mm/0.079 in red 210-136 50 (5 x 10) Marker strips, white, plain, 7.5 mm/0.295 in wide, on roll 50 m long 709-178 1 Test plug, with cable 500 mm/1’7.7’’, Ř 2.3 mm/0.091 in yellow 210-137 50 (5 x 10) Marker strips, white, plain, 7.5 mm/0.295 in wide, on roll 300 m long 709-188 1 Comb-style jumper bar, can be inserted into conductor entry hole 32 A 862-482 5 Operating tool, with partially insulated shaft, (3.5 x 0.5) mm/(0.137 x 0.020) in 210-620 1 Item No. Item No. PU black white can be connected: 0.25 mm2 – 4 mm2 ”s+f-st”; can be directly inserted: 0.75 mm2 – 4 mm2 “s” and 0.75 mm2 – 2.5 mm2 “insulated ferrule, 12 mm/0.472 in” Approvals Approvals
