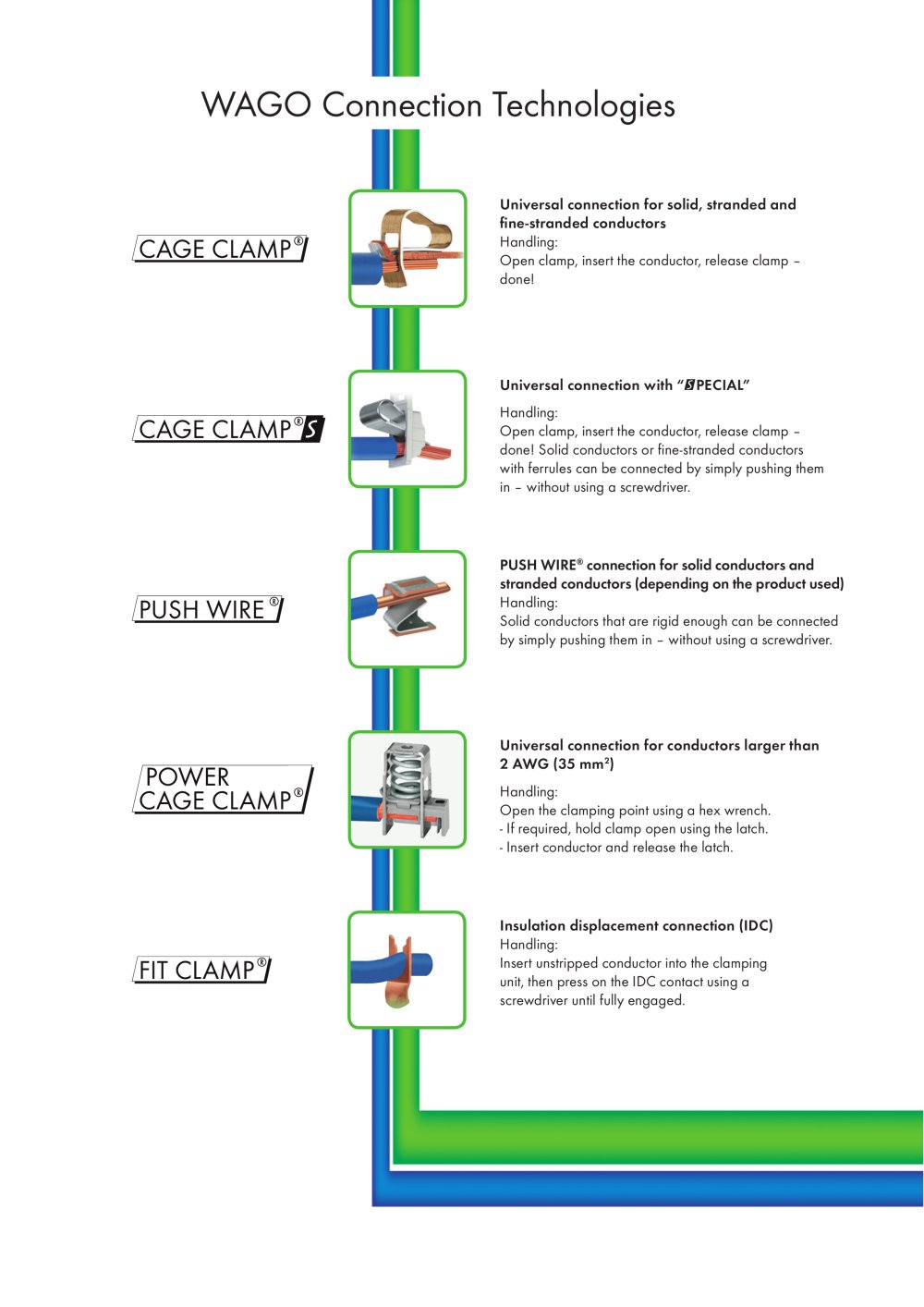

S 1 2 WAGO Connection Technologies Universal connection for solid, stranded and fi ne-stranded conductors Handling: Open clamp, insert the conductor, release clamp – done! Universal connection with “@PECIAL” Handling: Open clamp, insert the conductor, release clamp – done! Solid conductors or fi ne-stranded conductors with ferrules can be connected by simply pushing them in – without using a screwdriver. PUSH WIRE® connection for solid conductors and stranded conductors (depending on the product used) Handling: Solid conductors that are rigid enough can be connected by simply pushing them in – without using a screwdriver. Universal connection for conductors larger than 2 AWG (35 mm2) Handling: Open the clamping point using a hex wrench. - If required, hold clamp open using the latch. - Insert conductor and release the latch. Insulation displacement connection (IDC) Handling: Insert unstripped conductor into the clamping unit, then press on the IDC contact using a screwdriver until fully engaged.
