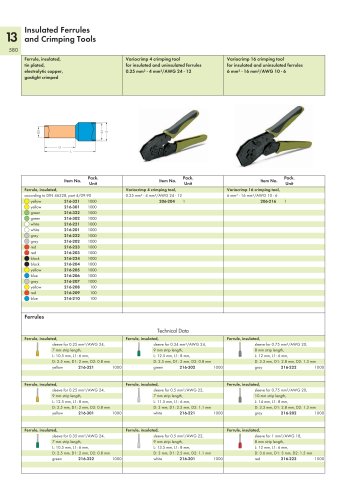

Rail-Mounted Terminal Block Systems (2012/2013 Vol.1) - 582 / 675 Pages

13

580

Insulated Ferrules

and Crimping Tools

Ferrule, insulated,

tin plated,

electrolytic copper,

gastight crimped

Variocrimp 4 crimping tool

for insulated and uninsulated ferrules

0.25 mm2-4mm2/AWG24- 12

Variocrimp 16 crimping tool

for insulated and uninsulated ferrules

6mm2- 16mm2/AWG 10-6

Item No. I?0.^

Unit

Item No. I?0.^

Unit

Item No. 'I'?''*

Unit

Ferrule, insulated,

Variocrimp 4 crimping tool,

Variocrimp 16 crimping tool,

according to DIN 46228, part 4/09.90

0.25 mm2 - 4 mm2/AWG 24-12

6 mm2 - 16 mm2/AWG 10-6

O yellow 216-321 1000

206-204 1

206-216 1

O yellow 216-301 1000



# green 216-322 1000



O green 216-302 1000



O white 216-221 1000



O white 216-201 1000



#gray 216-222 1000



O gray 216-202 1000



# red 216-223 1000



O red 216-203 1000



# black 216-224 1000



% black 216-204 1000



O yellow 216-205 1000



# blue 216-206 1000



#gray 216-207 1000



O yellow 216-208 100



# red 216-209 100



O blue 216-210 100





Ferrules

Technical Data

Ferrule, insulated,

Ferrule, insulated,

Ferrule, insulated,

sleeve for 0.25 mm2/ A WG 24,

sleeve for 0.34 mm2/AWG 24,

sleeve for 0.75 mm2/AWG 20,

7 mm strip length,

L 9 mm strip length,

u 8 mm strip length,

L: 10.5 mm, LÍ : 6 mm,

1 L: 12.5 mm, LÍ: 8 mm,

L: 12 mm, LÍ : 6 mm,

D: 2.5 mm, Dl: 2 mm, D2: 0.8 mm

D: 2.5 mm, Dl: 2 mm, D2: 0.8 mm

D: 3.3 mm, Dl : 2.8 mm, D2: 1.3 mm

yellow 216-321 1000

green 216-302 1000

gray 216-222 1000




Ferrule, insulated,

Ferrule, insulated,

Ferrule, insulated,

sleeve for 0.25 mm2/ A WG 24,

sleeve for 0.5 mm2/AWG 22,

sleeve for 0.75 mm2/AWG 20,

9 mm strip length,

7 mm strip length,

u 10 mm strip length,

L: 12.5 mm, LÍ: 8 mm,

L: 1 1.5 mm, LÍ : 6 mm,

L: 14 mm, LÍ : 8 mm,

D: 2.5 mm, Dl: 2 mm, D2: 0.8 mm

D: 3 mm, D1: 2.5 mm, D2: 1.1 mm

D: 3.3 mm, Dl : 2.8 mm, D2: 1.3 mm

yellow 216-301 1000

white 216-221 1000

gray 216-202 1000




Ferrule, insulated,

Ferrule, insulated,

Ferrule, insulated,

sleeve for 0.35 mm2/A WG 24,

sleeve for 0.5 mm2/AWG 22,

sleeve for 1 mm2/AWG 1 8,

L 7 mm strip length,

9 mm strip length,

ÍL 8 mm strip length,

1 L: 1 0.5 mm, LÍ : 6 mm,

L: 1 3.5 mm, LÍ : 8 mm,

M L: 12 mm, LÍ : 6 mm,

D: 2.5 mm, Dl: 2 mm, D2: 0.8 mm

D: 3 mm, D1: 2.5 mm, D2: 1.1 mm

D: 3.6 mm, D1: 3 mm, D2: 1.5 mm

green 216-322 1000

white 216-201 1000

red 216-223 1000
