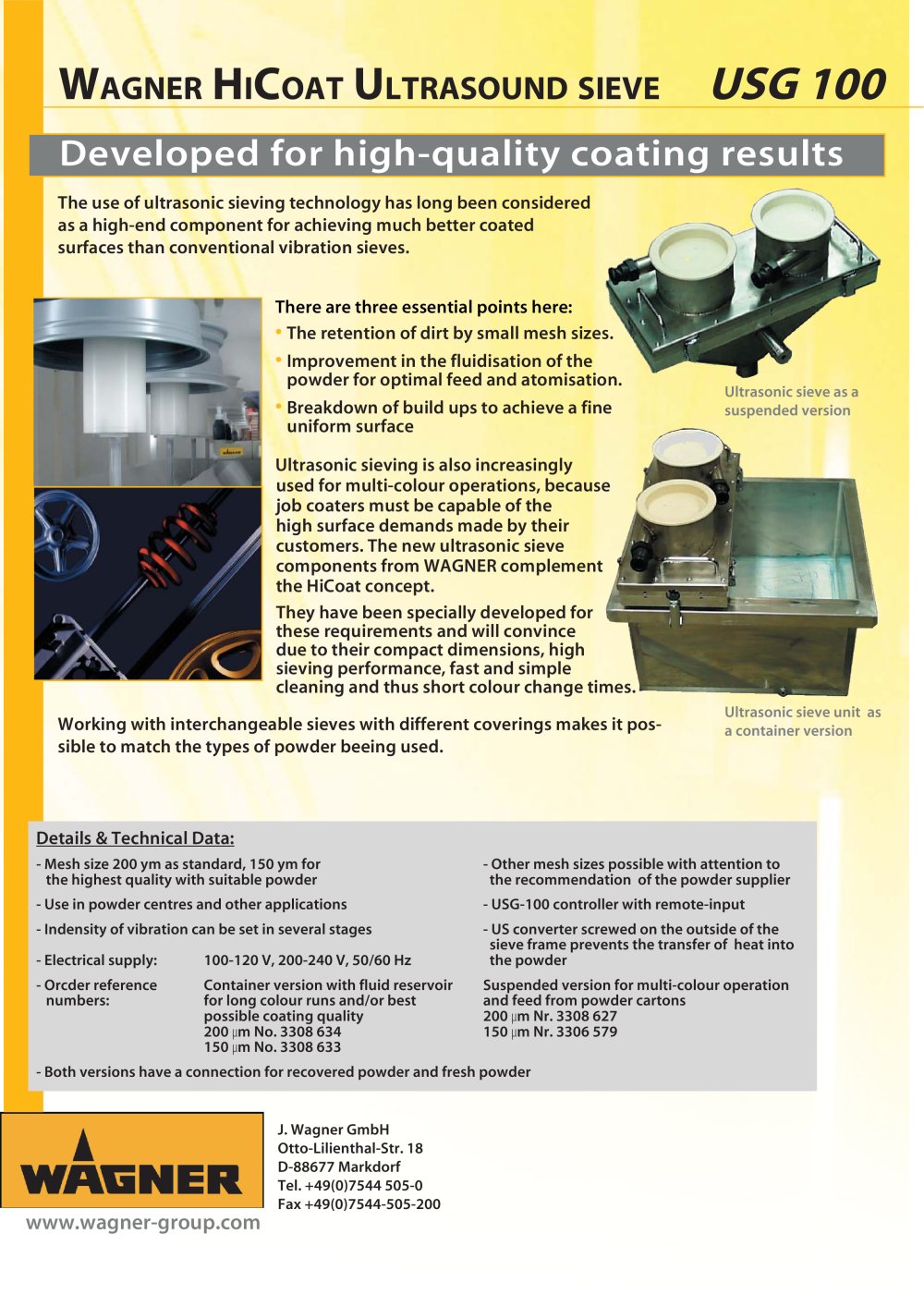

WAGNER HICOAT ULTRASOUND SIEVE USG 100 - 1 Pages

  1. P. 1

Catalogue excerpts

WAGNER HICOAT ULTRASOUND SIEVE USG 100 Developed for high-quality coating results The use of ultrasonic sieving technology has long been considered as a high-end component for achieving much better coated surfaces than conventional vibration sieves. There are three essential points here: • The retention of dirt by small mesh sizes. • Improvement in the fluidisation of the powder for optimal feed and atomisation. • Breakdown of build ups to achieve a fine uniform surface Ultrasonic sieving is also increasingly used for multi-colour operations, because job coaters must be capable of the high surface demands made by their customers. The new ultrasonic sieve components from WAGNER complement the HiCoat concept. They have been specially developed for these requirements and will convince due to their compact dimensions, high sieving performance, fast and simple cleaning and thus short colour change times. Working with interchangeable sieves with different coverings makes it possible to match the types of powder beeing used. www.wagner-group.com J. Wagner GmbH Otto-Lilienthal-Str. 18 D-88677 Markdorf Tel. +49(0)7544 505-0 Fax +49(0)7544-505-200 Details & Technical Data: - Mesh size 200 ym as standard, 150 ym for - Other mesh sizes possible with attention to the highest quality with suitable powder the recommendation of the powder supplier - Use in powder centres and other applications - USG-100 controller with remote-input - Indensity of vibration can be set in several stages - US converter screwed on the outside of the sieve frame prevents the transfer of heat into - Electrical supply: 100-120 V, 200-240 V, 50/60 Hz the powder - Orcder reference Container version with fluid reservoir Suspended version for multi-colour operation numbers: for long colour runs and/or best and feed from powder cartons possible coating quality 200 ìm Nr. 3308 627 200 ìm No. 3308 634 150 ìm Nr. 3306 579 150 ìm No. 3308 633 - Both versions have a connection for recovered powder and fresh powder Ultrasonic sieve unit as a container version Ultrasonic sieve as a suspended version

 Open the catalogue to page 1
