Catalogue excerpts

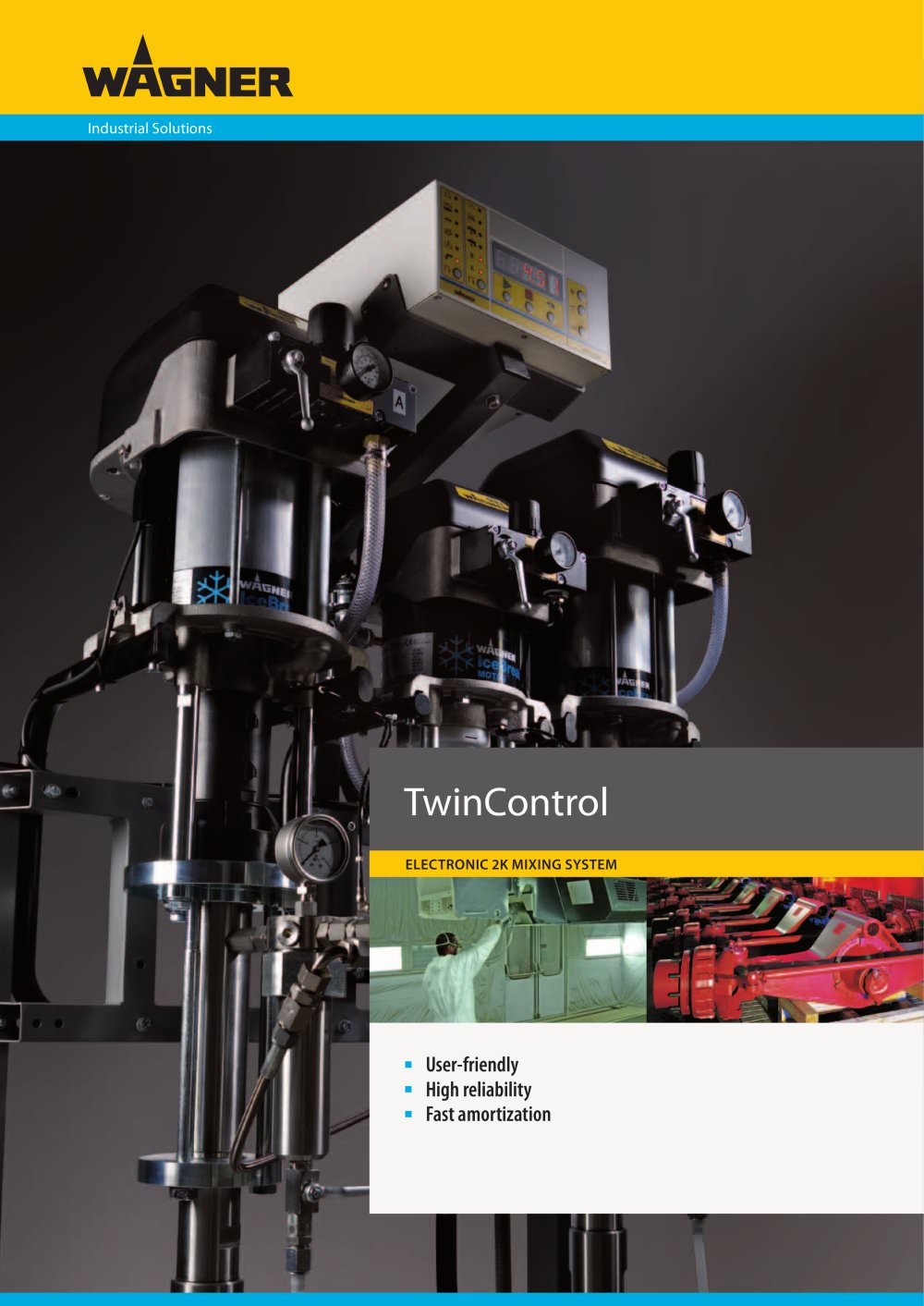

User-friendly High reliability Fast amortization TwinControl ELECTRONIC 2K MIXING SYSTEM Industrial Solutions

 Open the catalogue to page 1

1 2 3 4 5 6 7 A B 1 2 3 4 5 6 7 WAGNER: expertise in 2K With the TwinControl, WAGNER offers a unique entry solution for 2K applications. The portable TwinControl is an economical, compact and easy-to-use system for a wide range of demands, including high viscosity material applications and high delivery rates. The external Magnetic Stroke Meter is an effective alternative to gear flow meters and allows mixing ratios up to 20:1 with a high ± 2 % precision. As a result, TwinControl is the perfect solution to mixing and applying 2K materials in the wood, plastic and metal industries, especially for...

 Open the catalogue to page 2

FAST AMORTIZATION No reworks or rejects due to off-ratio spraying No mixed material left unused. Mix only what is required Reduction in time for manual cleaning and mixing procedures Increase in productivity Substantial reduction in paint waste and solvent consumption Reduced maintenance Material consumption monitoring TwinControl: the simple way to mix 2K Great advantages USER-FRIENDLY TwinControl will show you how easy it is to handle 2K materials. Connect the unit, set the main parameters, push the Start button - and start working! HIGH RELIABILITY TwinControl is perfect even for critical applications...

 Open the catalogue to page 3

1 2 3 4 5 6 7 Magnetic Stroke Meter BASE 7 1 2 * Low pressure versions are equipped with the EvoMotion 5-60 stainless steel pumps. The patented Magnetic Stroke Meter ensures high reliability even with high viscosity materials and high delivery rates. All the working parameters – mixing ratio, flushing procedures, pot life time – are intuitively adjustable using simple icon buttons on the control box. User-friendly and “language-neutral” control panel: only three buttons (Start – Stop – Flushing) are needed on a daily basis! Automatic flushing process: just press a button to clean the mixer, hose...

 Open the catalogue to page 4

FLUSHING HARDENER Pumped fluid (cm3) Piston position (mm) 5 4 6 3 Magnetic Stroke Meter In all piston pumps the delivered fluid is precisely metered by the piston motion. The patented Magnetic Stroke Meter detects the exact position of the piston and passes the information to the electronic box, which automatically calculates the instant flow rate value. GREAT ADVANTAGES Specifically developed by WAGNER for high precision flow metering. The stroke meter is mounted outside of the pump. No contact with the fluid, no wear during operation. High reliability, easy maintenance. Pump malfunctions can...

 Open the catalogue to page 5

A complete range to fit application needs TwinControl 48-110 / 48-110 on heavy duty trolley with paint heaters (optional) Main functions Real time mixing control with off-ratio alarm Pot-life monitoring with alarm Automatic flushing process Real time delivery rate display Mixing accuracy display Material consumption monitoring Pump diagnosis system: pre-alarm and alarm in case of pump malfunction Gun Flush Box connection optional All the working parameters can be set directly on the control panel. A 3-level password prevents unauthorized personnel from monitoring sensitive data. TwinControl 5-60...

 Open the catalogue to page 6

TwinControl selection chart Pump A Pump B Mixing ratio Max working pressure Flow rate at 1:1 mix ratio Flow rate at 4:1 mix ratio Flow rate at 10:1 mix ratio Flow rate at 20:1 mix ratio 5-60 5-60 0.1:1 - 20:1 40 bar 3.6 l/min 2.3 l/min 2.0 l/min 1.9 l/min 18-40 18-40 0.1:1 - 20:1 144 bar 2.4 l/min 1.5 l/min 1.3 l/min 1.2 l/min 28-40 28-40 0.1:1 - 20:1 224 bar 2.4 l/min 1.5 l/min 1.3 l/min 1.2 l/min 35-70 35-70 0.1:1 - 20:1 250 bar 4,2 l/min 2.6 l/min 2.3 l/min 2.2 l/min 35-150 35-70 0.1:1 - 20:1 270 bar 6.6 l/min 5.0 l/min 4.7 l/min 4.6 l/min 48-110 48-110 0.1:1 - 20:1 370 bar 6.6 l/min 4.1 l/min...

 Open the catalogue to page 7

Expertise in application The WAGNER gun program optimally combines economical coating with high surface quality. We offer manual and automatic guns for the Airless, AirCoat and air atomization processes, with or without electrostatic support or high speed rotary atomizers. Mixing for advanced users Besides the entry level TwinControl units, WAGNER also offers a wide range of advanced mixing and dosing systems. The FlexControl family offers additional features such as automatic color changes, recipe storage, peripheral equipment interfaces, and low and high pressure applications with a very high...

 Open the catalogue to page 8
