The super fast colour-changing concept
Modular construction of
the peripheral systems
The Wagner plastic booths
allow all current system components
to be combined. All
components are replaceable
and can be integrated 100 %
into the Wagner module concept.
floor manual coaters gun slots
SuperCube (2,500 mm)
outside inside
or and/or and/or or
belt fixed before after before after 1 2 3 4 5 6
The practical powder supply
for multi-colour operation
¡ Powder circulation operation
¡ 2 vibration tables for light/dark
operation, optional
¡ Simple operation through a control panel
¡ Option of integral powder extraction,
4,000 m3/h airflow
¡ Automatic fresh powder dosing with
level monitoring
Complementary system components
for the powder circuit
¡ Mono cyclone
¡ After-filter systems
¡ Sieving machines
¡ Powder centres
¡ Cleaning accessories
Complementary system components
for the powder application
¡ Control cabinets
¡ Automatic XL powder guns
¡ Manual powder units
¡ Movement technology
¡ Sensing and recording systems
Optimising production
The decision on which booth is ideal for which requirement depends of course on the
various individual requirements and processes. Thanks to the high level of flexibility and
variability of the Wagner systems, it is possible to adapt them to suit all customer requirements.
SuperCube plastic booth
Air extraction rate 12,000 m3/h - 20,000 m3/h
Work piece widths 600 mm, 800 mm, 1,000 mm
Work piece heights 1,400 mm - 2,200 mm
Bottom edge of work piece from 900 mm
Internal length 2,500 mm
Manual coating Before, after, before+after
Automatic slots 1-3 per side
Mono cyclone and after-filter 12,000 - 20,000 m3/h
Technical data

SuperCube
  1. P. 1

  2. P. 2

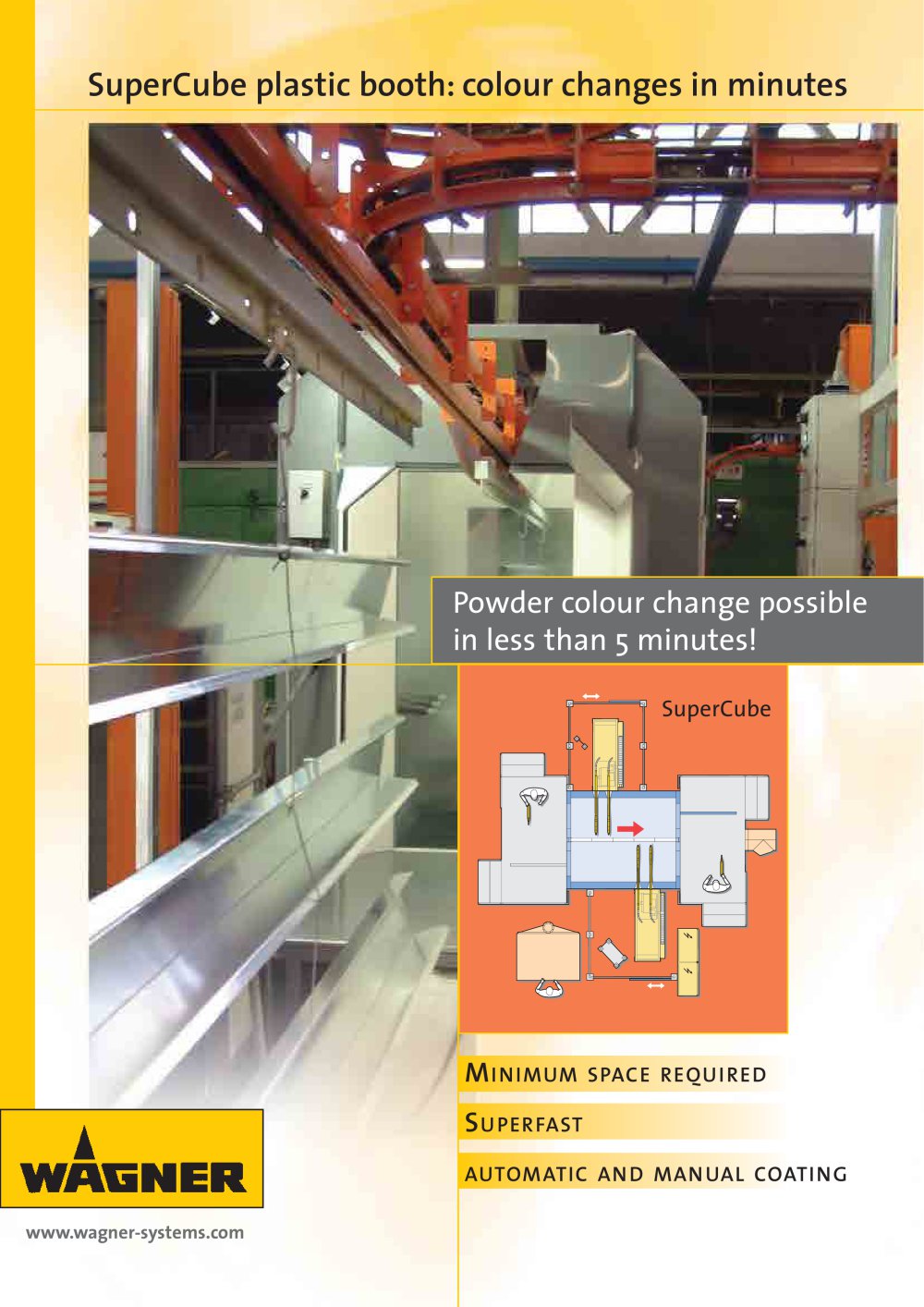

    SuperCube plastic booth: colour changes in minutesMINIMUM SPACE REQUIREDSUPERFASTFULLY AUTOMATIC AND MANUALwww.wagner-systems.comPowder colour change possiblein...
  3. P. 3

    Everything compact – the quickest cleaning times¡ Manual coating stand alsoavailable with reversiblestop (opening left or right)¡ Each...
  4. P. 4

    ¡ Optimises the productionrun by avoiding gradientsand minimising work-piecespacing¡ Space-saving pipe installationfor powder recoverySuperCube...
