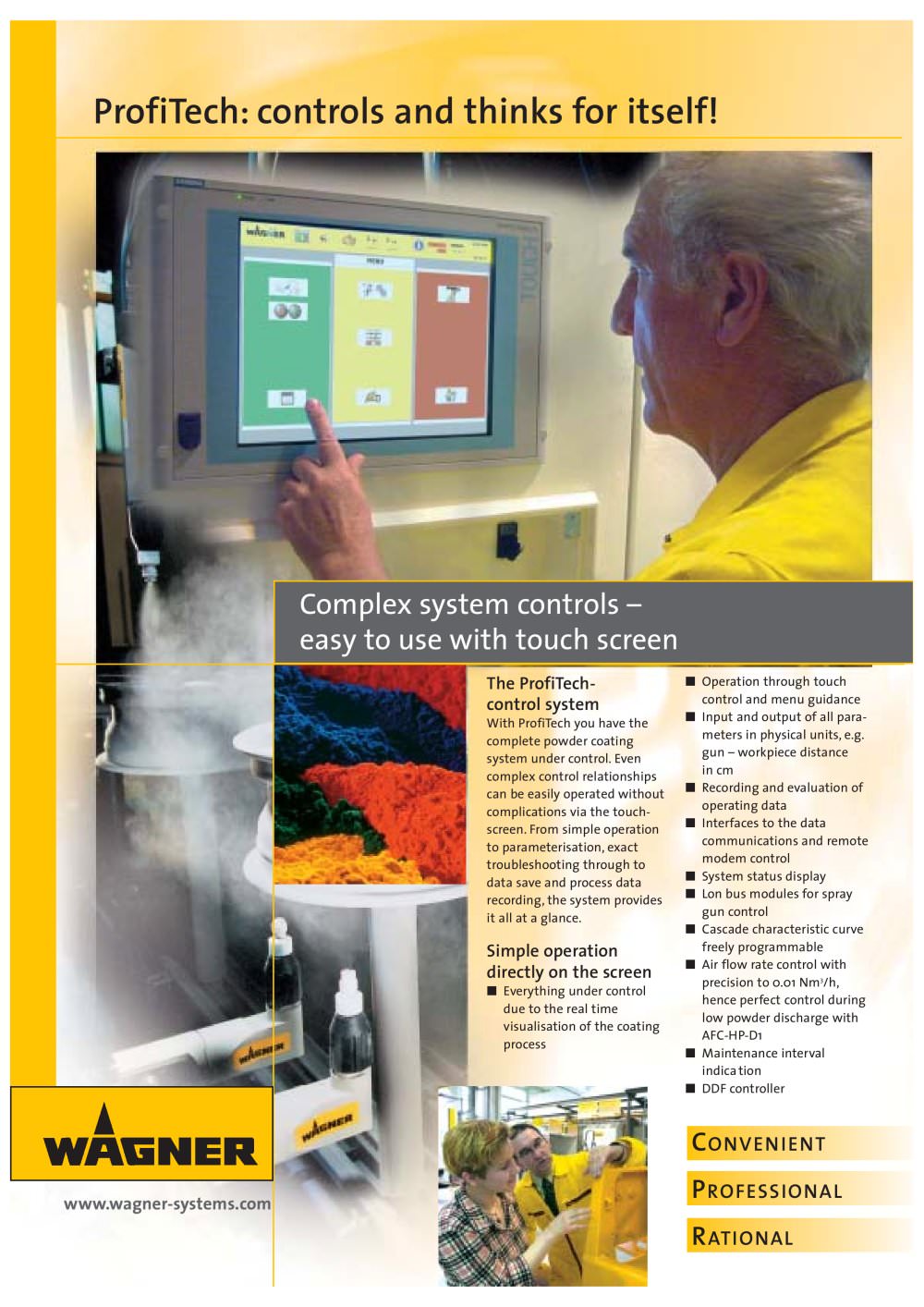

Complex system controls – easy to use with touch screen ProfiTech: controls and thinks for itself! The ProfiTechcontrol system With ProfiTech you have the complete powder coating system under control. Even complex control relationships can be easily operated without complications via the touchscreen. From simple operation to parameterisation, exact troubleshooting through to data save and process data recording, the system provides it all at a glance. Simple operation directly on the screen ¡ Everything under control due to the real time visualisation of the coating process CONVENIENT PROFESSIONAL RATIONAL ¡ Operation through touch control and menu guidance ¡ Input and output of all parameters in physical units, e.g. gun – workpiece distance in cm ¡ Recording and evaluation of operating data ¡ Interfaces to the data communications and remote modem control ¡ System status display ¡ Lon bus modules for spray gun control ¡ Cascade characteristic curve freely programmable ¡ Air flow rate control with precision to 0.01 Nm3/h, hence perfect control during low powder discharge with AFC-HP-D1 ¡ Maintenance interval indication ¡ DDF controller www.wagner-systems.com

Complex coating tasks: ASR automatic sine curve control The ASR automatically controls the gun spray paths. ASR ensures uniform object coating without smears under all conditions. 2-D and 3-D-axes control Program-dependent controls of complex movement sequences for complicated parts geometries. 4-D with rotation axis J.Wagner GmbH Otto-Lilienthal-Str. 18 D-88677 Markdorf Tel.: +49 7544 505-0 Fax: +49 7544 505-200 J.Wagner AG Industriestraße 22 CH-9450 Altstätten/SG Tel: +41 71 7572211 Fax: +41 71 7572222 www.wagner-systems.com ProfiTech: effective and user-friendly Printed in Germany • Subject...
