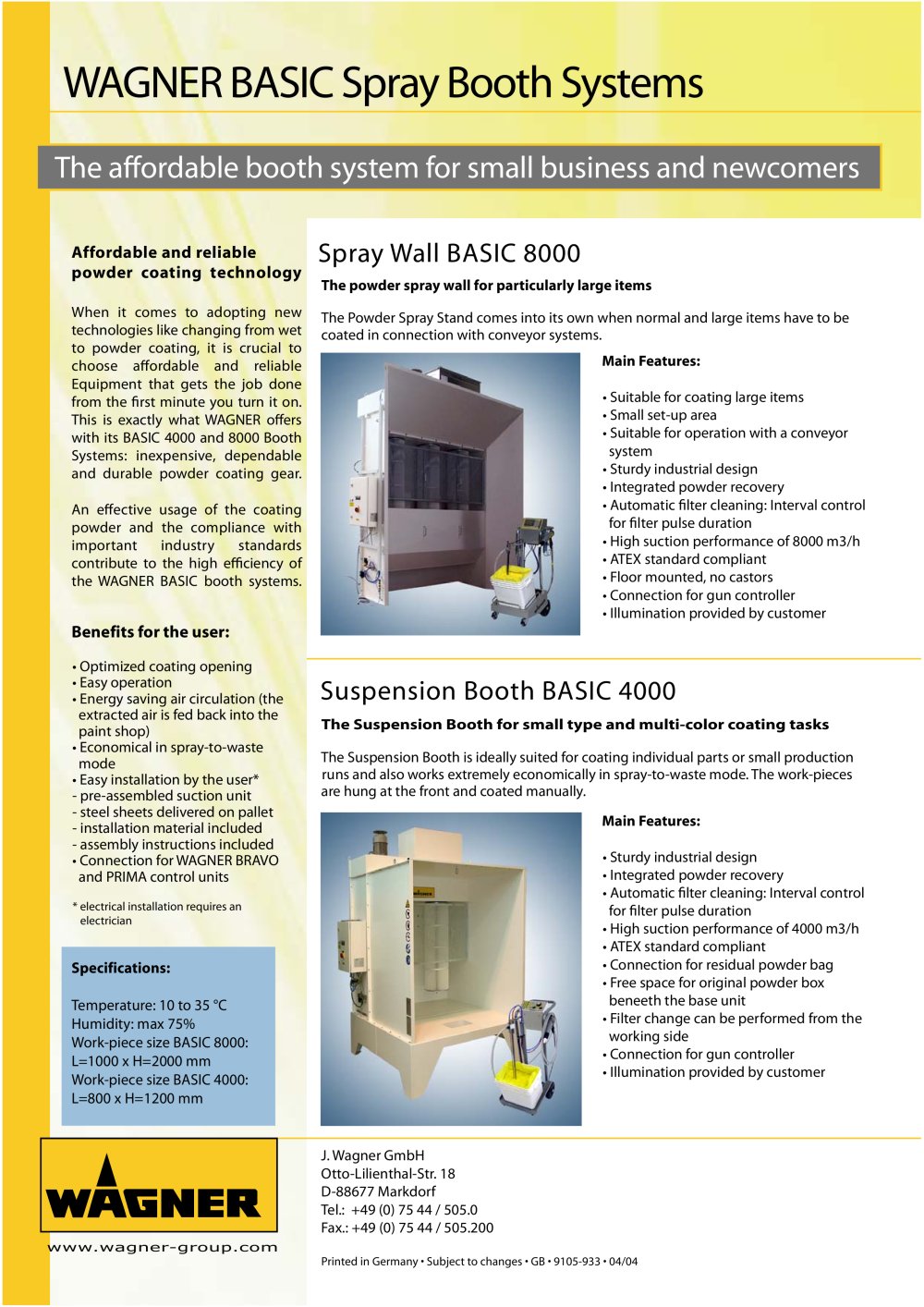

WAGNER BASIC Spray Booth Systems The affordable booth system for small business and newcomers

Affordable and reliablepowder coating technology

Spray Wall BASIC 8000

The powder spray wall for particularly large items >
When it comes to adopting new technologies like changing from wet to powder coating, it is crucial to choose aordable and reliable Equipment that gets the job done from the rst minute you turn it on. This is exactly what WAGNER oers with its BASIC 4000 and 8000 Booth Systems: inexpensive, dependable and durable powder coating gear.An eective usage of the coating powder and the compliance with important industry standards contribute to the high eciency of the WAGNER BASIC booth systems. The Powder Spray Stand comes into its own when normal and large items have to becoated in connection with conveyor systems. Main Features: >
Suitable for coating large itemsՕ Small set-up area
Suitable for operation with a conveyor
system
Օ Sturdy industrial design
Integrated powder recovery
Օ Automatic lter cleaning: Interval control
for lter pulse duration
High suction performance of 8000 m3/h
Օ ATEX standard compliant
Floor mounted, no castors
Օ Connection for gun controller
Illumination provided by customer

Benefits for the user:

Օ Optimized coating opening Easy operation
Օ Energy saving air circulation (the
extracted air is fed back into the
paint shop) Economical in spray-to-waste mode
Օ Easy installation by the user*
- pre-assembled suction unit- steel sheets delivered on pallet- installation material included- assembly instructions included
Connection for WAGNER BRAVO and PRIMA control units

Suspension Booth BASIC 4000

The Suspension Booth for small type and multi-color coating tasks The Suspension Booth is ideally suited for coating individual parts or small production runs and also works extremely economically in spray-to-waste mode. The work-piecesare hung at the front and coated manually. Main Features: >
Օ Sturdy industrial design
Integrated powder recovery
Օ Automatic lter cleaning: Interval control
for lter pulse duration
High suction performance of 4000 m3/h
Օ ATEX standard compliant
Connection for residual powder bag
Օ Free space for original powder box
beneeth the base unit
Filter change can be performed from the
working side
Օ Connection for gun controller
Illumination provided by customer * electrical installation requires an electrician

Specifications: Temperature: 10 to 35 հCHumidity: max 75%
Work-piece size BASIC 8000:
L=1000 x H=2000 mm
Work-piece size BASIC 4000:
L=800 x H=1200 mm

J. Wagner GmbH
Otto-Lilienthal-Str. 18
D-88677 Markdorf
Tel.: +49 (0) 75 44 / 505.0
Fax.: +49 (0) 75 44 / 505.200 >
www.wagner-group.com Printed in Germany Subject to changes Օ GB 9105-933 Օ 04/04 size="-4">
