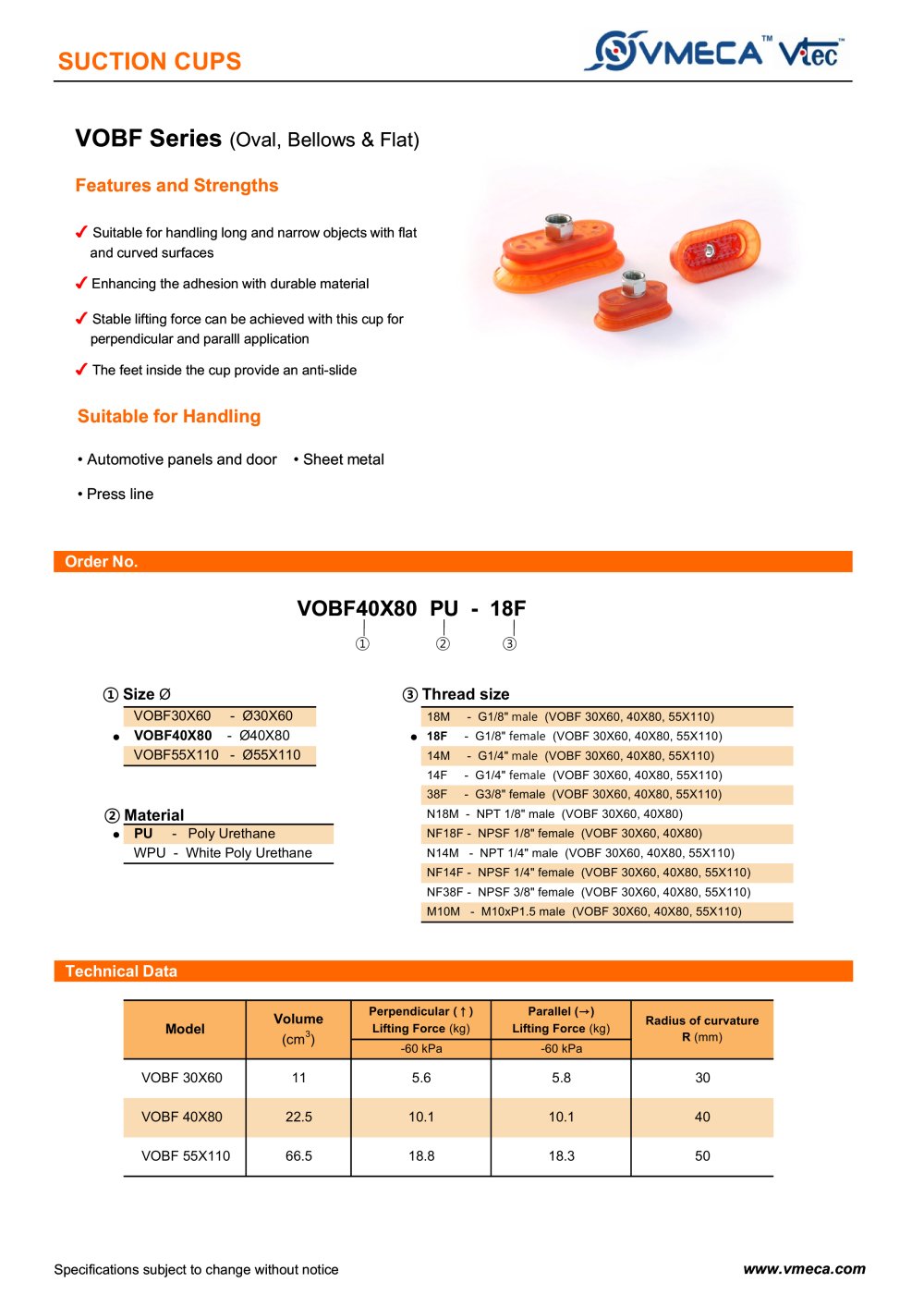

SUCTION CUPS VOBF40X80 PU - 18F VOBF Series (Oval, Bellows & Flat) Features and Strengths . Suitable for handling long and narrow objects with flat and curved surfaces . Enhancing the adhesion with durable material . Stable lifting force can be achieved with this cup for perpendicular and paralll application . The feet inside the cup provide an anti-slide Suitable for Handling • Automotive panels and door • Sheet metal • Press line Order No. Specifications subject to change without notice www.vmeca.com • • • 14F - G1/4" female (VOBF 30X60, 40X80, 55X110) 38F - G3/8" female (VOBF 30X60, 40X80, 55X110) N18M - NPT 1/8" male (VOBF 30X60, 40X80) PU - Poly Urethane NF18F - NPSF 1/8" female (VOBF 30X60, 40X80) WPU - White Poly Urethane N14M - NPT 1/4" male (VOBF 30X60, 40X80, 55X110) VOBF30X60 - Ø30X60 18M - G1/8" male (VOBF 30X60, 40X80, 55X110) VOBF40X80 - Ø40X80 18F - G1/8" female (VOBF 30X60, 40X80, 55X110) VOBF55X110 - Ø55X110 14M - G1/4" male (VOBF 30X60, 40X80, 55X110) -60 kPa VOBF 30X60 11 5.6 5.8 30 NF14F - NPSF 1/4" female (VOBF 30X60, 40X80, 55X110) NF38F - NPSF 3/8" female (VOBF 30X60, 40X80, 55X110) M10M - M10xP1.5 male (VOBF 30X60, 40X80, 55X110) Model Volume (cm3) Perpendicular (�ª) Lifting Force (kg) Parallel (�¨) Lifting Force (kg) Radius of curvature R (mm) -60 kPa VOBF 40X80 22.5 10.1 10.1 40 VOBF 55X110 66.5 18.8 18.3 50 ‡@ ‡A ‡B ‡@ Size Ø ‡A Material ‡B Thread size Technical Data
