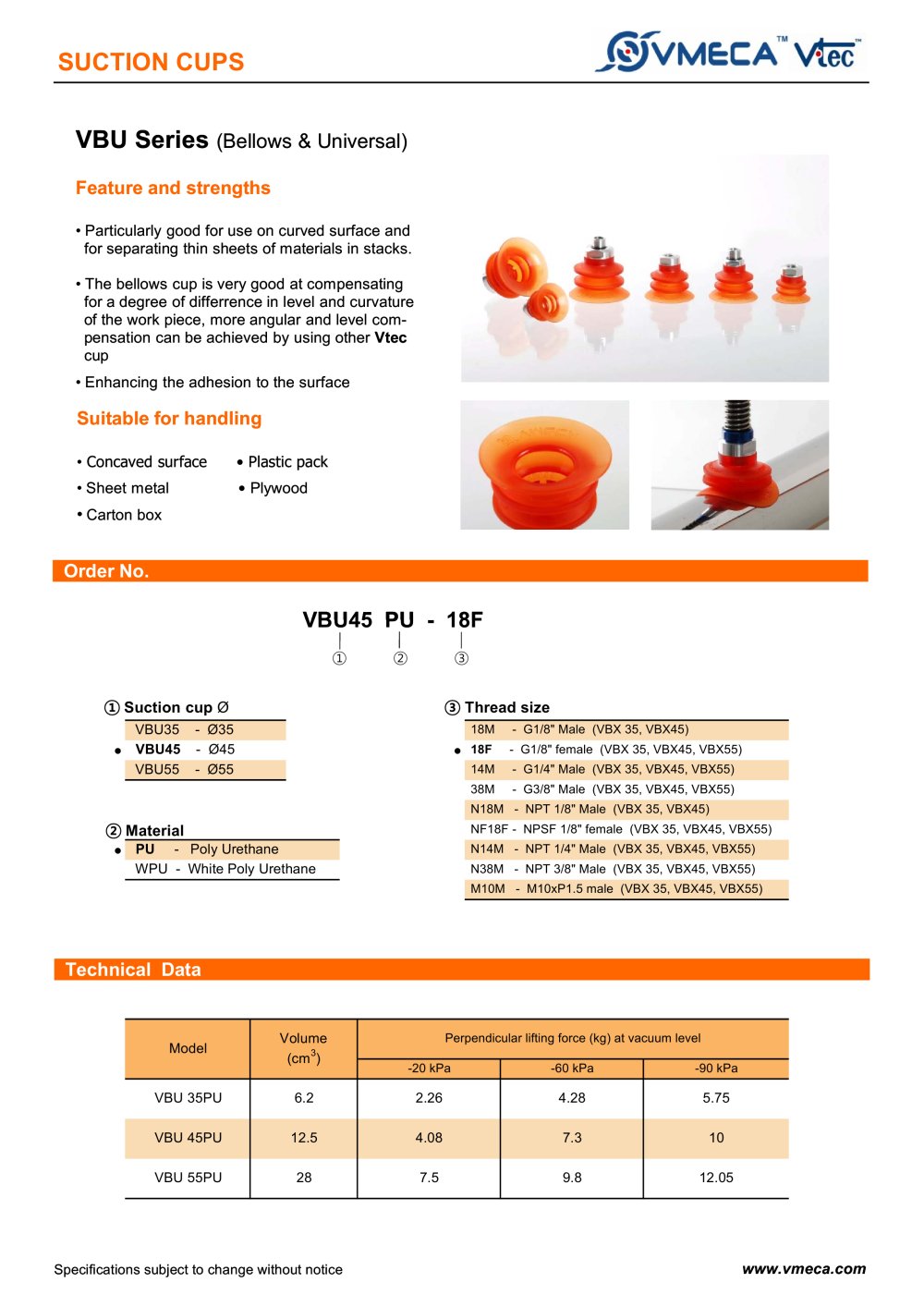

SUCTION CUPS VBU Series (Bellows & Universal) Feature and strengths • Particularly good for use on curved surface and for separating thin sheets of materials in stacks. • The bellows cup is very good at compensating for a degree of differrence in level and curvature of the work piece, more angular and level compensation can be achieved by using other Vtec cup • Enhancing the adhesion to the surface Suitable for handling • Concaved surface • Plastic pack • Sheet metal • Plywood • Carton box Order No. VBU45 PU 18F Specifications subject to change without notice www.vmeca.com • • • VBU 55PU 28 7.5 9.8 12.05 VBU 35PU 6.2 2.26 4.28 5.75 VBU 45PU 12.5 4.08 7.3 10 VBU35 - Ø35 18M - G1/8" Male (VBX 35, VBX45) VBU45 - Ø45 18F - G1/8" female (VBX 35, VBX45, VBX55) VBU55 - Ø55 14M - G1/4" Male (VBX 35, VBX45, VBX55) M10M - M10xP1.5 male (VBX 35, VBX45, VBX55) Model Volume (cm3) Perpendicular lifting force (kg) at vacuum level -20 kPa -60 kPa -90 kPa 38M - G3/8" Male (VBX 35, VBX45, VBX55) N18M - NPT 1/8" Male (VBX 35, VBX45) NF18F - NPSF 1/8" female (VBX 35, VBX45, VBX55) PU - Poly Urethane N14M - NPT 1/4" Male (VBX 35, VBX45, VBX55) WPU - White Poly Urethane N38M - NPT 3/8" Male (VBX 35, VBX45, VBX55) - ‡@ ‡A ‡B ‡@ Suction cup Ø ‡A Material ‡B Thread size Technical Data
