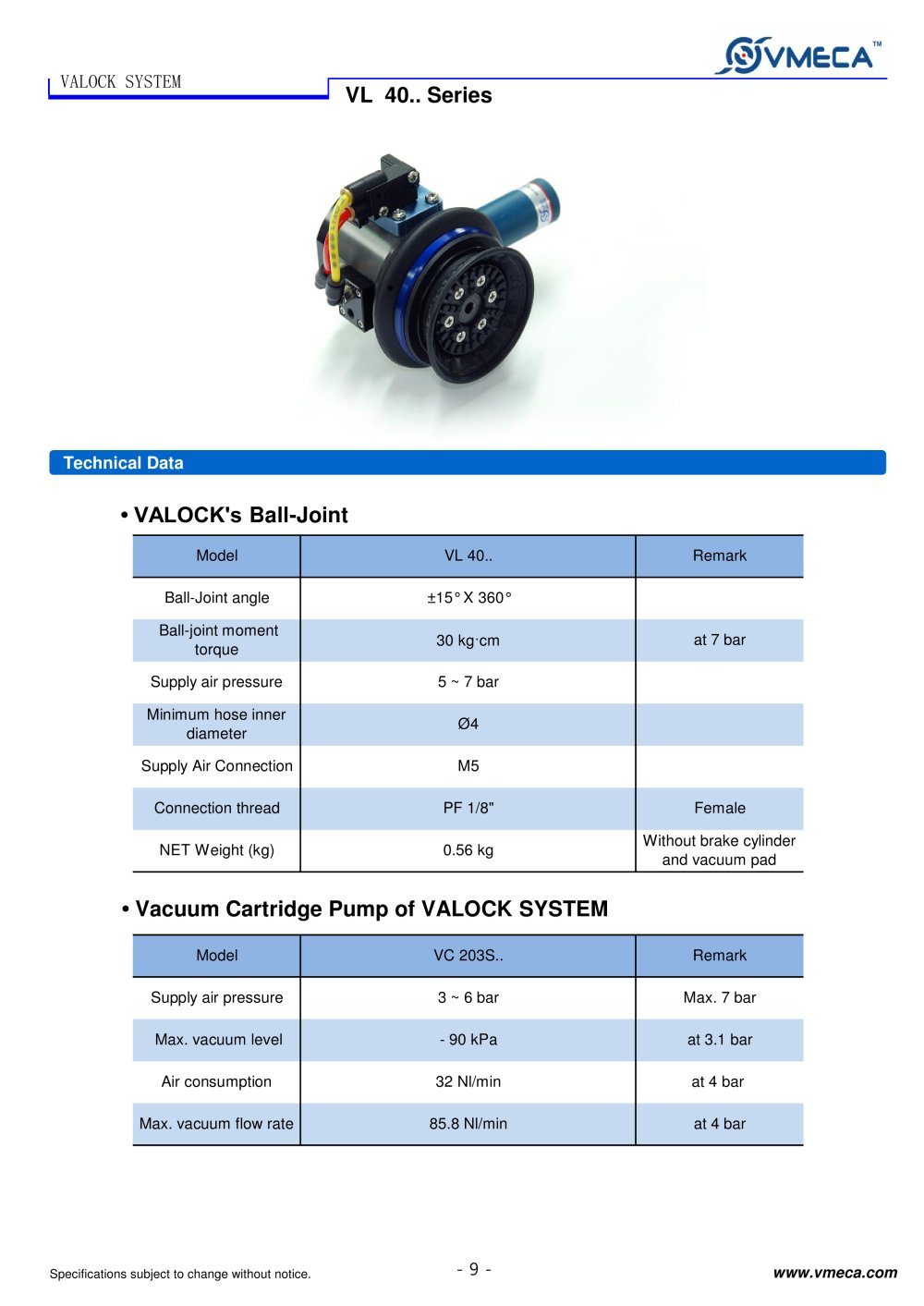

®VM6CA Technical Data • VALOCK's Bail-Joint Model VL40„ Remark Bail-Joint angle ±15°X 360° Bail-joint moment torque 30 kg cm al 7 bar Supply air pressure 5~7bar Minimum hose inner diameter 04 Supply Air Connection M5 Connection thread PF1/8" Female NET Weight (kg) 0.56 kg Without brake cylinder and vacuum pad Vacuum Cartridge Pump of VALOCK SYSTEM Mode! VC203S.. Remark Supply air pressure 3 - 6 bar Max. 7 bar Max. vacuum level -QOkPa at3.1 bar Air consumpbon 32 Nl/min al 4 bar Max. vacuum flow rate 85.8 Nl/min ■M bar Spccrticanc^s subjoct to cfiango wthout notice 9 www.vnieca.com
