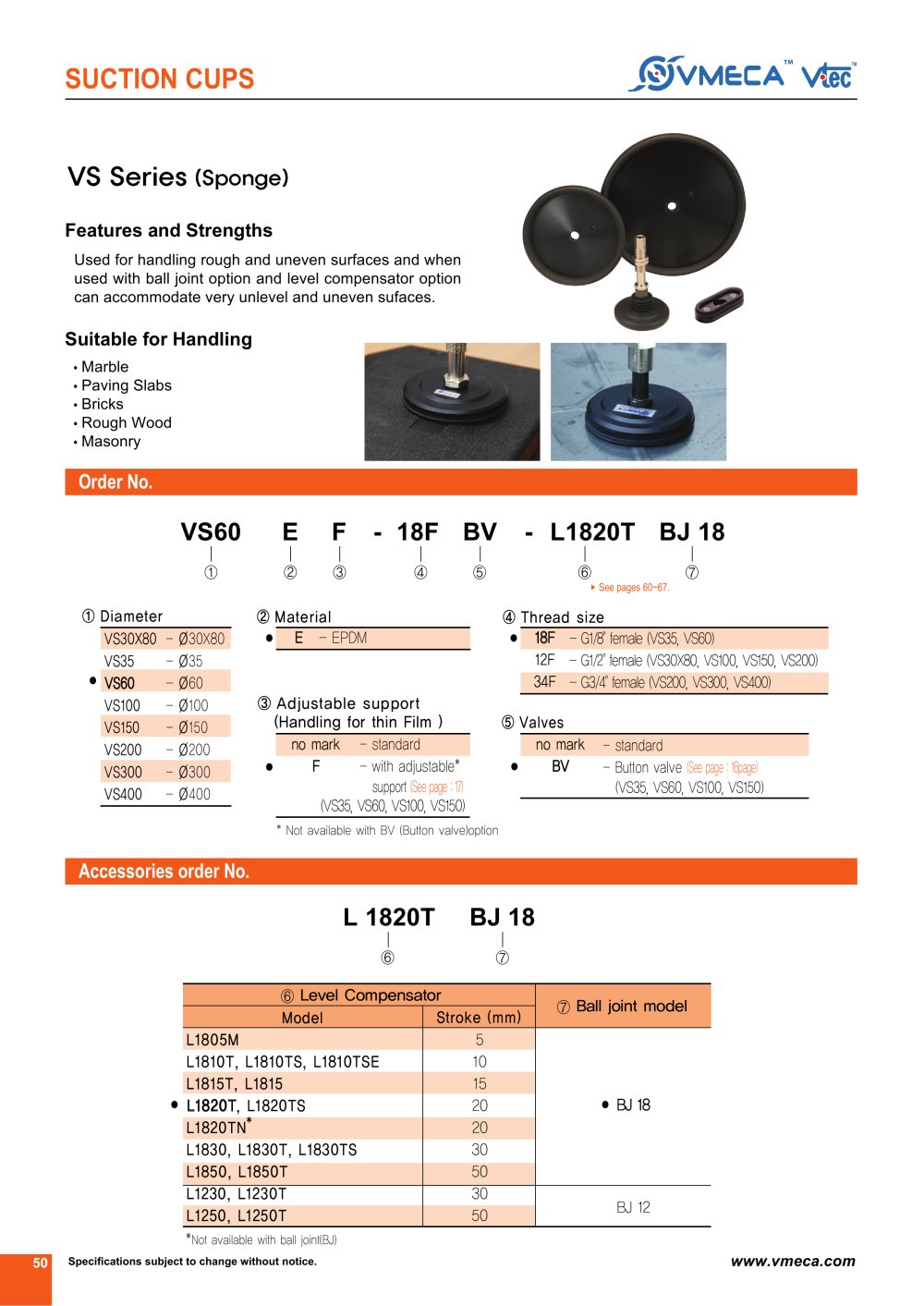

50 Specifications subject to change without notice. www.vmeca.com
SUCTION CUPS
Order No.
Accessories order No.
C
18F BV
A
E - -
@
VS60
B
F L1820T BJ 18
D E F
L 1820T BJ 18
E F
See pages 60~67.
E Level Compensator
Model Stroke (mm) F Ball joint model
BJ 18
BJ 12
VS Series (Sponge)
Used for handling rough and uneven surfaces and when
used with ball joint option and level compensator option
can accommodate very unlevel and uneven sufaces.
Marble
Paving Slabs
Bricks
Rough Wood
Masonry
Features and Strengths
Suitable for Handling
VS30X80
VS35
VS60
VS100
VS150
VS200
VS300
VS400
- 30X80
- 35
- 60
- 100
- 150
- 200
- 300
- 400
@ Diameter
E - EPDM
no mark
F
- standard
- with adjustable*
support (See page : 17)
B Adjustable support
(Handling for thin Film )
A Material
* Not available with BV (Button valve)option
18F
12F
34F
- G1/8" female (VS35, VS60)
- G1/2" female (VS30X80, VS100, VS150, VS200)
- G3/4" female (VS200, VS300, VS400)
no mark
BV
- standard
- Button valve (See page : 16page)
(VS35, VS60, VS100, VS150)
D Valves
C Thread size
*Not available with ball joint(BJ)
L1805M
L1810T, L1810TS, L1810TSE
L1815T, L1815
L1820T, L1820TS
L1820TN*
L1830, L1830T, L1830TS
L1850, L1850T
L1230, L1230T
L1250, L1250T
5
10
15
20
20
30
50
30
50
(VS35, VS60, VS100, VS150)
