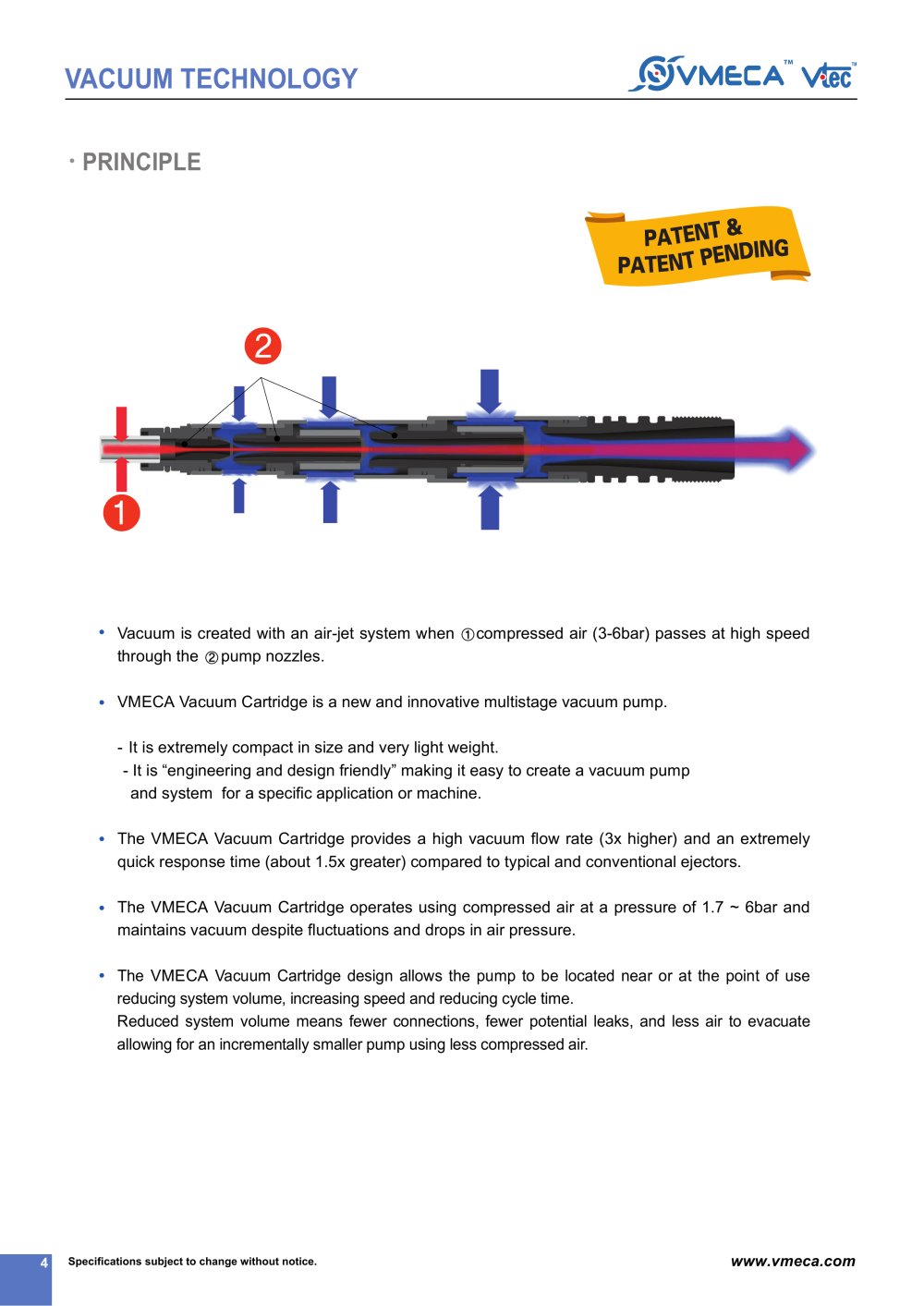

VACUUM TECHNOLOGY 4 Specifications subject to change without notice. www.vmeca.com Vacuum is created with an air-jet system when compressed air (3-6bar) passes at high speed through the pump nozzles. VMECA Vacuum Cartridge is a new and innovative multistage vacuum pump. - It is extremely compact in size and very light weight. - It is “engineering and design friendly” making it easy to create a vacuum pump and system for a specific application or machine. The VMECA Vacuum Cartridge provides a high vacuum flow rate (3x higher) and an extremely quick response time (about 1.5x greater) compared to typical and conventional ejectors. The VMECA Vacuum Cartridge operates using compressed air at a pressure of 1.7 ~ 6bar and maintains vacuum despite fluctuations and drops in air pressure. The VMECA Vacuum Cartridge design allows the pump to be located near or at the point of use reducing system volume, increasing speed and reducing cycle time. Reduced system volume means fewer connections, fewer potential leaks, and less air to evacuate allowing for an incrementally smaller pump using less compressed air. 1 2 PRINCIPLE ‡@ ‡A
