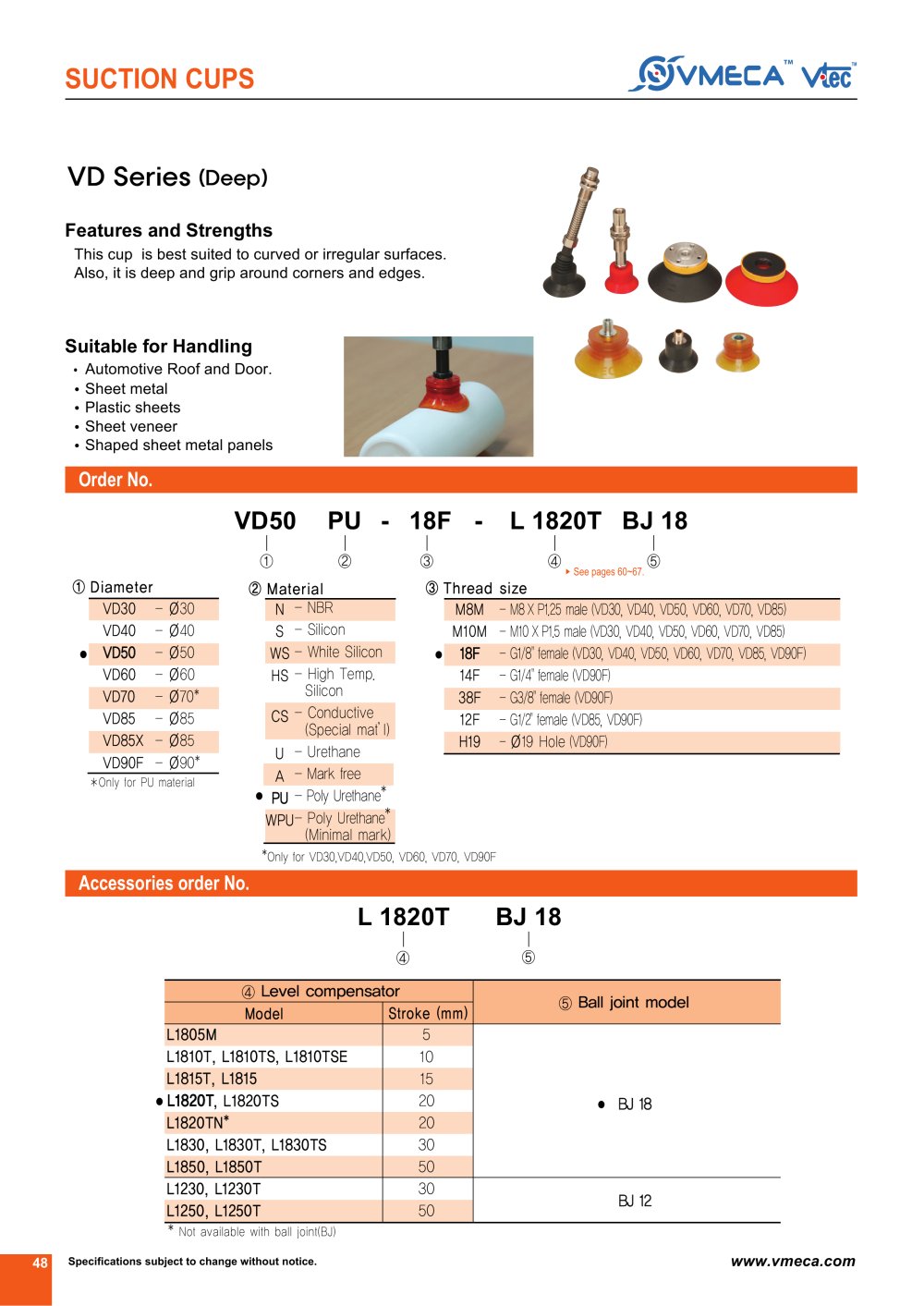

48 Specifications subject to change without notice. www.vmeca.com SUCTION CUPS Order No. Accessories order No. ‡B 18F ‡A PU - - ‡@ VD50 L 1820T BJ 18 ‡C ‡D See pages 60~67. VD Series (Deep) This cup is best suited to curved or irregular surfaces. Also, it is deep and grip around corners and edges. • Automotive Roof and Door. •Sheet metal •Plastic sheets •Sheet veneer •Shaped sheet metal panels Features and Strengths Suitable for Handling VD30 VD40 VD50 VD60 VD70 VD85 VD85X VD90F - NBR - Silicon - White Silicon - High Temp. Silicon - Conductive (Special mat’l) - Urethane - Mark free - Poly Urethane* - Poly Urethane* (Minimal mark) - Ø30 - Ø40 - Ø50 - Ø60 - Ø70* - Ø85 - Ø85 - Ø90* - M8 X P1.25 male (VD30, VD40, VD50, VD60, VD70, VD85) - M10 X P1.5 male (VD30, VD40, VD50, VD60, VD70, VD85) - G1/8" female (VD30, VD40, VD50, VD60, VD70, VD85, VD90F) - G1/4" female (VD90F) - G3/8" female (VD90F) - G1/2" female (VD85, VD90F) - Ø19 Hole (VD90F) �œ �œ *Only for VD30,VD40,VD50, VD60, VD70, VD90F ..Only for PU material ‡@ Diameter ‡A Material ‡B Thread size M8M M10M 18F 14F 38F 12F H19 N S WS HS CS U A PU WPU L 1820T BJ 18 ‡D ‡C Level compensator Model Stroke (mm) ‡D Ball joint model L1805M L1810T, L1810TS, L1810TSE L1815T, L1815 L1820T, L1820TS L1820TN* L1830, L1830T, L1830TS L1850, L1850T L1230, L1230T L1250, L1250T BJ 18 BJ 12 5 10 15 20 20 30 50 30 50 �œ �œ * Not available with ball joint(BJ) ‡C �œ
