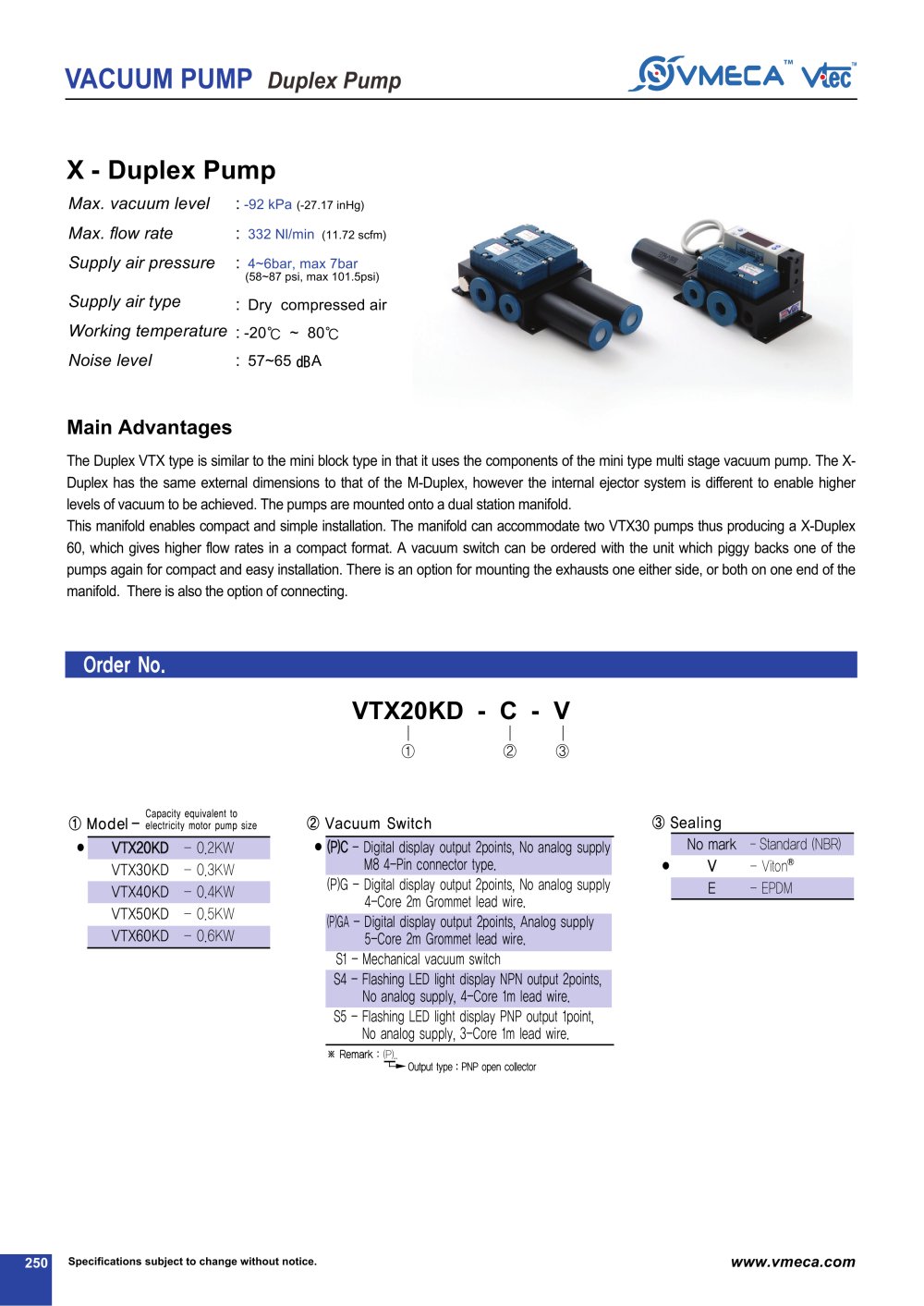

250 Specifications subject to change without notice. www.vmeca.com VACUUM PUMP Duplex Pump X - Duplex Pump Max. vacuum level Max. flow rate Supply air pressure Supply air type Working temperature Noise level : -92 kPa (-27.17 inHg) : 332 Nl/min (11.72 scfm) : 4~6bar, max 7bar (58~87 psi, max 101.5psi) : Dry compressed air : -20�Ž ~ 80�Ž : 57~65 A VTX20KD VTX30KD VTX40KD VTX50KD VTX60KD - 0.2KW - 0.3KW - 0.4KW - 0.5KW - 0.6KW �œ �œ ‡@ Model - ‡A Vacuum Switch Capacity equivalent to electricity motor pump size �¦ Remark : (P).. Output type : PNP open collector (P)C - Digital display output 2points, No analog supply M8 4-Pin connector type. (P)G - Digital display output 2points, No analog supply 4-Core 2m Grommet lead wire. (P)GA - Digital display output 2points, Analog supply 5-Core 2m Grommet lead wire. S1 - Mechanical vacuum switch S4 - Flashing LED light display NPN output 2points, No analog supply, 4-Core 1m lead wire. S5 - Flashing LED light display PNP output 1point, No analog supply, 3-Core 1m lead wire. The Duplex VTX type is similar to the mini block type in that it uses the components of the mini type multi stage vacuum pump. The XDuplex has the same external dimensions to that of the M-Duplex, however the internal ejector system is different to enable higher levels of vacuum to be achieved. The pumps are mounted onto a dual station manifold. This manifold enables compact and simple installation. The manifold can accommodate two VTX30 pumps thus producing a X-Duplex 60, which gives higher flow rates in a compact format. A vacuum switch can be ordered with the unit which piggy backs one of the pumps again for compact and easy installation. There is an option for mounting the exhausts one either side, or both on one end of the manifold. There is also the option of connecting. Main Advantages Order No. ‡@ ‡A ‡B VTX20KD - C - V No mark V E - Standard (NBR) - Viton - EPDM ‡B Sealing �œ
