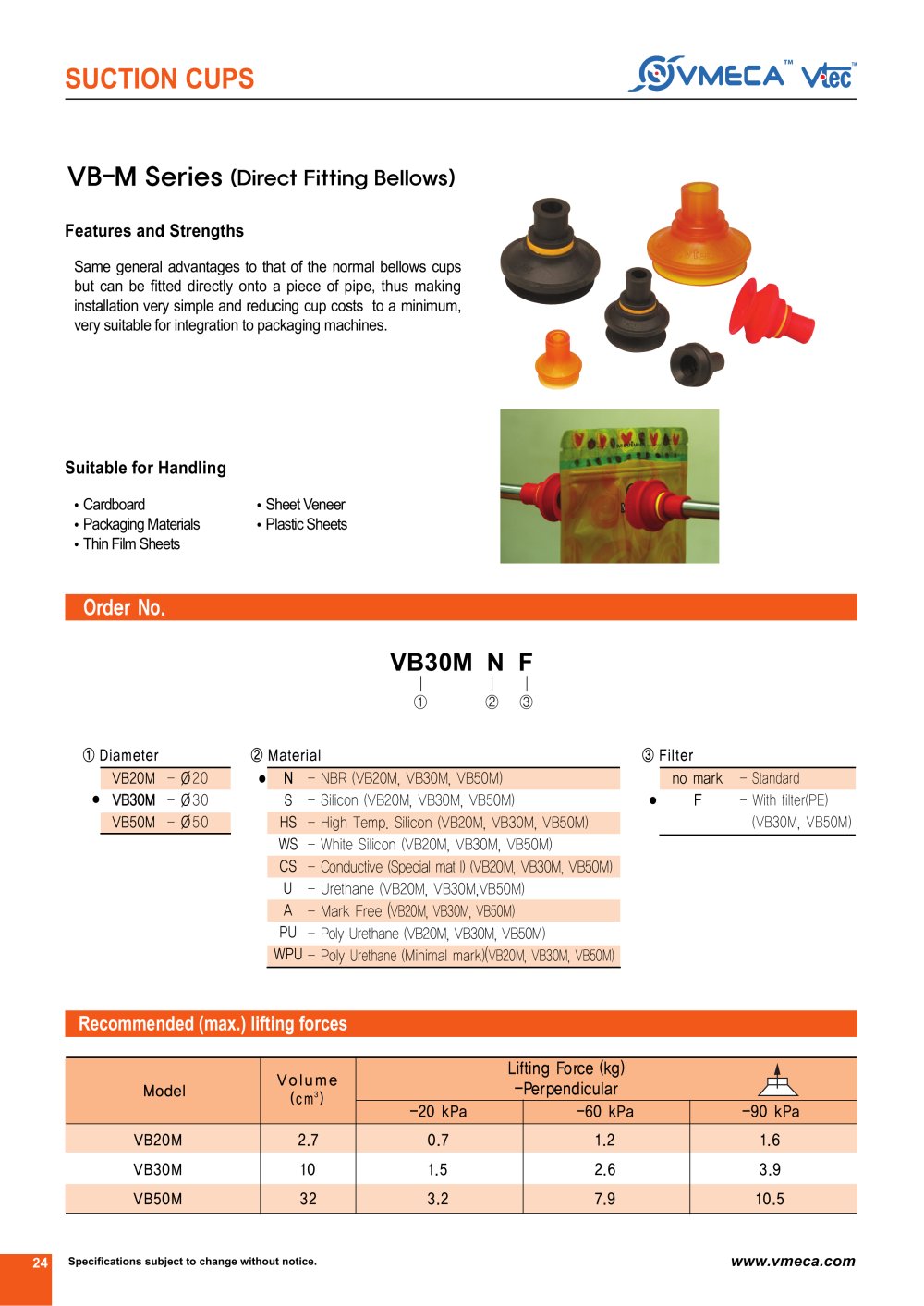

24 Specifications subject to change without notice. www.vmeca.com
SUCTION CUPS
Order No.
Recommended (max.) lifting forces
Model
VB20M
VB30M
VB50M
2.7
10
32
0.7
1.5
3.2
1.2
2.6
7.9
1.6
3.9
10.5
@ A B
VB30M N F
VB-M Series (Direct Fitting Bellows)
Same general advantages to that of the normal bellows cups
but can be fitted directly onto a piece of pipe, thus making
installation very simple and reducing cup costs to a minimum,
very suitable for integration to packaging machines.
Cardboard
Packaging Materials
Thin Film Sheets
Sheet Veneer
Plastic Sheets
Features and Strengths
Suitable for Handling
@ Diameter B Filter
VB20M
VB30M
VB50M
- Ø20
- Ø30
- Ø50
no mark
F
- Standard
- With filter(PE)
(VB30M, VB50M)
A Material
-20 kPa -60 kPa -90 kPa
Volume
(cm3)
Lifting Force (kg)
-Perpendicular
N
S
HS
WS
CS
U
A
PU
WPU
- NBR (VB20M, VB30M, VB50M)
- Silicon (VB20M, VB30M, VB50M)
- High Temp. Silicon (VB20M, VB30M, VB50M)
- White Silicon (VB20M, VB30M, VB50M)
- Conductive (Special matl) (VB20M, VB30M, VB50M)
- Urethane (VB20M, VB30M,VB50M)
- Mark Free (VB20M, VB30M, VB50M)
- Poly Urethane (VB20M, VB30M, VB50M)
- Poly Urethane (Minimal mark)(VB20M, VB30M, VB50M)
