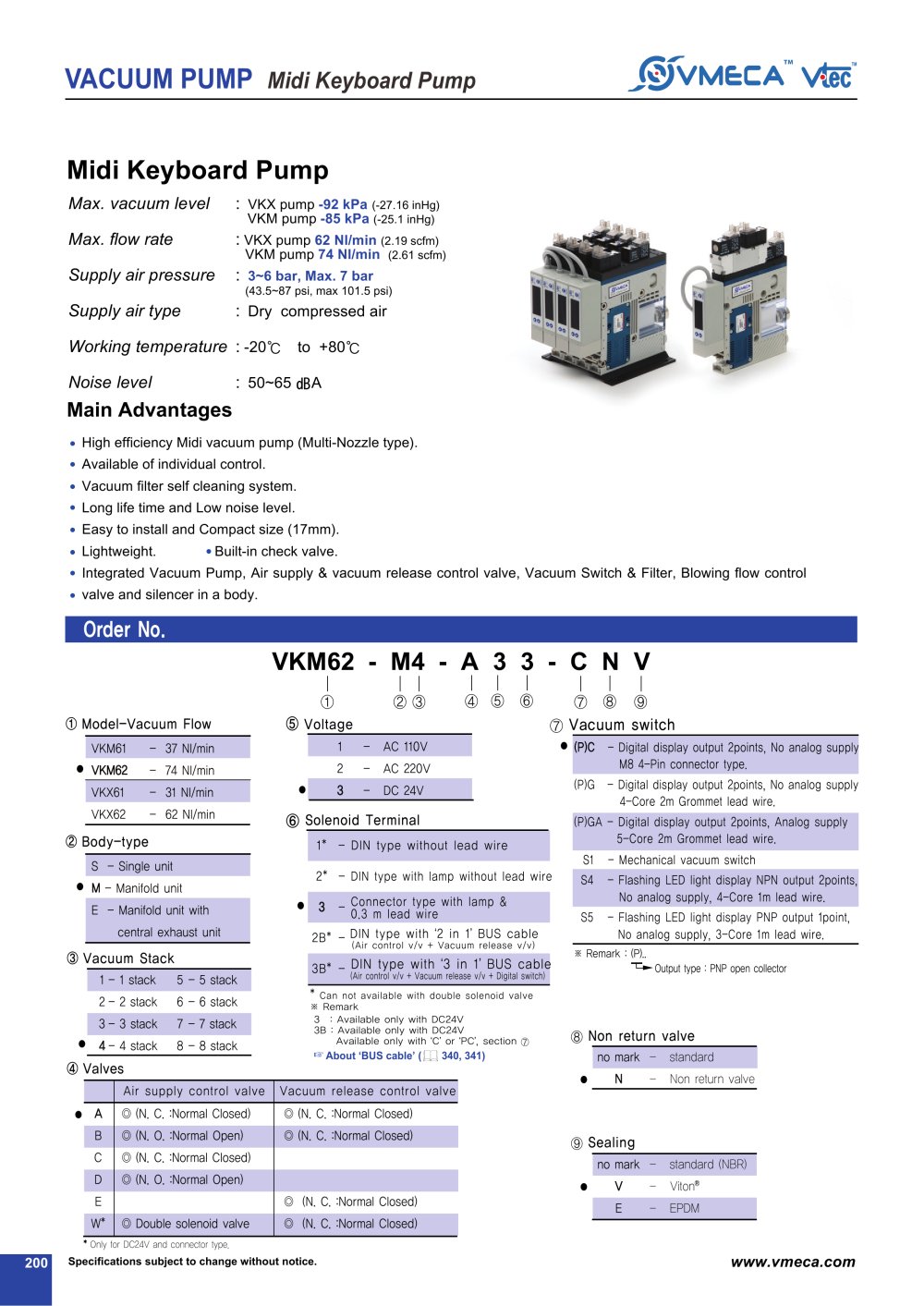

VACUUM PUMP Midi Keyboard Pump 200 Specifications subject to change without notice. www.vmeca.com Midi Keyboard Pump Max. vacuum level Max. flow rate Supply air pressure Supply air type Working temperature Noise level : VKX pump -92 kPa (-27.16 inHg) VKM pump -85 kPa (-25.1 inHg) : VKX pump 62 Nl/min (2.19 scfm) VKM pump 74 Nl/min (2.61 scfm) : 3~6 bar, Max. 7 bar (43.5~87 psi, max 101.5 psi) : Dry compressed air : -20�Ž to +80�Ž : 50~65 A - 37 Nl/min - 74 Nl/min - 31 Nl/min - 62 Nl/min VKM61 VKM62 VKX61 VKX62 �œ 1 2 3 4 - 1 stack - 2 stack - 3 stack - 4 stack 5 6 7 8 - 5 stack - 6 stack - 7 stack �œ - 8 stack no mark V E - standard (NBR) - Viton - EPDM ‡H Sealing �œ no mark N - standard - Non return valve ‡G Non return valve �œ ‡C Valves A B C D E W* �� (N. C. :Normal Closed) �� (N. O. :Normal Open) �� (N. C. :Normal Closed) �� (N. O. :Normal Open) �� Double solenoid valve Air supply control valve Vacuum release control valve �œ ‡F Vacuum switch �¦ Remark : (P).. Output type : PNP open collector ‡@ Model-Vacuum Flow S - Single unit M - Manifold unit E - Manifold unit with central exhaust unit �œ �œ ‡A Body-type 1 2 3 - AC 110V - AC 220V - DC 24V ‡D Voltage �œ * Only for DC24V and connector type. Order No. ‡@ ‡A ‡B ‡C VKM62 - M4 - A 3 3 - C N V ‡D ‡E ‡F ‡G ‡H High efficiency Midi vacuum pump (Multi-Nozzle type). Available of individual control. Vacuum filter self cleaning system. Long life time and Low noise level. Easy to install and Compact size (17mm). Lightweight. Built-in check valve. Integrated Vacuum Pump, Air supply & vacuum release control valve, Vacuum Switch & Filter, Blowing flow control valve and silencer in a body. Main Advantages 1* - DIN type without lead wire 2* - DIN type with lamp without lead wire 3 Connector type with lamp & 0.3 m lead wire 2B* DIN type with ‘2 in 1’ BUS cable (Air control v/v + Vacuum release v/v) ‡E Solenoid Terminal - 3B* DIN type with ‘3 in 1’ BUS cable (Air control v/v + Vacuum release v/v + Digital switch) - - * Can not available with double solenoid valve �¦ Remark 3 : Available only with DC24V 3B : Available only with DC24V Available only with ‘C’ or ‘PC’, section ‡F (P)C - Digital display output 2points, No analog supply M8 4-Pin connector type. (P)G - Digital display output 2points, No analog supply 4-Core 2m Grommet lead wire. (P)GA - Digital display output 2points, Analog supply 5-Core 2m Grommet lead wire. S1 - Mechanical vacuum switch S4 - Flashing LED light display NPN output 2points, No analog supply, 4-Core 1m lead wire. S5 - Flashing LED light display PNP output 1point, No analog supply, 3-Core 1m lead wire. �� (N. C. :Normal Closed) �� (N. C. :Normal Closed) �� (N. C. :Normal Closed) �� (N. C. :Normal Closed) �œ ‡B Vacuum Stack About ‘BUS cable’ ( 340, 341)
