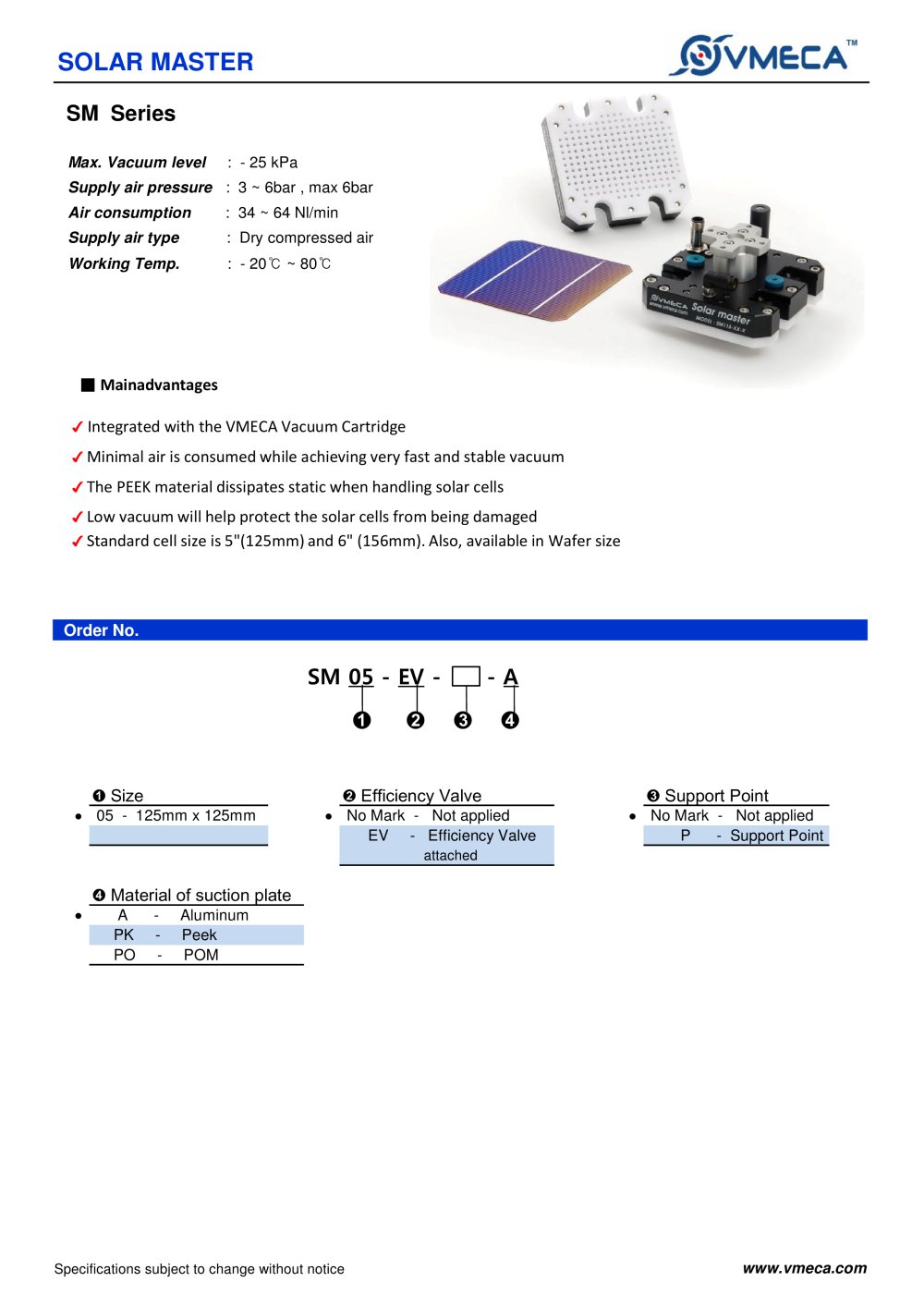

SOLAR MASTER SM Series Max. Vacuum level : - 25 kPa Supply air pressure : 3 ~ 6bar , max 6bar Air consumption : 34 ~ 64 Nl/min Supply air type : Dry compressed air Working Temp. : - 20℃ ~ 80℃ â–  Mainadvantages ✔ Integrated with the VMECA Vacuum Cartridge ✔ Minimal air is consumed while achieving very fast and stable vacuum ✔ The PEEK material dissipates static when handling solar cells ✔ Low vacuum will help protect the solar cells from being damaged ✔ Standard cell size is 5"(125mm) and 6" (156mm). Also, available in Wafer size Order No. SM 05 - ➊ ➊ Size • 05 - 125mm x 125mm -A âž‹ ➌ âž‹ Support Point • No Mark - Not applied 06 - 156mm x 156mm Specifications subject to change without notice P - Support Point • ➌ Material of suction plate A PK PO - Aluminum Peek POM www.vmeca.com
