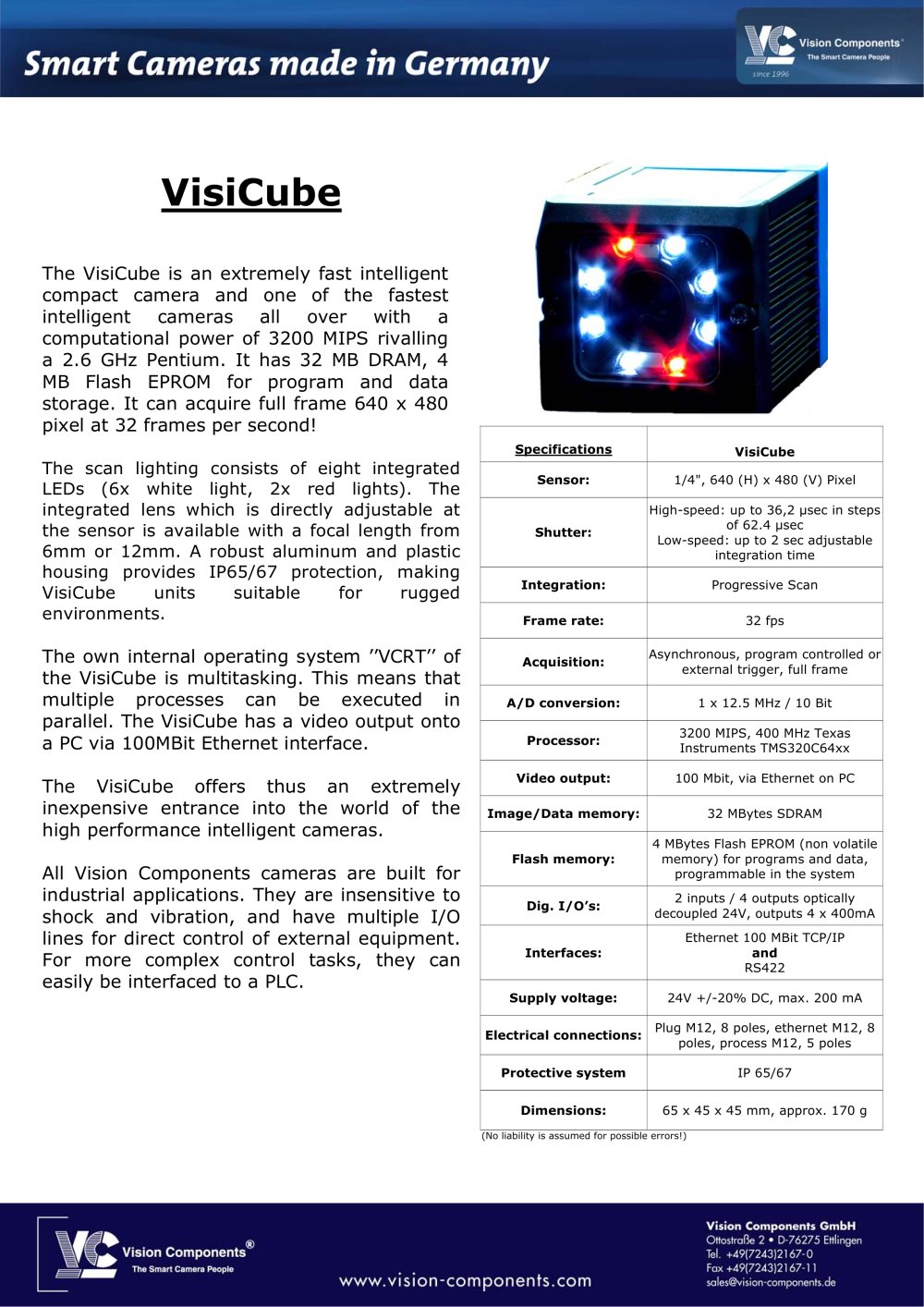

VisiCube

The VisiCube is an extremely fast intelligent compact camera and one of the fastest intelligent cameras all over with a computational power of 3200 MIPS rivalling a 2.6 GHz Pentium. It has 32 MB DRAM, 4 MB Flash EPROM for program and data storage. It can acquire full frame 640 x 480 pixel at 32 frames per second!

Specifications VisiCube

The scan lighting consists of eight integratedLEDs (6x white light, 2x red lights). T heintegrated lens which is directly adjustable at the sensor is available with a focal length from 6mm or 12mm. A robust aluminum and plastichousing provides IP65/67 protection, makingVisiCube units suitable for rugged environments.

Sensor: 1/4", 640 (H) x 480 (V) Pixel Shutter: High-speed: up to 36,2 µsec in steps of 62.4 µsec Low-speed: up to 2 sec adjustable integration time Integration: Progressive Scan Frame rate: 32 fps

The own internal operating system ’’VCRT’’ o f

Acquisition: Asynchronous, program controlled or

the VisiCube is multitasking. This means thatmultiple processes can be executed in parallel. The VisiCube has a video output onto a PC via 100MBit Ethernet interface. The VisiCube offers thus an extremelyinexpensive entrance into the world of thehigh performance intelligent cameras. All Vision Components cameras are built fo

external trigger, full frame A/D conversion: 1 x 12.5 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Video output: 100 Mbit, via Ethernet on PC Image/Data memory: 32 MBytes SDRAM Flash memory: 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system

r industrial applications. They are insensitive toshock and vibration, and have multiple I/O lines for direct control of external equipment. For more complex control tasks, they can easily be interfaced to a PLC.

Dig. I/O’s: 2 inputs / 4 outputs optically decoupled 24V, outputs 4 x 400mA Interfaces: Ethernet 100 MBit TCP/IP and RS422 Supply voltage: 24V +/-20% DC, max. 200 mA Electrical connections: Plug M12, 8 poles, ethernet M12, 8 poles, process M12, 5 poles Protective system IP 65/67 Dimensions: 65 x 45 x 45 mm, approx. 170 g
(No liability is assumed for possible errors!)
