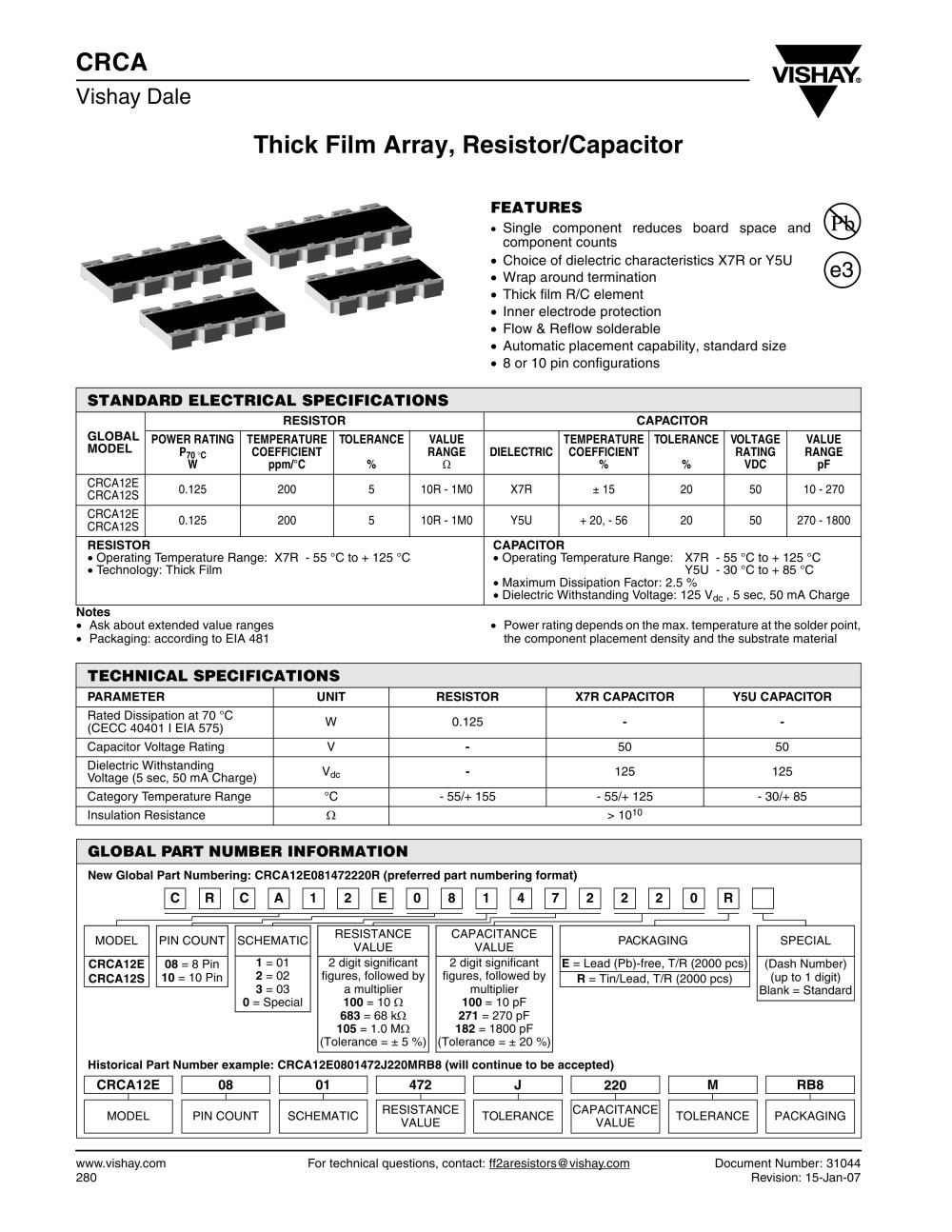

Thick Film Array, Resistor/Capacitor www.vishay.com For technical questions, contact: ff2aresistors@vishay.com Document Number: 31044 280 Revision: 15-Jan-07 CRCA Vishay Dale FEATURES • Single component reduces board space and component counts • Choice of dielectric characteristics X7R or Y5U • Wrap around termination • Thick film R/C element • Inner electrode protection • Flow & Reflow solderable • Automatic placement capability, standard size • 8 or 10 pin configurations Notes • Ask about extended value ranges • Packaging: according to EIA 481 • Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material STANDARD ELECTRICAL SPECIFICATIONS GLOBAL MODEL RESISTOR CAPACITOR POWER RATING P70 °C W TEMPERATURE COEFFICIENT ppm/°C TOLERANCE % VALUE RANGE Ù DIELECTRIC TEMPERATURE COEFFICIENT % TOLERANCE % VOLTAGE RATING VDC VALUE RANGE pF CRCA12E CRCA12S 0.125 200 5 10R - 1M0 X7R ± 15 20 50 10 - 270 CRCA12E CRCA12S 0.125 200 5 10R - 1M0 Y5U + 20, - 56 20 50 270 - 1800 RESISTOR • Operating Temperature Range: X7R - 55 °C to + 125 °C • Technology: Thick Film CAPACITOR • Operating Temperature Range: X7R - 55 °C to + 125 °C Y5U - 30 °C to + 85 °C • Maximum Dissipation Factor: 2.5 % • Dielectric Withstanding Voltage: 125 Vdc , 5 sec, 50 mA Charge TECHNICAL SPECIFICATIONS PARAMETER UNIT RESISTOR X7R CAPACITOR Y5U CAPACITOR Rated Dissipation at 70 °C (CECC 40401 I EIA 575) W 0.125 - - Capacitor Voltage Rating V - 50 50 Dielectric Withstanding Voltage (5 sec, 50 mA Charge) Vdc - 125 125 Category Temperature Range °C - 55/+ 155 - 55/+ 125 - 30/+ 85 Insulation Resistance Ù > 1010 GLOBAL PART NUMBER INFORMATION New Global Part Numbering: CRCA12E081472220R (preferred part numbering format) Historical Part Number example: CRCA12E0801472J220MRB8 (will continue to be accepted) SPECIAL (Dash Number) (up to 1 digit) Blank = Standard CAPACITANCE VALUE 2 digit significant figures, followed by multiplier 100 = 10 pF 271 = 270 pF 182 = 1800 pF (Tolerance = ± 20 %) SCHEMATIC 1 = 01 2 = 02 3 = 03 0 = Special RESISTANCE VALUE 2 digit significant figures, followed by a multiplier 100 = 10 Ù 683 = 68 kÙ 105 = 1.0 MÙ (Tolerance = ± 5 %) PACKAGING E = Lead (Pb)-free, T/R (2000 pcs) R = Tin/Lead, T/R (2000 pcs) C R C A 1 2 E 0 8 1 4 7 2 2 2 0 R MODEL CRCA12E CRCA12S PIN COUNT 08 = 8 Pin 10 = 10 Pin 220 CAPACITANCE VALUE RB8 PACKAGING M TOLERANCE J TOLERANCE 472 RESISTANCE VALUE 01 SCHEMATIC CRCA12E MODEL 08 PIN COUNT
