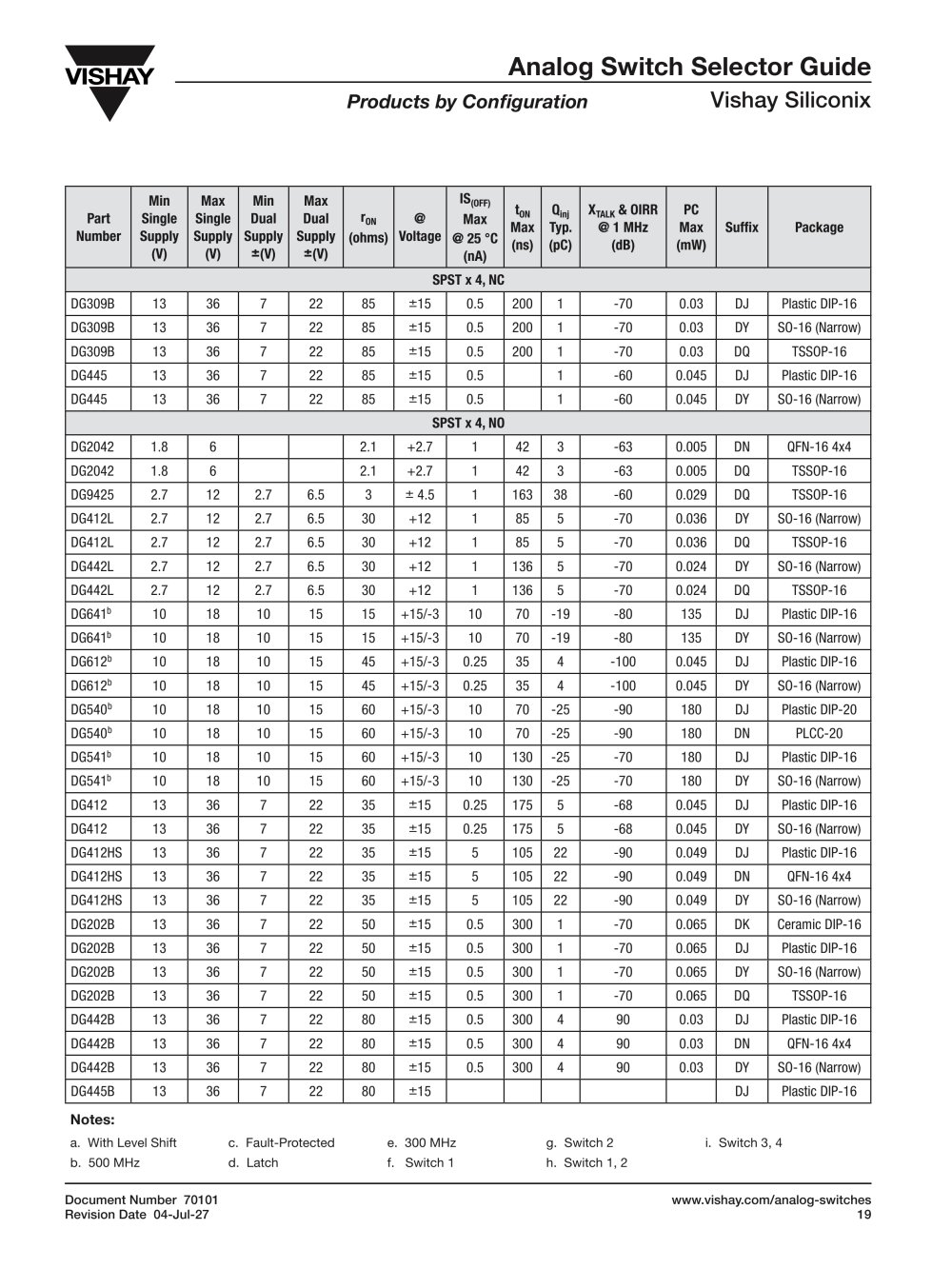

Products by Configuration Vishay Siliconix
Part Number
Min Single Supply
(V)
Max Single Supply
(V)
Min Dual Supply ±(V)
Max Dual Supply ±(V)
r0N (ohms)
@ Voltage
ISfOFF,
Max @25 °C (nA)
toN
Max
(ns)
Qinj Typ.
(PC)
Xtalk&OIRR @1 MHz (dB)
PC Max (mW)
Suffix
Package
SPSTx4, NC
DG309B
13
36
7
22
85
±15
0.5
200
1
-70
0.03
DJ
Plastic DIP-16
DG309B
13
36
7
22
85
±15
0.5
200
1
-70
0.03
DY
S0-16(Narrow)
DG309B
13
36
7
22
85
±15
0.5
200
1
-70
0.03
DQ
TSSOP-16
DG445
13
36
7
22
85
±15
0.5
1
-60
0.045
DJ
Plastic DIP-16
DG445
13
36
7
22
85
±15
0.5
1
-60
0.045
DY
S0-16(Narrow)
SPSTx4,N0
DG2042
1.8
6
2.1
+2.7
1
42
3
-63
0.005
DN
QFN-16 4x4
DG2042
1.8
6
2.1
+2.7
1
42
3
-63
0.005
DQ
TSSOP-16
DG9425
2.7
12
2.7
6.5
3
±4.5
1
163
38
-60
0.029
DQ
TSSOP-16
DG412L
2.7
12
2.7
6.5
30
+12
1
85
5
-70
0.036
DY
S0-16(Narrow)
DG412L
2.7
12
2.7
6.5
30
+12
1
85
5
-70
0.036
DQ
TSSOP-16
DG442L
2.7
12
2.7
6.5
30
+12
1
136
5
-70
0.024
DY
S0-16(Narrow)
DG442L
2.7
12
2.7
6.5
30
+12
1
136
5
-70
0.024
DQ
TSSOP-16
DG641b
10
18
10
15
15
+15/-3
10
70
-19
-80
135
DJ
Plastic DIP-16
DG641b
10
18
10
15
15
+15/-3
10
70
-19
-80
135
DY
S0-16(Narrow)
DG612b
10
18
10
15
45
+15/-3
0.25
35
4
-100
0.045
DJ
Plastic DIP-16
DG612b
10
18
10
15
45
+15/-3
0.25
35
4
-100
0.045
DY
S0-16(Narrow)
DG540b
10
18
10
15
60
+15/-3
10
70
-25
-90
180
DJ
Plastic DIP-20
DG540b
10
18
10
15
60
+15/-3
10
70
-25
-90
180
DN
PLCC-20
DG541b
10
18
10
15
60
+15/-3
10
130
-25
-70
180
DJ
Plastic DIP-16
DG541b
10
18
10
15
60
+15/-3
10
130
-25
-70
180
DY
S0-16(Narrow)
DG412
13
36
7
22
35
±15
0.25
175
5
-68
0.045
DJ
Plastic DIP-16
DG412
13
36
7
22
35
±15
0.25
175
5
-68
0.045
DY
S0-16(Narrow)
DG412HS
13
36
7
22
35
±15
5
105
22
-90
0.049
DJ
Plastic DIP-16
DG412HS
13
36
7
22
35
±15
5
105
22
-90
0.049
DN
QFN-16 4x4
DG412HS
13
36
7
22
35
±15
5
105
22
-90
0.049
DY
S0-16(Narrow)
DG202B
13
36
7
22
50
±15
0.5
300
1
-70
0.065
DK
Ceramic DIP-16
DG202B
13
36
7
22
50
±15
0.5
300
1
-70
0.065
DJ
Plastic DIP-16
DG202B
13
36
7
22
50
±15
0.5
300
1
-70
0.065
DY
S0-16(Narrow)
DG202B
13
36
7
22
50
±15
0.5
300
1
-70
0.065
DQ
TSSOP-16
DG442B
13
36
7
22
80
±15
0.5
300
4
90
0.03
DJ
Plastic DIP-16
DG442B
13
36
7
22
80
±15
0.5
300
4
90
0.03
DN
QFN-16 4x4
DG442B
13
36
7
22
80
±15
0.5
300
4
90
0.03
DY
S0-16(Narrow)
DG445B 13
36
7
22
80
±15
DJ
Plastic DIP-16
Notes:
a. With Level Shift c. Fault-Protected e. 300 MHz g. Switch 2 i. Switch 3,4
b. 500 MHz d. Latch f. Switchl h. Switch1,2
