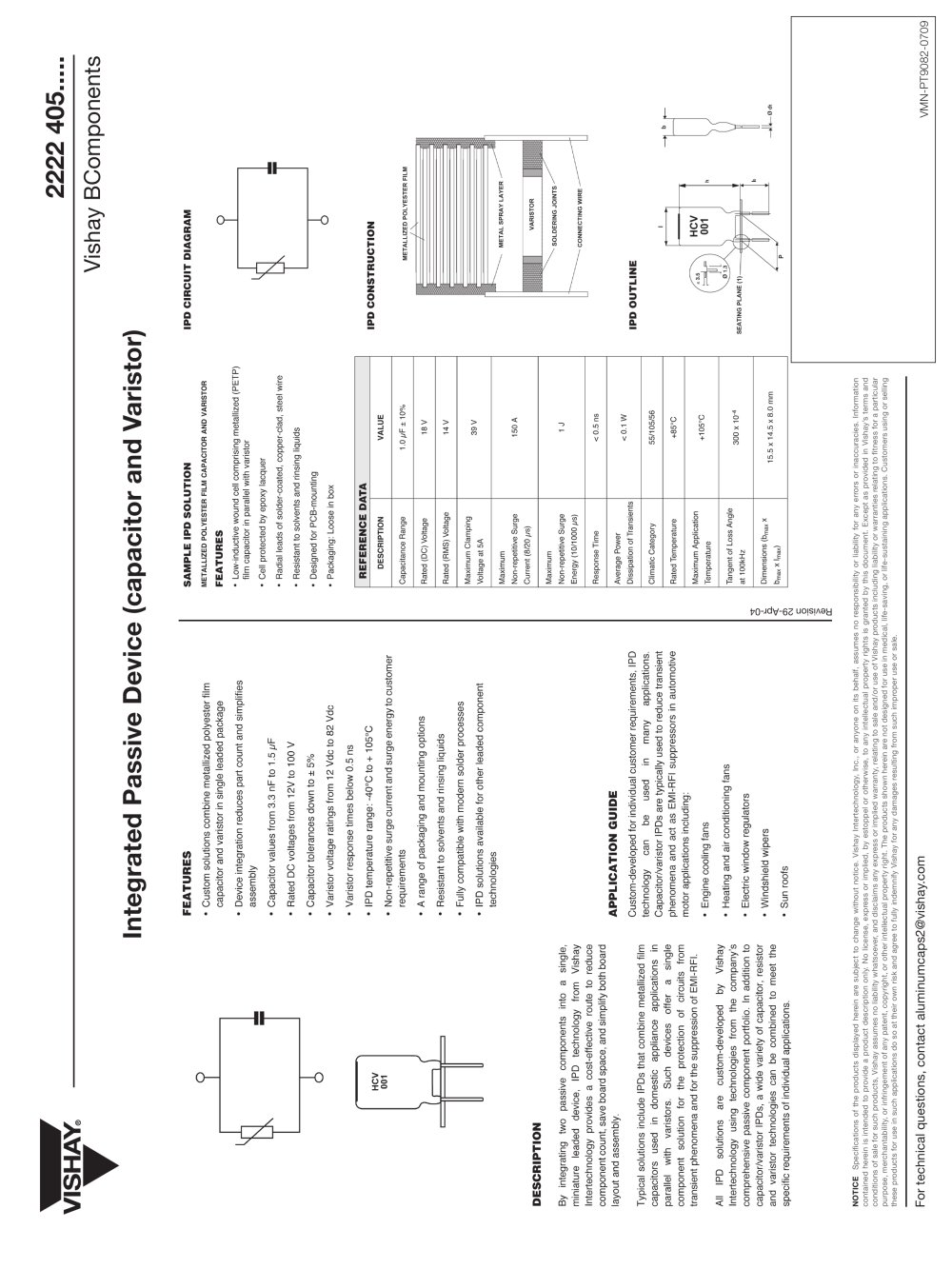

Capacitor/Varistor Integrated Device - VISHAY - #2

Vishay BComponents

• Custom solutions combine metallized polyester film capacitor and varistor in single leaded package

• Device integration reduces part count and simplifies assembly

• Capacitor values Irom 3.3 nF to 1.5 uP

■ Rated DC votieges Irom 12V lo 100 V

• Capacitor tolerances down to ± 5%

• Varistor voltage ratings from 12 Vdc to 82 Vdc

■ Varistor response times below 0 5 ns

• IPD temperature range: >40"C to * 105*0

• Non-repetitive surge current and surge energy lo customer requirements

■ A range of packaging and mounting options

• Resistant to solvents and rtnsing liquids

■ Fulty compatible with modern solder processes

• IPD solutions available for other leaded component technologies

By integrating two passive components into a single, miniature leaded device, IPD technology from Vishay Interteclrnology provides a cosl-etfective route to reduce component count, save board space, and simplify both board layout and assembly.

Typical solutions include IPDs thai combine metallized tilm capacitors used in domestic appliance applications in parallel with varistofs. Such devices offer a sirtgte component solution for the protection of circuits from transient phenomena and for the suppression ol EMI-RFI,

All IPD solutions are custom-developed by Vishay Intertechnology using technologies from the company's comprehensive passive component portfolio, fn addition to capacilor/varislor IPDs, a wide variety of capacitor, resistor and vanstor technologies can be combined to meet the specific requirements of individual applications.

Custom-developed for individual customer requirements, IPD technology can be used in many applications. Capacitor/varistor IPDs are typically used to reduce transient phenomena and act as EMI-RFI suppressors In automotive motor applications including

* Engine cooling fans

■ Heating and air conditioning fans

■ Electric window regulators

* Windshield wipers

■ Sun roofs

NOTICE Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies. Information contained herein is intended to provide a product description only. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Vishay for any damages resulting from such improper use or sale.

For technical questions, contact aluminumcaps2@vishay.com

VMN-PT9082-0709
