| | Products | Features | Applications | |
| | HTZ-3 w | • Rugged stainless steel '1' beam sensing section • Resultant forces measure in the up or down direction . Full Wheatstone bridge with Vishay SR-4® foil • Factory calibration eliminates need for on-site test weights • Optional adapter plate designed for on-site installation of overload safety stops • FM and CSA approved | • Paper producing machines • Roofing shingle manufacturing • Printing presses • Laminator zones • Dryer zones • Coating zones • Felt measurement | |

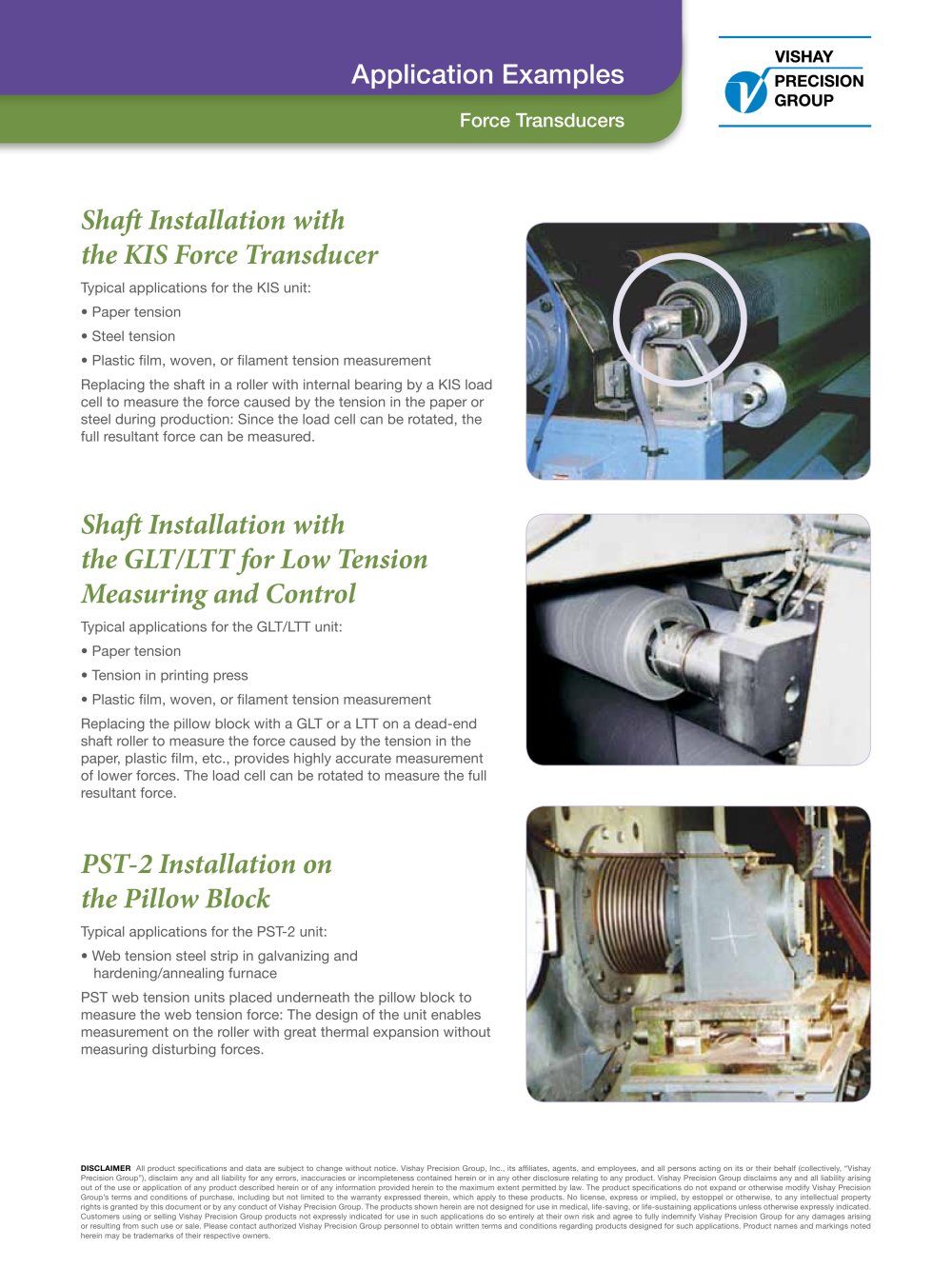

| | GLT and LTT | • 90 N to 2200 N • Low tension applications • Direct shaft measurement | • Web tension plastic film or woven material • Web tension filament • Tension measurement printing press | |
| | | • 1 kN to 500 kN • Medium forces • Replaces existing shafts • Can be rotated to measure full resultant force | • Web tension paper machine, steel strip plastic film, and woven material | |
| | ^^^^^^ | • 10 kN to 20 kN • Simple installation • Robust with low deflection | • Web tension and tension profile measurement paper, plastic film, and woven material | |
| | HTU Measurement Module | • Capacities from 2 Klb to 20 Klb (9 kN to 90 kN) • Dual-axis transducer design enables measurement of resultant force in all directions without limitation to horizontal or vertical components • Functional to250°F(121°C) • Sealed to IP67: field-proven design • Low profile: direct load cell replacement with simple retrofit installation • Factory-calibrated for minimum start-up time | • Web tension measurement paper, plastic film, and woven material • Nip force measurement • Felts • Mining conveyers • Coaters • Laminators | |
| | PST-2 Measurement Module | • Capacities: 20 kN to 200 kN • Measure exact resultant web tension force • Allows for great thermal expansion of roller • Superior accuracy for heavy rolls with small wrap angles • Units customized to fit existing applications-no reconstruction required • High temperature units: functional to 100°C • Special units designed to meet any application need | • Web tension measurement on steel strip in galvanizing or hardening/annealing industrial furnace lines | |
| | FMU-1 Measurement Module | • Measure exact resultant web tension force • Superior accuracy for heavy rolls with small wrap angles • Units customized to fit existing applications-no reconstruction required • High temperature units-functional to 100°C • Special units designed to meet any application need | • Paper machines • Steel strip tension • Mining conveyers • Felts • Dryers • Calendars • Coaters • Laminators • Winders and rewinders | |
| | FMU-5 Measurement Module Si | • Customized and compact unit for higher forces • Measure exact resultant web tension force • Superior accuracy for heavy rolls with small wrap angles • Units customized to fit existing applications-no reconstruction required • High temperature units-functional to 100°C | • Paper machines • Steel strip tension • Mining conveyers • Felts • Dryers • Calendars • Coaters • Laminators • Winders and rewinders | |
| | | | | |
