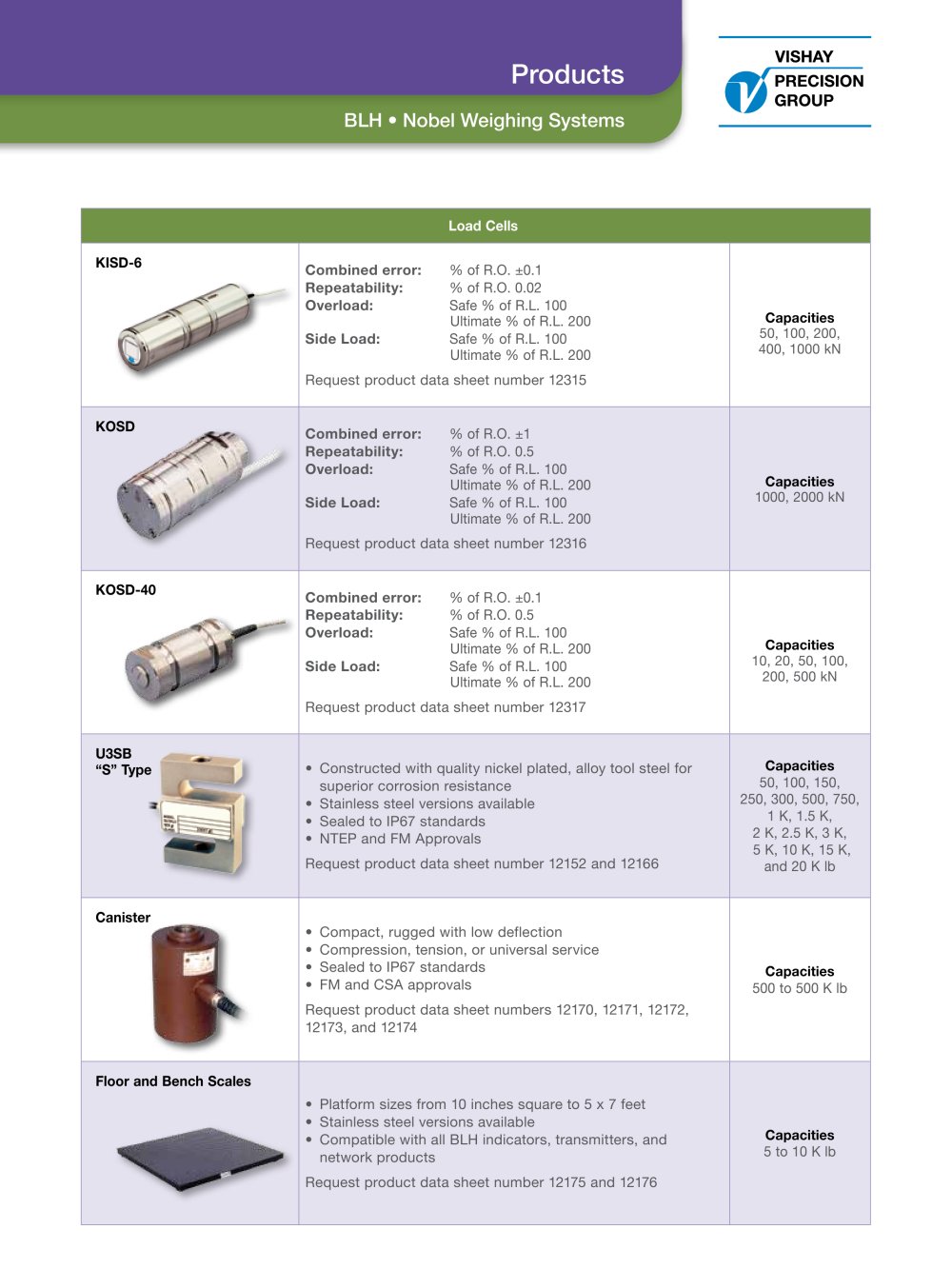

Vishay Nobel - 6082, 81469, 252998, 2145
/ 6
See other catalogues for Vishay Nobel
Text version of the page
TAD 3
- Very accurate weight processor for panel mounting
- Excellent connectivity and operator interface
- Customized software
- Easy set-up via front panel or PC
- Comprehensive batching and recipe handling capacity in two versions — Batching of up to six components in coarse and fine feeding phases; the extended Recipe version storing up to 30 recipes and handling up 24 activities per recipe
- Batching is carried out using separate, digital I/O units. Non-weighing functions such as stirring, heating, and interlocking can also be controlled
GATE-3S
- Gateway for fieldbus communication between local network and the weighing instrument
- Can be connected to most existing fieldbuses. Profibus-DP is standard, with other fieldbuses available as options
- Depending upon use of fieldbus, up to 16 weight units can be connected to one GATE 3S
WIN 3
- Housed in a rigid IP 65 stainless-steel case
- Three different levels can be monitored by relay outputs. Remaining keys are used for simple set-up and calibration of the instrument
- Analog output 0-10 V, 0-20 mA or 4-20 mA
- Communication via interfaces RS-232 or RS 485
PC-SOFTWARE
deltaCOM
- Valuable tool for configuration, calibration and servicing of Vishay Nobel industrial transmitters, indicators and weight processors
- Works under Windows 95/98/2000/NT4/ME/XP
Batchview
- A PC-based software package for remote monitoring and control of Vishay Nobel's TAD 3 Weight indicator with optional batching function
- Complete overview of the full batching sequence and setpoints. Allows control of setpoint values start, stop, halt, restart etc. Save and load batch data from a PC. Can be customized to meet special requirements
- Utility program for plotting and logging weight signal over time. Can be used with any Vishay Nobel instrument with a Modbus communication and can plot up to 6 curves in one graph, and up to 2000 points (per curve) in each scan
- Scans can be started manually, or triggered on a value
