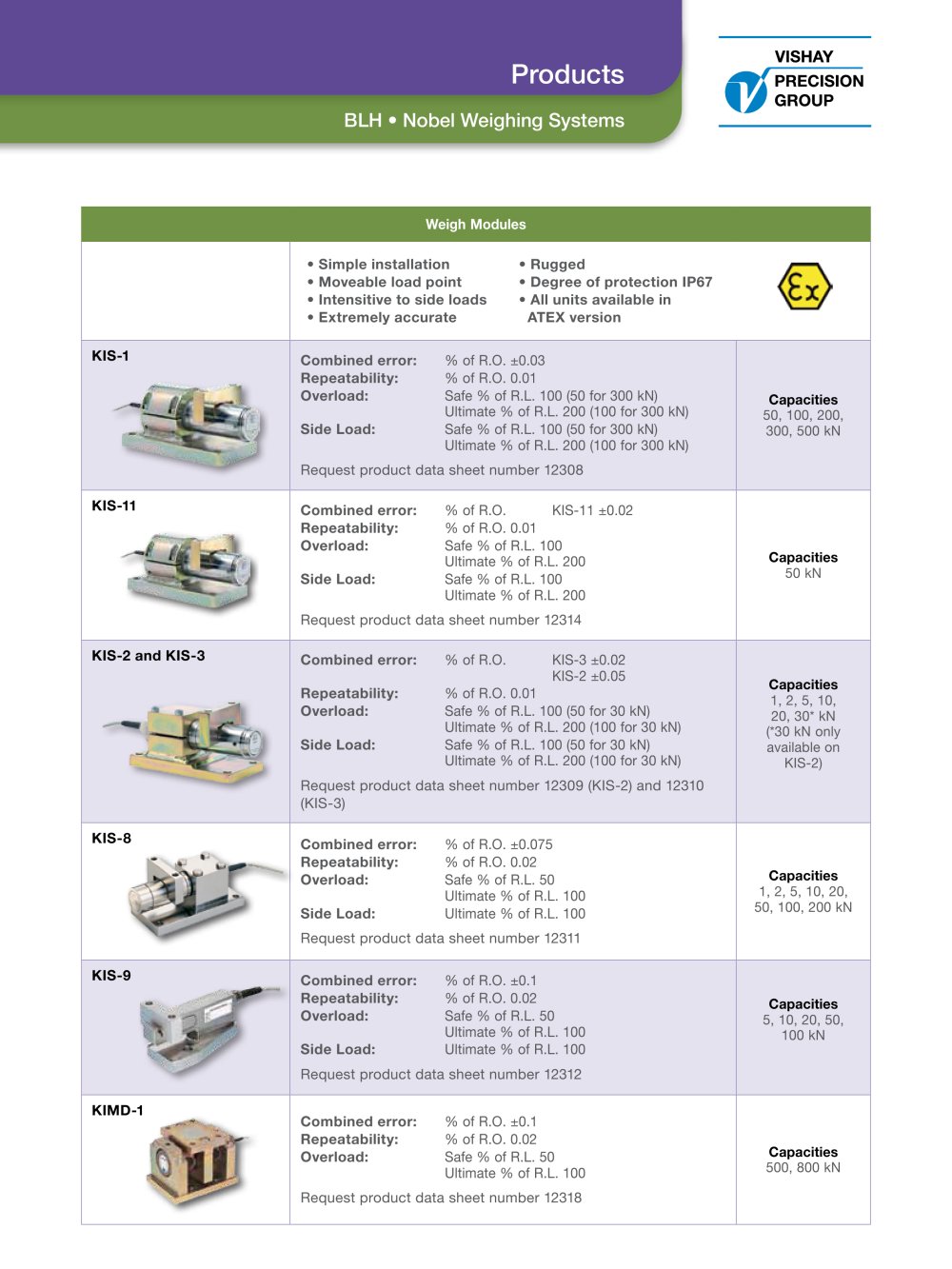

| | | KIS WEIGH MODULES | | |
| | | |
| | | • Simple Installation • Moveable Load Point • Intensitive to Side Loads • Extremely Accurate | | • Rugged • Degree of Protection IP 67 • All Units Available in ATEX Version | | |
| | | |
| | | |
| | | KIS-1 Combined error: Repeatability: Overload: Side Load: | | Capacities 50, 100, 200, 300 500 kN | | |
| | | % of R.O.±0.03 % of R.O. 0.01 Safe % of R.L. 100 (50 for 300 kN) Ultimate % of R.L. 200 (100 for 300 kN) Safe % of R.L. 100 (50 for 300 kN) Ultimate % of R.L. 200 (100 for 300 kN) | | |
| | | |
| | | |
| | | |
| | | KIS-11 and KIS-12 Combined error: Repeatability: Overload: Side Load: | | Capacities 50 kN | | |
| | | % of R.O. KIS-11 ±0.02 KIS-12 ±0.05 % of R.O. 0.01 Safe % of R.L. 100 Ultimate % of R.L. 200 Safe % of R.L. 100 Ultimate % of R.L. 200 | | |
| | | |
| | | |
| | | |
| | | KIS-2 and KIS-3 Combined error: Repeatability: Overload: Side Load: | | Capacities 1,2, 5, 10, 20, 30* kN (*30 kN only available on KIS-2) | | |
| | | % of R.O. | | KIS-3 ±0.02 KIS-2 ±0.05 | | |
| | | |
| | | |
| | | % of R.O. 0.01 Safe % of R.L. 100 (150 for 30 kN) Ultimate % of R.L. 200 (100 for 30 kN) Safe % of R.L. 100 (50 for 30 kN) Ultimate % of R.L. 200 (100 for 30 kN) | | |
| | | |
| | | |
| | | |
| | | KIS-8 Combined error: Repeatability: Overload: Side Load: | | Capacities 1,2, 5, 10, 20, 50,100, 200 kN | | |
| | | % of R.O.±0.075 % of R.O. 0.02 Safe % of R.L. 50 Ultimate % of R.L. 100 Ultimate % of R.L. 100 | | |
| | | |
| | | |
| | | KIS-9 Combined error: Repeatability: Overload: Side Load: | | Capacities 5, 10, 20, 50, 100 kN | | |
| | | % of R.O.±0.1 % of R.O. 0.02 Safe % of R.L. 50 Ultimate % of R.L. 100 Ultimate % of R.L. 100 | | |
| | | |
| | | |
| | | KIMD-1 Combined error: Repeatability: Overload: | | Capacities 500, 800 kN | | |
| | | % of R.O.±0.1 % of R.O. 0.02 Safe % of R.L. 50 Ultimate % of R.L. 100 | | |
| | | |
| | | |
| | | |
| | | KOM-1 Combined error: Repeatability: Overload: | | Capacities 10, 20, 50, 100, 200, 500 kN | | |
| | | % of R.O.±0.5 % of R.O. 0.5 Safe % of R.L. 100 Ultimate % of R.L. 200 | | |
| | | |
| | | |
| | | |
| | | * Referring to recommended loading case | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
