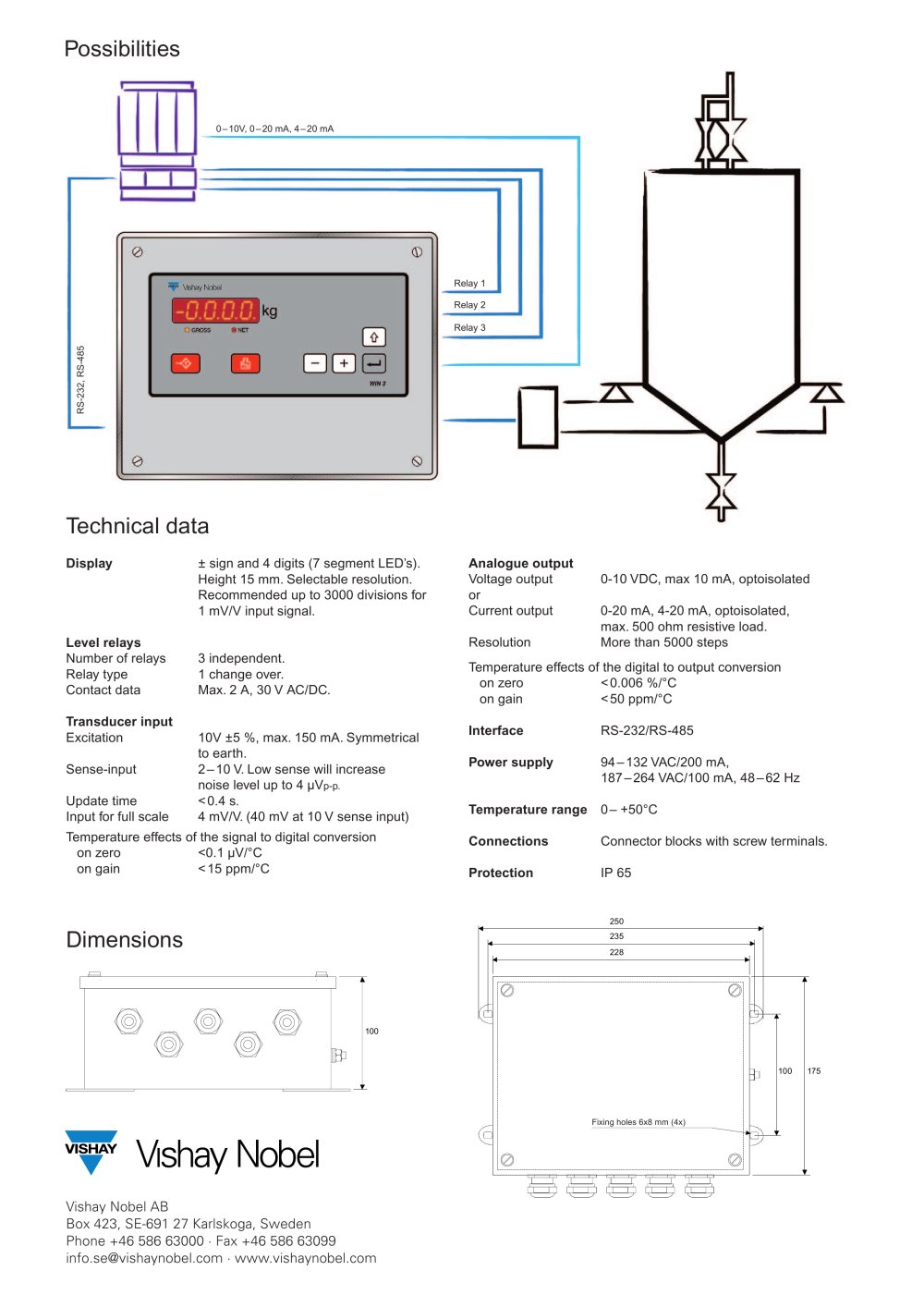

Possibilities

0–10V, 0–20 mA, 4–20 mA Relay 1Relay 2Relay 3 RS-232, RS-485

Technical data

Voltage output 0-10 VDC, max 10 mA, optoisolatedorCurrent output 0-20 mA, 4-20 mA, optoisolated, max. 500 ohm resistive load.Resolution More than 5000 stepsTemperature effects of the digital to output conversion on zero <0.006 %/°C on gain <50 ppm/°C Display ± sign and 4 digits (7 segment LED’s). Height 15 mm. Selectable resolution. Recommended up to 3000 divisions for 1 mV/V input signal. Analogue output Level relays Number of relays 3 independent. Relay type 1 change over. Contact data Max. 2 A, 30 V AC/DC. Transducer input Excitation 10V ±5 %, max. 150 mA. Symmetrical to earth. Sense-input 2–10 V. Low sense will increase noise level up to 4 µV Interface RS-232/RS-485 Power supply 94–132 VAC/200 mA, 187–264 VAC/100 mA, 48–62 Hz Temperature range 0– +50°C
p-p. Connections Connector blocks with screw terminals. Update time <0.4 s. Input for full scale 4 mV/V. (40 mV at 10 V sense input)Temperature effects of the signal to digital conversion on zero <0.1 µV/°C on gain <15 ppm/°C Protection IP 65
250235 175100

Dimensions

228 100 Fixing holes 6x8 mm (4x)

Vishay Nobel ABBox 423, SE-691 27 Karlskoga, Sweden Phone +46 586 63000 · Fax +46 586 63099info.se@vishaynobel.com · www.vishaynobel.com
