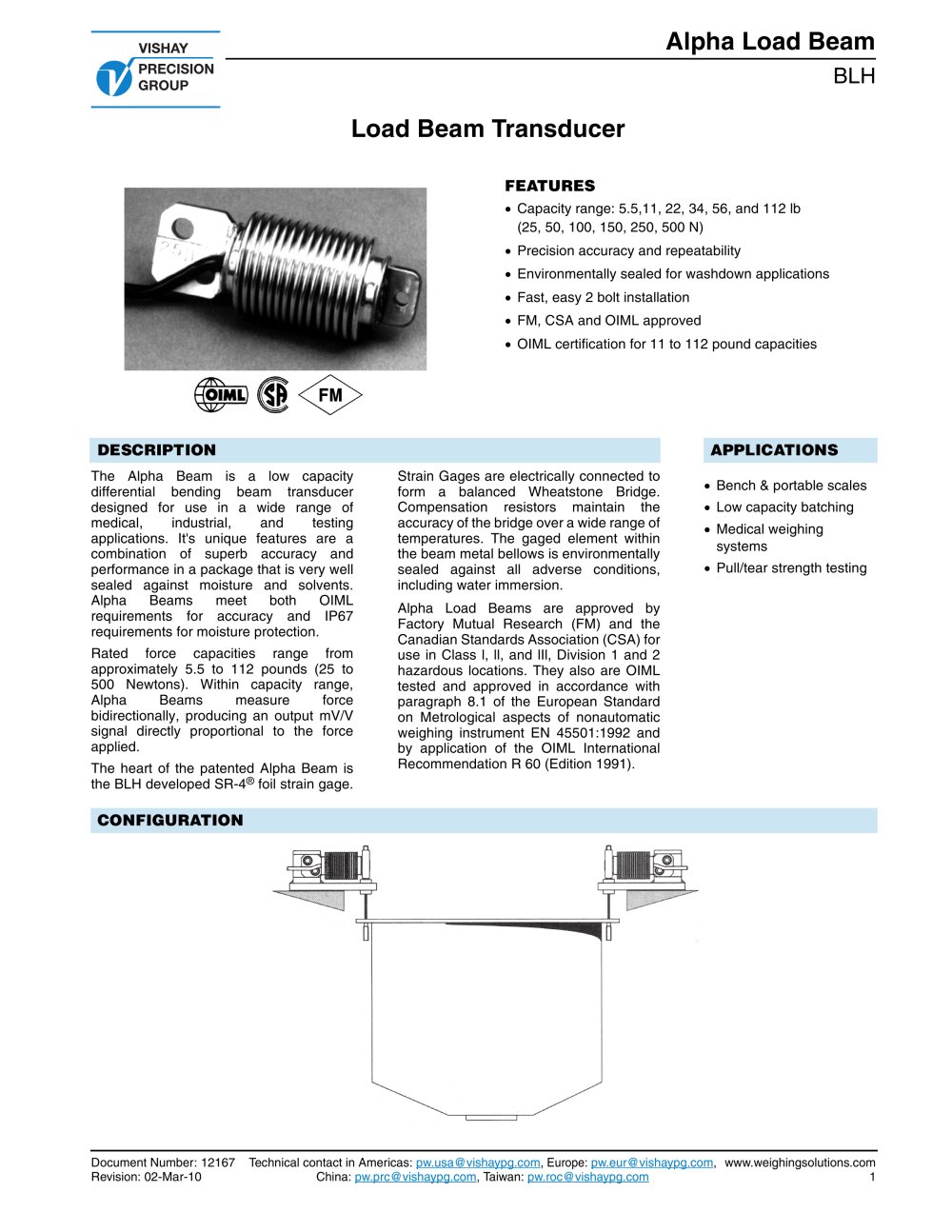

Load Beam Transducer Alpha Load Beam BLH Document Number: 12167 Technical contact in Americas: [email protected], Europe: [email protected], www.weighingsolutions.com Revision: 02-Mar-10 China: [email protected], Taiwan: [email protected] 1 FEATURES „h Capacity range: 5.5,11, 22, 34, 56, and 112 lb (25, 50, 100, 150, 250, 500 N) „h Precision accuracy and repeatability „h Environmentally sealed for washdown applications „h Fast, easy 2 bolt installation „h FM, CSA and OIML approved „h OIML certification for 11 to 112 pound capacities DESCRIPTION The Alpha Beam is a low capacity differential bending beam transducer designed for use in a wide range of medical, industrial, and testing applications. It's unique features are a combination of superb accuracy and performance in a package that is very well sealed against moisture and solvents. Alpha Beams meet both OIML requirements for accuracy and IP67 requirements for moisture protection. Rated force capacities range from approximately 5.5 to 112 pounds (25 to 500 Newtons). Within capacity range, Alpha Beams measure force bidirectionally, producing an output mV/V signal directly proportional to the force applied. The heart of the patented Alpha Beam is the BLH developed SR-4® foil strain gage. Strain Gages are electrically connected to form a balanced Wheatstone Bridge. Compensation resistors maintain the accuracy of the bridge over a wide range of temperatures. The gaged element within the beam metal bellows is environmentally sealed against all adverse conditions, including water immersion. Alpha Load Beams are approved by Factory Mutual Research (FM) and the Canadian Standards Association (CSA) for use in Class l, ll, and lIl, Division 1 and 2 hazardous locations. They also are OIML tested and approved in accordance with paragraph 8.1 of the European Standard on Metrological aspects of nonautomatic weighing instrument EN 45501:1992 and by application of the OIML International Recommendation R 60 (Edition 1991). APPLICATIONS „h Bench & portable scales „h Low capacity batching „h Medical weighing systems „h Pull/tear strength testing CONFIGURATION

Alpha Load Beam BLH Load Beam Transducer www.weighingsolutions.com Technical contact in Americas: [email protected], Europe: [email protected], Document Number: 12167 2 China: [email protected], Taiwan: [email protected] Revision: 02-Mar-10 SPECIFICATIONS PERFORMANCE Capacity 5.5,11, 22, 34, 56, 112 lb (25, 50, 100,150, 250, 500 N) Rated Output (R.O.) 3mV/V nominal Nonlinearity 0.02% R.O. Hysteresis 0.02% R.O. Repeatability 0.01% R.O. Creep (20 minutes) 0.05% R.O. TEMPERATURE Safe Temperature -15 to 175°F Compensated Range 0 to + 150°F Effect On Zero Balance 0.0008% RO/°F Effect On Rated...
