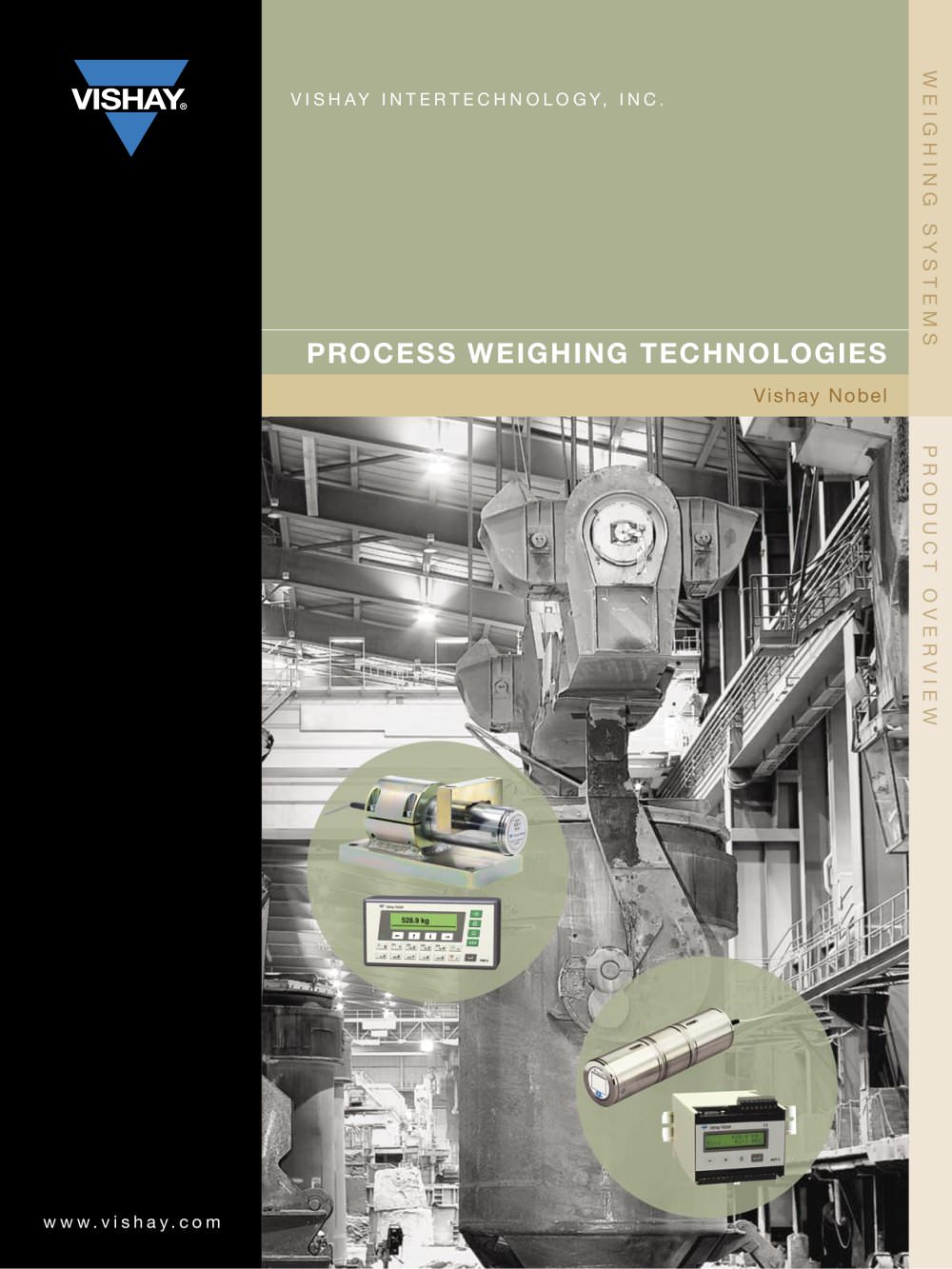

WEIGHING SYSTEMS PRODUCT OVERVIEW

Weiahina and Batching Solutions for the Process Industry The Vishay Nobel organization designs and manufactures outstanding products, and is a turnkey supplier of weighing and batching solutions for the process industry. Whether used to weigh fractions of a gram or thousands of tons, Vishay Nobel prcision weighing Systems address every imaginable weight-processing need plant-wide - from quality reactor vessels to ingrdient storage bins to clean-in-place batching processes. KIS Load Cells Simple to install, KIS Load cells are easily adapted to sp驩cial weighing applications. A moveable loading...

KIS WEIGH MODULES Simple Installation Օ Moveable Load Point Intensitive to Side Loads Օ Extremely Accurate Rugged Օ Degree of Protection IP 67 Ail Units Available in ATEX Version KIS-1 Combined error: Repeatability: Overload: Side Load: % of R.O.±0.03 % of R.O. 0.01 Safe % of R.L. 100 (50 for 300 kN) Ultimate % of R.L. 200 (100 for 300 kN) Safe % of R.L. 100 (50 for 300 kN) Ultimate % of R.L. 200 (100 for 300 kN) Capacities 50, 100, 200, 300 500 kN KIS-11 and KIS-12 Combined error: Repeatability: Overload: Side Load: %ofR.O. KIS-11 ±0.02 KIS-12 ±0.05 % of R.O. 0.01 Safe % of R.L. 100 Ultimate...

Weiahina and Batching Solutions for the Process Industry LOAD CELLS ) KISD-6 Combine! error: % of R.O.±0.1 Repeatability: % of R.O. 0.02 Overload: Safe % of R.L. 100 Ultimate % of R.L. 200 Side Load: Safe % of R.L. 100 Ultimate % of R.L. 200 Capacities 50, 100, 200, 400, 1000 kN ^^^^^^^ KOSD Combined error: % of R.O.±1 Repeatability: % of R.O. 0.5 Overload: Safe % of R.L. 100 Ultimate % of R.L. 200 Side Load: Safe % of R.L. 100 Ultimate % of R.L. 200 Capacities 1000, 2000 kN KOSD-40 Combined error: % of R.O.±0.1 Repeatability: % of R.O. 0.5 Overload: Safe % of R.L. 100 Ultimate % of R.L. 200...

TAD3 - Very accurate weight processor for panel mounting - Excellent connectivity and operator interface - Customized software - Easy set-up via front panel or PC - Comprehensive batching and recipe handling capacity in two versions Batching of up to six components in coarse and fine feeding phases; the extended Recipe version storing up to 30 recipes and handling up 24 activities per recipe - Batching is carried out using separate, digital I/O units. Non-weighing functions such as stirring, heating, and interlocking can also be controlled GATE-3S - Gateway for fieldbus communication between...

VISHAY MEASUREMENTS GROUP Vishay Transducers: Vishay Nobel BLH Օ Celtron Sensortronics® Օ Tedea-Huntleigh Vishay Micro-Measurements: Vishay Micro-Measurements BLH SR-4® VISHAY One ofthe World's Largest Manufacturers of Discrըte Semiconductors and Passive Components VISHAY TRANSDUCERS AMERICAS SYSTEMS PRODUCTS VISHAY TRANSDUCERS CANADA i-z o o 10 LU _I < LU g Q _l OC o 3 N USA PH: +1-781-298-2200 FAX: +1-781-762-3988 E-MAIL: [email protected] PH: +1-800-567-6098 (TOLL FREE) +1-416-251-2554 FAX: +1-416-251-2690 E-MAIL: [email protected] VISHAY TRANSDUCERS TAIWAN* VISHAY TRANSDUCERS CHINA 15...
