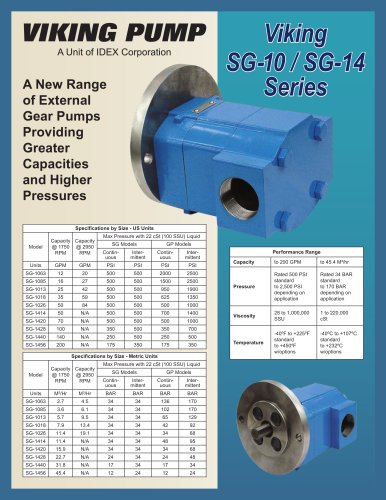

VKING PUMP
A Unit of IDEX Corporation
Viking
SG-10 / SG-14 Series
A New Range of External Gear Pumps Providing
Greater
Capacities and Higher Pressures
Specifications by Size - US Units
Model
Capacity @ 1750 RPM
Capacity @2950 RPM
Max Pressure with 22 cSt (100 SSU) Liquid
SG Models
GP Models
Continʭuous
Intermittent
Continͭuous
Intermittent
Units
GPM
GPM
PSI
PSI
PSI
PSI
SG-1063
12
20
500
500
2000
2500
SG-1085
16
27
500
500
1500
2500
SG-1013
25
42
500
500
950
1900
SG-1018
35
59
500
500
625
1350
SG-1026
50
84
500
500
500
1000
SG-1414
50
N/A
500
500
700
1400
SG-1420
70
N/A
500
500
500
1000
SG-1428
100
N/A
350
500
350
700
SG-1440
140
N/A
250
500
250
500
SG-1456
200
N/A
175
350
175
350
Specifications by Size - Metric Units
Capacity @ 1750 RPM
Capacity @2950 RPM
Max Pressure with 22 cSt (100 SSU) Liquid
SG Models
GP Models
Continͭuous
Intermittent
Continͭuous
Intermittent
Units
M3/Hr
M3/Hr
BAR
BAR
BAR
BAR
SG-1063
2.7
4.5
34
34
136
170
SG-1085
3.6
6.1
34
34
102
170
SG-1013
5.7
9.5
34
34
65
129
SG-1018
7.9
13.4
34
34
42
92
SG-1026
11.4
19.1
34
34
34
68
SG-1414
11.4
N/A
34
34
48
95
SG-1420
15.9
N/A
34
34
34
68
SG-1428
22.7
N/A
24
34
24
48
SG-1440
31.8
N/A
17
34
17
34
SG-1456
45.4
N/A
12
24
12
24
Performance Range
Capacity
to 200 GPM
to 45.4 M3/hr
Pressure
Rated 500 PSI standard to 2,500 PSI depending on application
Rated 34 BAR standard to 170 BAR depending on application
Viscosity
28 to 1,000,000 SSU
1 to 220,000 cSt
Temperature
-40°F to +225°F standard to +450°F w/options
-40°C to +107°C standard to +232°C w/options
