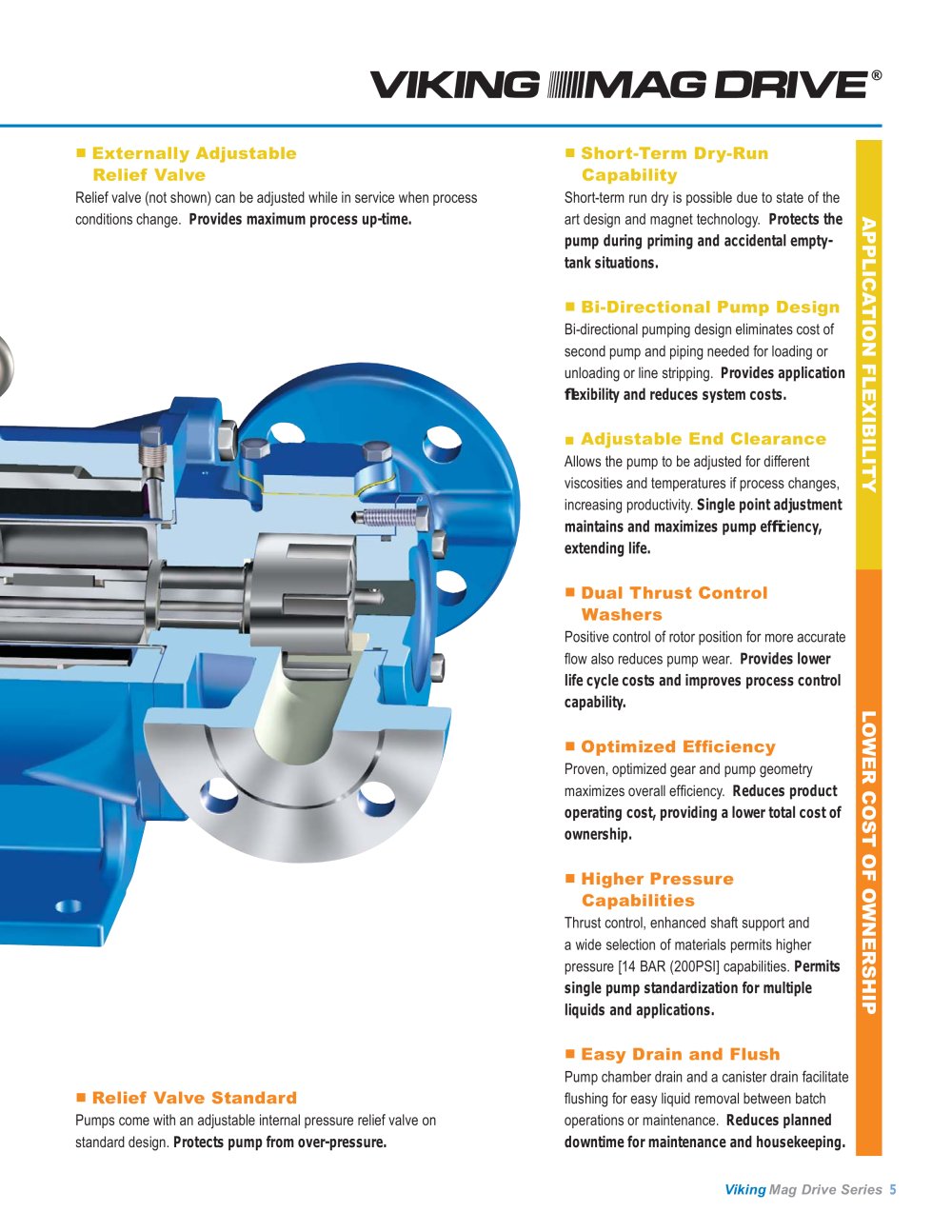

Features & Benefits
No other mag-drive industrial gear pump offers all these benefits:
Reversible Flow Motor Speed Operation
Dual-direction thrust control and cooling
enable the pump flow to be reversed,
by reversing the direction of rotation. Optimized flow geometry allows operation at
motor speeds on many liquids to eliminate a
speed reducer and minimize the unit footprint. Short-term run dry is possible due to its rotor thrust control and long bearing spread.Protects pump during priming and accidental empty-tank situations.
(Consult factory for details.)
Metric or U.S.Design Close-Coupled or Long-Coupled Design
DIN 2501 or ANSI B16.5 compatible flanges,
IEC-B5 or NEMA-C compatible motor
flanges,and metric or U.S.-dimensioned
bearing carrier shafts ensure compatibility
with local standards worldwide. Close-couples to motors up to 15 kW (20 HP)to simplify mounting and eliminate a shaft
coupling,guard and
shaft alignment.An
optional bearing carrier (shown here) allows
coupling to a speed reducer,
gear motor manufacturer,or
standard motor where needed.
Flanged Ports
Flanges are standard,offering better sealing
reliability than threaded ports.In-line ports
are easy to pipe,and can be rotated 90°
to vertical or horizontal positions.
Adjustable End Clearance
Head shims allow adjustment of end clearance to maximize efficiency on low or
high viscosity fluids,and to compensate for wear over time.
Pressure Relief Standard
An integral pressure relief valve (not shown)
is standard equipment.
4 2
Easy Drain and Flush
For batch operations or prior to maintenance,
a pump chamber drain and a canister drain
allow removal of liquid and facilitates flushing.
Designed for Ease of Maintenance
Should the pump ever require maintenance,it was designed for easy draining,disassembly,
repair and reassembly,with a minimal number
of parts,and no special tools.
3
Viking Mag Drive Series 855 5
