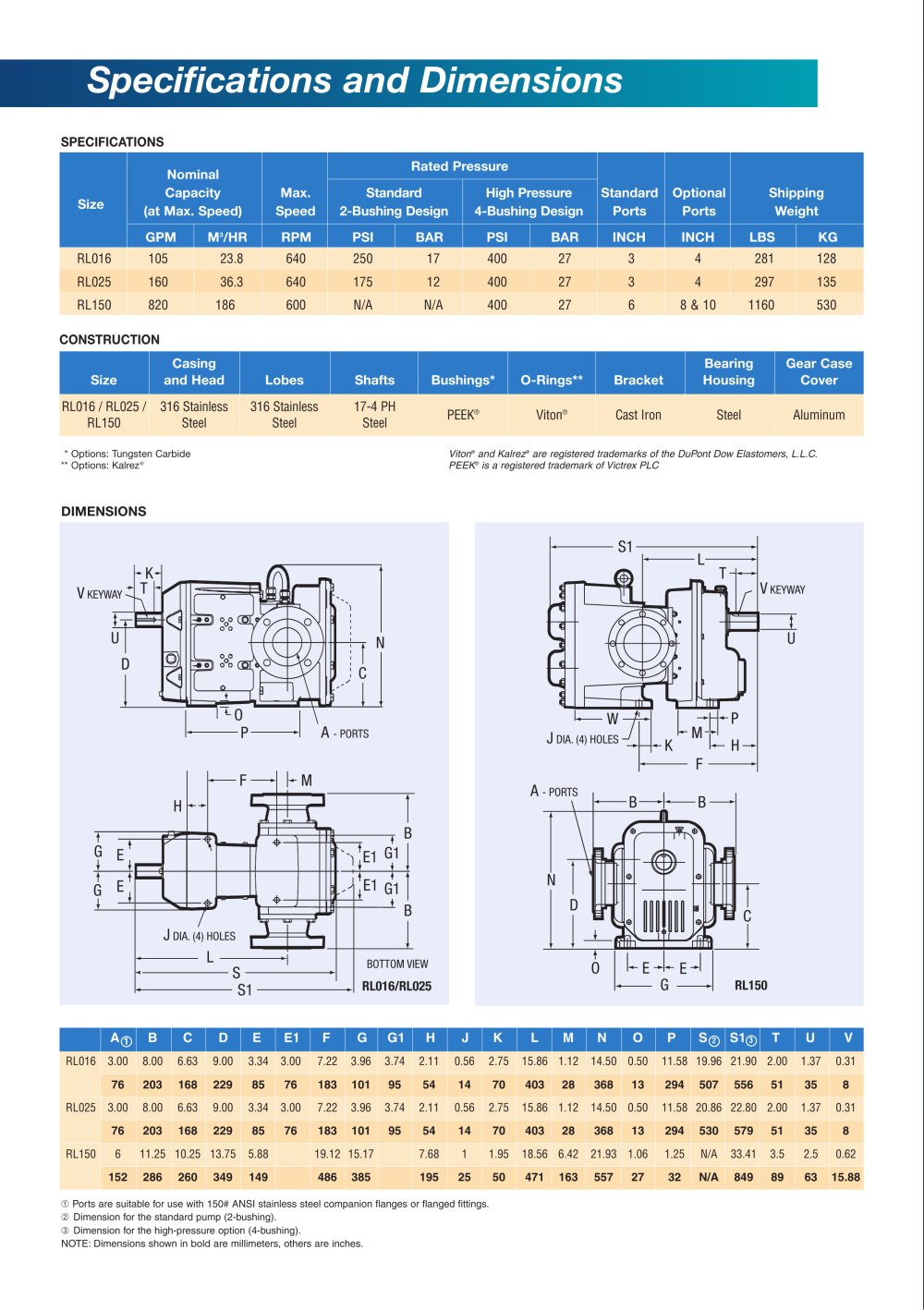

| | | Specifications and Dimensions | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | Rated Pressure Standard High Pressure 2-Bushing Design 4-Bushing Design | | |
| | | Nominal Capacity (at Max. Speed) | | |
| | | Standard Optional Shipping Ports Ports Weight | | |
| | | Max. Speed | | |
| | | Size | | |
| | | |
| | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | GPM | M3/HR | RPM | | BAR | PSI | BAR | INCH | INCH | LBS | KG | | | | RL016 | 105 | 23.8 | 640 | 250 | 17 | 400 | 27 | 3 | 4 | 281 | 128 | | | | RL025 | 160 | 36.3 | 640 | 175 | 12 | 400 | 27 | 3 | 4 | 297 | 135 | | | | RL150 | 820 | 186 | 600 | N/A | N/A | 400 | 27 | 6 | 8 & 10 | 1160 | 530 | | | | | | | | | | | | | | | | | | | |
| | | |
| | | CONSTRUCTION | | |
| | | |
| | | | | | | | | | | | | | | | | | Casing | | | | | | Bearing | Gear Case | | | | Size | and Head | Lobes | Shafts | Bushings* | O-Rings** | Bracket | Housing | Cover | | | | RL016 / RL025 / RL150 | 316 Stainless Steel | 316 Stainless Steel | 17-4 PH Steel | PEEK® | Viton® | Cast Iron | Steel | Aluminum | | | | | | | | | | | | | | | | |
| | | |
| | | * Options: Tungsten Carbide * Options: Kalrez® | | Viton® and Kalrez® are registered trademarks of the DuPont Dow Elastomers, L.L.C. PEEK® is a registered trademark of Victrex PLC | | |
| | | |
| | | DIMENSIONS | | |
| | | |
| | | V KEYWAY E U | | |
| | | N | | |
| | | |
| | | |
| | | C | | |
| | | |
| | | A - PORTS | | |
| | | P | | |
| | | |
| | | |
| | | Km | | |
| | | F | | |
| | | |
| | | |
| | | H | | |
| | | |
| | | B | | |
| | | |
| | | G E i_ | | |
| | | G1 | | |
| | | j I *w | | |
| | | |
| | | B | | |
| | | |
| | | |
| | | |
| | | 3L | | |
| | | J DIA. (4) HOLES L — | | |
| | | |
| | | BOTTOM VIEW RL016/RL025 | | |
| | | |
| | | ■S--S1 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | A<1 | B | C D E | E1 | F | G | G1 | H | J K L M | N | O P | S® S1© | T U V | | | | | | | | RL016 | 3.00 | 8.00 | 6.63 | 9.00 | 3.34 | 3.00 | 7.22 | 3.96 | 3.74 | 2.11 | 0.56 | 2.75 | 15.86 | 1.12 | 14.50 | 0.50 | 11.58 | 19.96 | 21.90 | 2.00 | 1.37 | 0.31 | | | | | 76 | 203 | 168 | 229 | 85 | 76 | 183 | 101 | 95 | 54 | 14 | 70 | 403 | 28 | 368 | 13 | 294 | 507 | 556 | 51 | 35 | 8 | | | | RL025 | 3.00 | 8.00 | 6.63 | 9.00 | 3.34 | 3.00 | 7.22 | 3.96 | 3.74 | 2.11 | 0.56 | 2.75 | 15.86 | 1.12 | 14.50 | 0.50 | 11.58 | 20.86 | 22.80 | 2.00 | 1.37 | 0.31 | | | | | 76 | 203 | 168 | 229 | 85 | 76 | 183 | 101 | 95 | 54 | 14 | 70 | 403 | 28 | 368 | 13 | 294 | 530 | 579 | 51 | 35 | 8 | | | | RL150 | 6 | 11.25 | 10.25 | 13.75 | 5.88 | | 19.12 | 15.17 | | 7.68 | 1 | 1.95 | 18.56 | 6.42 | 21.93 | 1.06 | 1.25 | N/A | 33.41 | 3.5 | 2.5 | 0.62 | | | | | 152 | 286 | 260 | 349 | 149 | | 486 | 385 | | 195 | 25 | 50 | 471 | 163 | 557 | 27 | 32 | N/A | 849 | 89 | 63 | 15.88 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | © Ports are suitable for use with 150# ANSI stainless steel companion flanges or flanged fittings. © Dimension for the high-pressure option (4-bushing). NOTE: Dimensions shown in bold are millimeters, others are inches. | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
