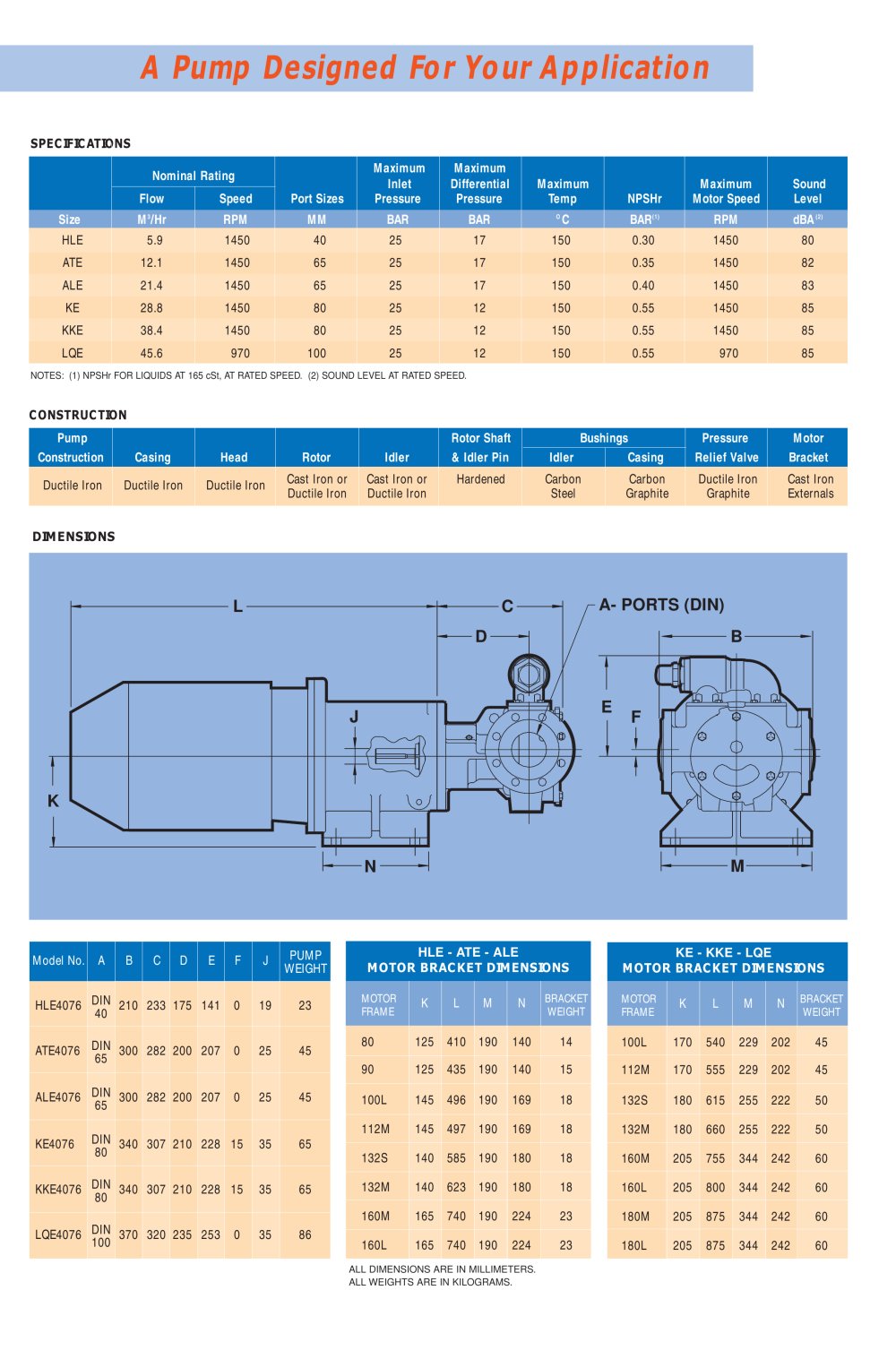

A Pump Designed For Your Application

SPECIFICATIONS


			Nominal Rating			Maximum Inlet	M aximum Differential	_M _aximum		_M _aximum	_Sound
			Flow	Speed	Port Sizes	Pressure	Pressure	Temp	NPSHr	Motor Speed	Level
	■	Size	M³/Hr	RPM		BAR	BAR	^OC	BAR¹"	RPM	dBA¹²¹

		HLE	5.9	1450	40	25	17	150	0.30	1450	80
		ATE	12.1	1450	65	25	17	150	0.35	1450	82
		ALE	21.4	1450	65	25	17	150	0.40	1450	83
		KE	28.8	1450	80	25	12	150	0.55	1450	85
		KKE	38.4	1450	80	25	12	150	0.55	1450	85
		LQE	45.6	970	100	25	12	150	0.55	970	85
	NOTES: (1) NPSHr FOR LIQUIDS AT 165 cSt, AT RATED SPEED. (2) SOUND LEVEL AT RATED SPEED
	CONSTRUCTION
		'ump					Rotor Shaft	Bushings		Pressure	M otor
	Construction		Casing	Head	Rotor	Idler	& Idler Pin	Idler	Casing	Relief Valve	Bracket
	Ductile Iron		Ductile Iron	Ductile Iron	Cast Iron or Ductile Iron	Cast Iron or Ductile Iron	Hardened	Carbon Steel	Carbon Graphite	Ductile Iron Graphite	Cast Iron Externals

DIMENSIONS


	Model No.	A	B	C	D	E	F	J	PUMP			HLE	- ATE - ALE						KE	KKE	- LQE
	Model No.	A	B	C	D	E	F	J	WEIGHT		MOTOR BRACKET DIMENSIONS							MOTOR BRACKET DIMENSIONS
	HLE4076	DIN 40	210	233	175	141	0	19	23		MOTOR FRAME	K	L	M	N	BRACKET WEIGHT		MOTOR FRAME	KLMN				BRACKET WEIGHT
	ATE4076	DIN 65	300	282	200	207	0	25	45		80	125	410	190	140	14		100L	170	540	229	202	45
		DIN 65									90	125	435	190	140	15		112M	170	555	229	202	45
	ALE4076	DIN 65	300	282	200	207	0	25	45		100L	145	496	190	169	18		132S	180	615	255	222	50
		DIN 80									112M	145	497	190	169	18		132M	180	660	255	222	50
	KE4076		340	307	210	228	15	35	65
											132S	140	585	190	180	18		160M	205	755	344	242	60
	KKE4076	DIN 80	340	307	210	228	15	35	65		132M	140	623	190	180	18		160L	205	800	344	242	60
											160M	165	740	190	224	23		180M	205	875	344	242	60
	LQE4076	DIN 100	370	320	235	253	0	35	86		160L	165	740	190	224	23		180L	205	875	344	242	60

ALL DIMENSIONS ARE IN MILLIMETERS. ALL WEIGHTS ARE IN KILOGRAMS.
