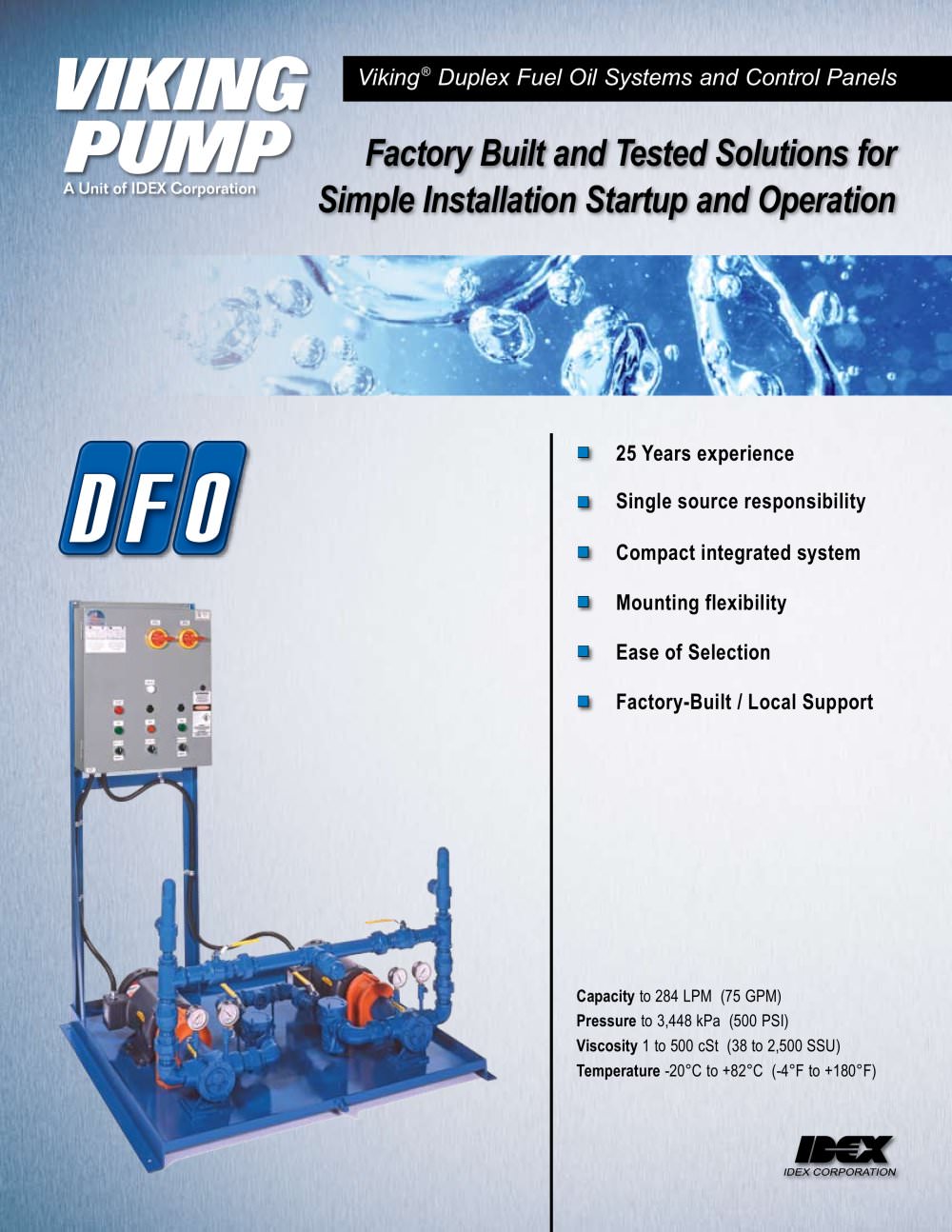

Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 1

Capacity to 284 LPM (75 GPM) Pressure to 3,448 kPa (500 PSI) Viscosity 1 to 500 cSt (38 to 2,500 SSU) Temperature -20 C to +82 а C (-4 F to +180 а F) >

Open the catalog to page 1
Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 2

Factory engineered and built to order Duplex Fuel Oil systems and control panels for oil transfer applications like: Fueling diesel generators for backup electrical power generation Օ Boosting low pressure fuel oil on oil-fired boilers and oil-fired furnaces Oil filtration/recirculation to ensure clean and / or water-free oil Օ Fuel oil transfer from storage to day tank . > Experience Ֆ Viking Pump have been worldwide leaders of PD pumping solutions since 1911 and have over 25 years of engineering and manufacturing DFO systems. One Source-One Responsibility Ֆ With a Viking DFO set we...

Open the catalog to page 2
Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 3

Viking Heavy Duty Positive Displacement Rotary Gear or Spur Gear Pumps (2)Flexible couplings with Orange Peel OSHA guards (2) Motors - Totally Enclosed Fan Cooled, foot mounted, NEMA, UL, CSA (2) Common steel baseplate shall be made of heavy gauge steel plate with 1 1/2 high drip-lip and 1/2Ԕ NPT drain (1) > Viking Lid-Ease Basket Strainers Suction Line Equipment > Viking Rotary Gear orSpur Gear PumpsSuction Header with Isolation Ball Valves ΢֪ Viking Lid-Ease Basket Strainers, cast iron body, 40 mesh stainless steel basket (2)▪ Ball valves, 600 PSI pressure rated, full port, two piece...

Open the catalog to page 3
Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 4

AӔ or BӔ A Pressure Switch - Single Stage, 20-200 PSI (41.4 to 1379.3 kPa) in EEMAC1 enclosure, installed > B Pressure Switch - Dual Stage - High and Low, 6-200 PSI (41.4 to 1379.3 kPa) in EEMAC1 enclosure, installed > C Pressure Control Valve Bronze body, Buna-N diaphragm, 0 to 75 PSI (0 to 517.2 kPa) c/w two shut off and one by-pass valve, installed > DӔ or EӔ D Flow Switch - Low Pressure to 100 PSI , NEMA 1, brass housing, SS vane, with junction box, c/w 120VAC, SPDT switch, installed > E Flow Switch - High Pressure to 1450 PSI , NEMA 7, brass housing, SS vane, less junction box, c/w...

Open the catalog to page 4
Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 5

NEMA/CSA 1 enclosure A Motor run signal NO/NC - 1 per pump Օ Single pole circuit breaker (2) c/w through the door operation (120 volt) or individual disconnect switches, motor protectors and transformer (208-575 volt) B Motor tripped red lights (2) C Motor tripped NO/NC signals (2) Magnetic motor starters (2) D High pressure cut out - red pilot light and manual reset Օ Hand-Off-Auto selector switches (2) Low pressure cut out - red pilot light and override timers (2) (manual reset) Power on pilot light (white) E Օ Run pilot light (green) (2) F High pressure alarm signal Terminal Strip G Low...

Open the catalog to page 5
Viking Pump - Form333_rev B - Duplex Fuel Oil Systems - 6

A Unit of IDEX Corporation Viking Pump has been a pump industry leader and innovator since its founding in 1911. We continue to build on our ever growing experience delivering innovative new pumping solutions, including custom designs, to many thousands of customers who use millions of Viking > Viking uses ISO9001-2000, ISO14001, Six-Sigma, and Lean/Kaizen in its worldwide manufacturing and assembly processes to remove waste, reduce development costs, and deliver superior products on schedule. Dedicated Viking foundries and manufacturing facilities utilize state-of-the-art CNC equipment to...

Open the catalog to page 6
