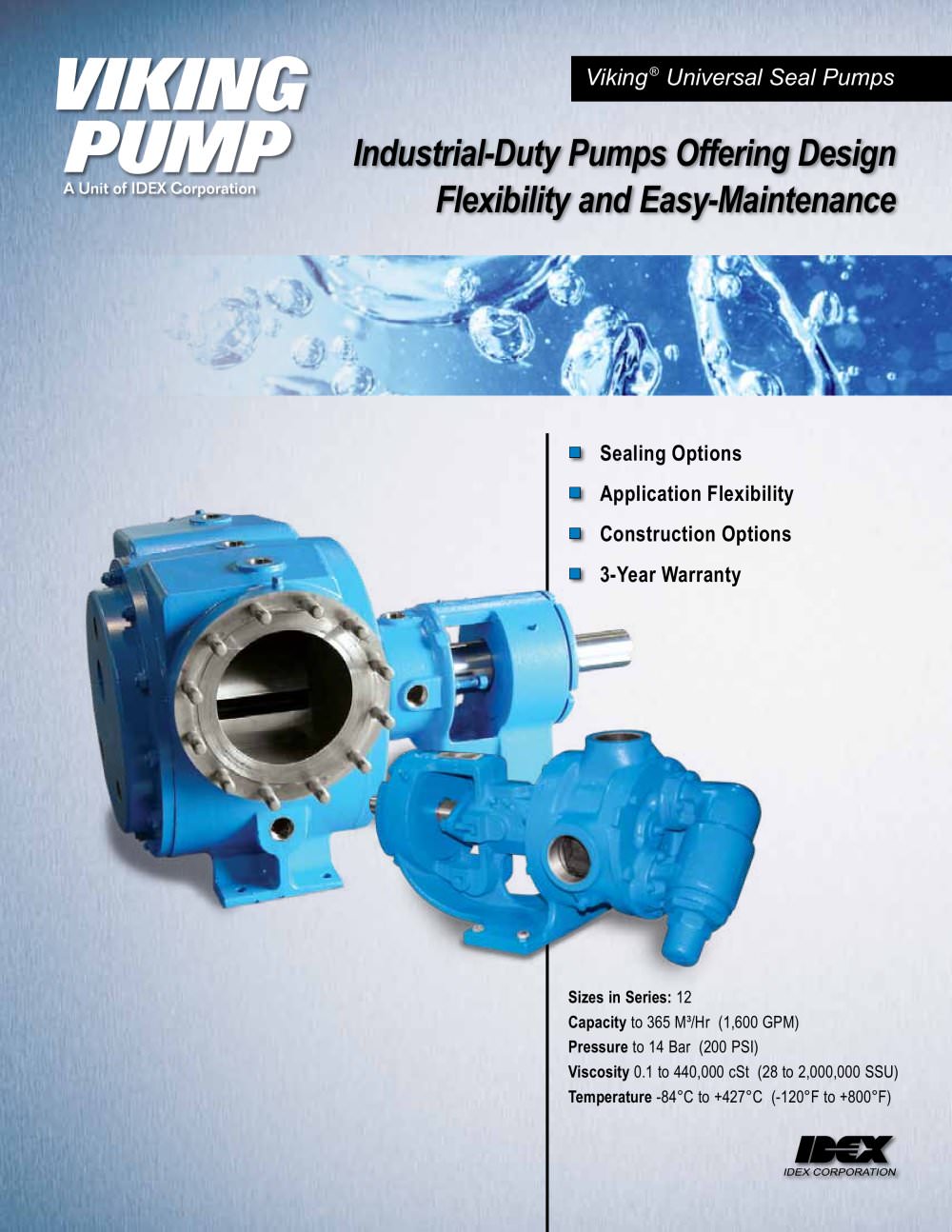

Sizes in Series: 12 Capacity to 365 M³/Hr (1,600 GPM) Pressure to 14 Bar (200 PSI) Viscosity 0.1 to 440,000 cSt (28 to 2,000,000 SSU) Temperature -84°C to +427°C (-120°F to +800°F) Sealing Options Application Flexibility Construction Options 3-Year Warranty ¡ ¡ ¡ ¡ Viking® Universal Seal Pumps Industrial-Duty Pumps Offering Design Flexibility and Easy-Maintenance

Open the catalog to page 1
Universal Seal Pumps - 2

2 Viking Universal Seal Series Viking® Universal Seal Advantages Back Pullout Seal Design Readily Accepts : • Packing • Component seal • Cartridge mechanical seal • Cartridge lip seal A Variety of Jacketing Options To Easily Handle Fluids That Require Either Heating or Cooling : • Large jacketing areas allow rapid heating and cooling capabilities for faster startup. • Jacketing options available for all critical areas of pump include bracket, casing, flanges, head and relief valve • Standard jacketed pumps feature jacketed head and bracket making them ideal for applications like asphalt and...

Open the catalog to page 2
Universal Seal Pumps - 3

Viking Universal Seal Series 3 Chemicals: • Plastics / Resins / Rubbers • Petrochemicals • Polyurethane Foam Products • Paint and Applied Products • Personal Care Products • Soaps and Cleaning Compounds • Ethyl Alcohol Manufacturing • Printing Inks • Synthetic Dyes and Pigments • Plastic and Rubber Products • Drugs / Pharmaceutical • Chemicals and Allied Products Wholesaling • Explosives • Other Basic Organic and Inorganic Chemicals Food Processing: • Grain and Oilseed • Chocolate and Confectionery • Animal Food • Sugar • Beverage • Food Processing • Dairy Products Refined Petroleum & Coal:...

Open the catalog to page 3
Universal Seal Pumps - 4

4 Viking Universal Seal Series Viking® Universal Seal Benefits EASY INSTALLATION ADVANCED DURABILITY ¡ Drive Options Multiple drive options are available including reducer, belt drive, and variable speed drive. Drive configurations provide easy solutions to match customer requirements for quick, easy installation. ¡ Seal Maintenance Enlarged bearing housing and drive end access to seal allows quick, easy replacement without removing pump or rotor. Minimizes downtime and simplifies access, shortening service time to maximize uptime. ¡ Rotatable Casing Universal Seal pumps are equipped with...

Open the catalog to page 4
Universal Seal Pumps - 5

Viking Universal Seal Series 5 APPLICATION FLEXIBILITY LOWER COST OF OWNERSHIP ¡ Optimized Efficiency Proven, optimized gear and pump geometry maximizes overall efficiency. Reduces product lost, maximizing process volume for a better bottom line providing a lower total cost of ownership. ¡ In-Line Serviceability Back pull-out seal design with no special tools required, eliminates removal of pump from system for servicing. Reduces downtime and provides maximum productivity for a lower total cost of ownership. ¡ Gentle Fluid Handling Low-shear, non-pulsating, cushioned pumping for a wide...

Open the catalog to page 5
Universal Seal Pumps - 6

6 Viking Universal Seal Series Viking® Universal Seal Materials of Construction Universal Seal Series Construction Component Cast Iron Non-Jacketed Series 124A/AE, 4124A/AE, 4124B, Jacketed Series 224A, 4224A, 224AE, 4224AE, 4224B, 324A , 4324A Ductile Iron Non-Jacketed Series 126A , 4126A Jacketed Series 226A & 4226A Steel Externals Non-Jacketed Series 123A, 4123A, 323A, 4323A Jacketed Series 223A, 4223A Stainless Steel Non-Jacketed Series 127A, 4127A, 327A, 4327A Jacketed Series 227A, 4227A Casing Cast Iron ASTM A48, Class 35B Ductile Iron ASTM A536, Grade 60-40-18 Steel ASTM A216, Grade...

Open the catalog to page 6
Universal Seal Pumps - 13

Viking Universal Seal Series 13 Dimensions Dimensions - QS Size - All Materials of Construction - Non-Jacketed Series 124A, 4124A, 126A, 4126A, 123A, 4123A, 127A & 4127A Dimensions - QS Size - All Materials of Construction - Jacketed Series 224A, 4224A, 226A, 4226A, 223A, 4223A, 227A & 4227A Dimensions in inches (mm) Model Number BB* DD GG Packed Mechanical Seal IN (mm) IN (mm) IN (mm) QS224A QS4224A QS226A QS4226A 1.25 (31.75) 5.57 (141.48) 4.12 (105) QS223A QS4223A 1 (25.4) 6.06 (152.93) 3.75 (95.25) QS227A QS4227A

Open the catalog to page 13
Universal Seal Pumps - 15

Viking Universal Seal Series 15 Typical Product Configuration by Size Note: Ports shown are not necessarily the standard configuration. H & HL (H4124A shown) K & KK (K123 shown) L (L124A shown) LQ (LQ4124A shown) LL (LL4126A shown) LS (LS124A shown) Q (Q124A shown) QS (QS4124A shown) N (N4324A shown) R (R324A shown) RS (RS324A shown)

Open the catalog to page 15
Universal Seal Pumps - 16

© Viking Pump, Inc. Copyright 2008 Printed in U.S.A. 10/2007 Form No. 631-B A Unit of IDEX Corporation Worldwide Leader Since 1911 for Positive Displacement Pumping Solutions for Industrial, OEM, and Sanitary Applications. VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street, P.O. Box 8 Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local Authorized Viking Pump Distributor or contact Viking at: Innovation and Experience Viking Pump has been a pump...
