Universal Seal Pumps - 7 / 16 Pages

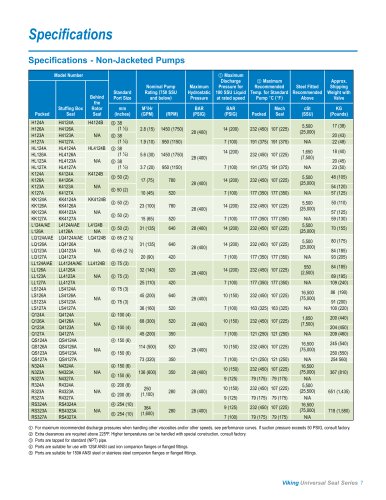

Viking Universal Seal Series 7
Specifications
Specifications - Non-Jacketed Pumps
Model Number
Standard
Port Size
Nominal Pump
Rating (750 SSU
and below)
Maximum
Hydrostatic
Pressure
‡@ Maximum
Discharge
Pressure for
100 SSU Liquid
at rated speed
‡A Maximum
Recommended
Temp. for Standard
Pump °C (°F)
Steel Fitted
Recommended
Above
Approx.
Shipping
Weight with
Valve
Packed
Stuffing Box
Seal
Behind
the
Rotor
Seal
mm
(Inches)
M³/Hr
(GPM) (RPM)
BAR
(PSIG)
BAR
(PSIG) Packed
Mech
Seal
cSt
(SSU)
KG
(Pounds)
H124A H4124A H4124B ‡B 38
(1 ½) 2.8 (15) 1450 (1750) 28 (400) 14 (200) 232 (450) 107 (225) 5,500
(25,000)
H126A H4126A 17 (38)
H123A H4123A N/A ‡D 38
(1 ½)
20 (43)
H127A H4127A 1.9 (10) 950 (1150) 7 (100) 191 (375) 191 (375) N/A 22 (48)
HL124A HL4124A HL4124B ‡B 38
(1 ½) 5.6 (30) 1450 (1750) 28 (400)
14 (200) 232 (450) 107 (225) 1,650
(7,500)
HL126A HL4126A 18 (40)
HL123A HL4123A N/A ‡D 38
(1 ½)
20 (45)
HL127A HL4127A 3.7 (20) 950 (1150) 7 (100) 191 (375) 191 (375) N/A 23 (50)
K124A K4124A K4124B ‡B 50 (2) 17 (75) 780 28 (400) 14 (200) 232 (450) 107 (225) 5,500
(25,000)
K126A K4126A 48 (105)
K123A K4123A N/A ‡D 50 (2) 54 (120)
K127A K4127A 10 (45) 520 7 (100) 177 (350) 177 (350) N/A 57 (125)
KK124A KK4124A KK4124B ‡B 50 (2) 23 (100) 780 28 (400) 14 (200) 232 (450) 107 (225) 5,500
(25,000)
KK126A KK4126A 50 (110)
KK123A KK4123A N/A ‡D 50 (2) 57 (125)
KK127A KK4127A 15 (65) 520 7 (100) 177 (350) 177 (350) N/A 59 (130)
L124A/AE L4124A/AE L4124B ‡B 50 (2) 31 (135) 640 28 (400) 14 (200) 232 (450) 107 (225) 5,500
L126A L4126A N/A (25,000) 70 (155)
LQ124A/AE LQ4124A/AE LQ4124B ‡C 65 (2 ½)
31 (135) 640 28 (400) 14 (200) 232 (450) 107 (225) 5,500
(25,000)
LQ126A LQ4126A 80 (175)
LQ123A LQ4123A N/A ‡D 65 (2 ½) 84 (185)
LQ127A LQ4127A 20 (90) 420 7 (100) 177 (350) 177 (350) N/A 93 (205)
LL124A/AE LL4124A/AE LL4124B ‡C 75 (3)
32 (140) 520 28 (400) 14 (200) 232 (450) 107 (225) 550
(2,500)
LL126A LL4126A 84 (185)
LL123A LL4123A N/A ‡D 75 (3) 89 (195)
LL127A LL4127A 25 (110) 420 7 (100) 177 (350) 177 (350) N/A 109 (240)
LS124A LS4124A
N/A
‡C 75 (3)
45 (200) 640 28 (400) 10 (150) 232 (450) 107 (225) 16,500
(75,000)
LS126A LS4126A 86 (190)
LS123A LS4123A ‡D 75 (3) 91 (200)
LS127A LS4127A 36 (160) 520 7 (100) 163 (325) 163 (325) N/A 100 (220)
Q124A Q4124A
N/A
‡C 100 (4)
68 (300) 520 28 (400) 10 (150) 232 (450) 107 (225) 1,650
(7,500)
Q126A Q4126A 200 (440)
Q123A Q4123A ‡D 100 (4) 204 (450)
Q127A Q4127A 45 (200) 350 7 (100) 121 (250) 121 (250) N/A 209 (460)
QS124A QS4124A
N/A
‡C 150 (6)
114 (500) 520 28 (400) 10 (150) 232 (450) 107 (225) 16,500
(75,000)
QS126A QS4126A 245 (540)
QS123A QS4123A ‡D 150 (6) 250 (550)
QS127A QS4127A 73 (320) 350 7 (100) 121 (250) 121 (250) N/A 254 560)
N324A N4324A
N/A
‡C 150 (6)
136 (600) 350 28 (400) 10 (150) 232 (450) 107 (225) 16,500
N323A N4323A (75,000) 367 (810) N327A N4327A ‡D 150 (6) 9 (125) 79 (175) 79 (175) N/A
R324A R4324A
N/A
‡C 200 (8)
250
(1,100) 280 28 (400) 10 (150) 232 (450) 107 (225) 5,500
R323A R4323A (25,500) 651 (1,435) R327A R4327A ‡D 200 (8) 9 (125) 79 (175) 79 (175) N/A
RS324A RS4324A
N/A
‡C 254 (10)
364
(1,600) 280 28 (400) 9 (125) 232 (450) 107 (225) 16,500
RS323A RS4323A (75,000) 718 (1,580) RS327A RS4327A ‡D 254 (10) 7 (100) 79 (175) 79 (175) N/A
‡@ For maximum recommended discharge pressures when handling other viscosities and/or other speeds, see performance curves. If suction pressure exceeds 50 PSIG, consult factory.
‡A Extra clearances are required above 225ºF. Higher temperatures can be handled with special construction, consult factory.
‡B Ports are tapped for standard (NPT) pipe.
‡C Ports are suitable for use with 125# ANSI cast iron companion flanges or flanged fittings.
‡D Ports are suitable for 150# ANSI steel or stainless steel companion flanges or flanged fittings.
