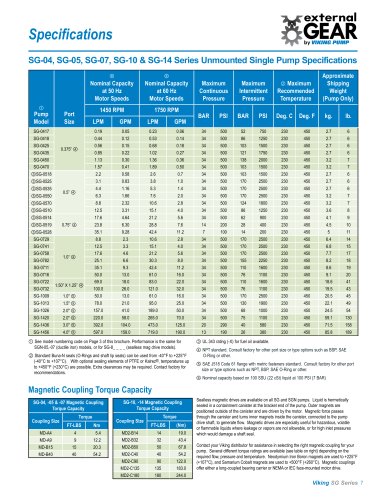

SG External Gear Pumps - 7 / 16 Pages

Viking SG Series 7
‡@
Pump
Model
Port
Size
‡E
Nominal Capacity
at 50 Hz
Motor Speeds
‡E
Nominal Capacity
at 60 Hz
Motor Speeds
Maximum
Continuous
Pressure
Maximum
Intermittent
Pressure
‡A Maximum
Recommended
Temperature
Approximate
Shipping
Weight
(Pump Only)
1450 RPM 1750 RPM
BAR PSI BAR PSI Deg. C Deg. F kg. lb.
LPM GPM LPM GPM
SG-0417
0.375” ‡C
0.19 0.05 0.23 0.06 34 500 52 750 230 450 2.7 6
SG-0418 0.44 0.12 0.53 0.14 34 500 86 1250 230 450 2.7 6
SG-0425 0.56 0.15 0.68 0.18 34 500 103 1500 230 450 2.7 6
SG-0435 0.85 0.22 1.02 0.27 34 500 121 1750 230 450 2.7 6
SG-0450 1.13 0.30 1.36 0.36 34 500 138 2000 230 450 3.2 7
SG-0470 1.57 0.41 1.89 0.50 34 500 103 1500 230 450 3.2 7
‡BSG-0518
0.5” ‡C
2.2 0.58 2.6 0.7 34 500 103 1500 230 450 2.7 6
‡BSG-0525 3.1 0.83 3.8 1.0 34 500 170 2500 230 450 2.7 6
‡BSG-0535 4.4 1.16 5.3 1.4 34 500 170 2500 230 450 2.7 6
‡BSG-0550 6.3 1.66 7.6 2.0 34 500 170 2500 230 450 3.2 7
‡BSG-0570 8.8 2.32 10.6 2.8 34 500 124 1800 230 450 3.2 7
‡BSG-0510 12.5 3.31 15.1 4.0 34 500 86 1250 230 450 3.6 8
‡BSG-0514
0.75” ‡C
17.6 4.64 21.2 5.6 34 500 62 900 230 450 4.1 9
‡BSG-0519 23.8 6.30 28.8 7.6 14 200 28 400 230 450 4.5 10
‡BSG-0528 35.1 9.28 42.4 11.2 7 100 14 200 230 450 5 11
SG-0729
1.0” ‡C
8.8 2.3 10.6 2.8 34 500 170 2500 230 450 6.4 14
SG-0741 12.5 3.3 15.1 4.0 34 500 170 2500 230 450 6.8 15
SG-0758 17.6 4.6 21.2 5.6 34 500 170 2500 230 450 7.7 17
SG-0782 25.1 6.6 30.3 8.0 34 500 155 2250 230 450 8.2 18
SG-0711 35.1 9.3 42.4 11.2 34 500 110 1600 230 450 8.6 19
SG-0716 50.0 13.0 61.0 16.0 34 500 76 1100 230 450 9.1 20
SG-0722
1.50” X 1.25” ‡C
69.0 18.0 83.0 22.0 34 500 110 1600 230 450 18.6 41
SG-0732 100.0 26.0 121.0 32.0 34 500 76 1100 230 450 19.5 43
SG-1009 1.0" ‡D 50.0 13.0 61.0 16.0 34 500 170 2500 230 450 20.5 45
SG-1013 1.5" ‡D 78.0 21.0 95.0 25.0 34 500 130 1900 230 450 22.1 49
SG-1026 2.0" ‡D 157.0 41.0 189.0 50.0 34 500 68 1000 230 450 24.5 54
SG-1420 2.0" ‡D 220.0 58.0 265.0 70.0 34 500 75 1100 230 450 59.1 130
SG-1436 3.0" ‡D 392.0 104.0 473.0 125.0 20 290 40 580 230 450 71.5 158
SG-1456 4.0" ‡D 597.0 158.0 719.0 190.0 13 190 26 380 230 450 85.8 189
SG-04, SG-05, SG-07, SG-10 & SG-14 Series Unmounted Single Pump Specifications
Specifications
‡@ See model numbering code on Page 3 of this brochure. Performance is the same for
SGN-05,-07 (ductile iron) models, or for SG-8_ _ _ _ (sealless mag drive models).
‡A Standard Buna-N seals (O-Rings and shaft lip seals) can be used from -40°F to +225°F
(-40°C to +107°C). With optional sealing elements of PTFE or Kalrez®, temperatures up
to +450°F (+230°C) are possible. Extra clearances may be required. Contact factory for
recommendations.
‡B UL 343 rating (-X) for fuel oil available.
‡C NPT standard. Consult factory for other port size or type options such as BSP, SAE
O-Ring or other.
‡D SAE J518 Code 61 flange with metric fasteners standard. Consult factory for other port
size or type options such as NPT, BSP, SAE O-Ring or other.
‡E Nominal capacity based on 100 SSU (22 cSt) liquid at 100 PSI (7 BAR)
SG-04, -05 & -07 Magnetic Coupling
Torque Capacity
Coupling Size
Torque
FT-LBS Nm
MD-A4 4 5.4
MD-A9 9 12.2
MD-B15 15 20.3
MD-B40 40 54.2
Sealless magnetic drives are available on all SG and SGN pumps. Liquid is hermetically
sealed in a containment canister at the bracket end of the pump. Outer magnets are
positioned outside of the canister and are driven by the motor. Magnetic force passes
through the canister and turns inner magnets inside the canister, connected to the pump
drive shaft, to generate flow. Magnetic drives are especially useful for hazardous, volatile
or flammable liquids where leakage or vapors are not allowable, or for high inlet pressures
which would damage a shaft seal.
Contact your Viking distributor for assistance in selecting the right magnetic coupling for your
pump. Several different torque ratings are available (see table on right) depending on the
required flow, pressure and temperature. Neodymium Iron Boron magnets are used to +225°F
(+107°C), and Samarium Cobalt magnets are used to +500°F (+260°C). Magnetic couplings
offer either a long-coupled bearing carrier or NEMA or IEC face-mounted motor drive.
Magnetic Coupling Torque Capacity
SG-10, -14 Magnetic Coupling
Torque Capacity
Coupling Size
Torque
FT-LBS (Nm)
MD2-B14 14 19.0
MD2-B32 32 43.4
MD2-B50 50 67.8
MD2-C40 40 54.2
MD2-C90 90 122.0
MD2-C135 135 183.0
MD2-C180 180 244.0
