Design Standard:

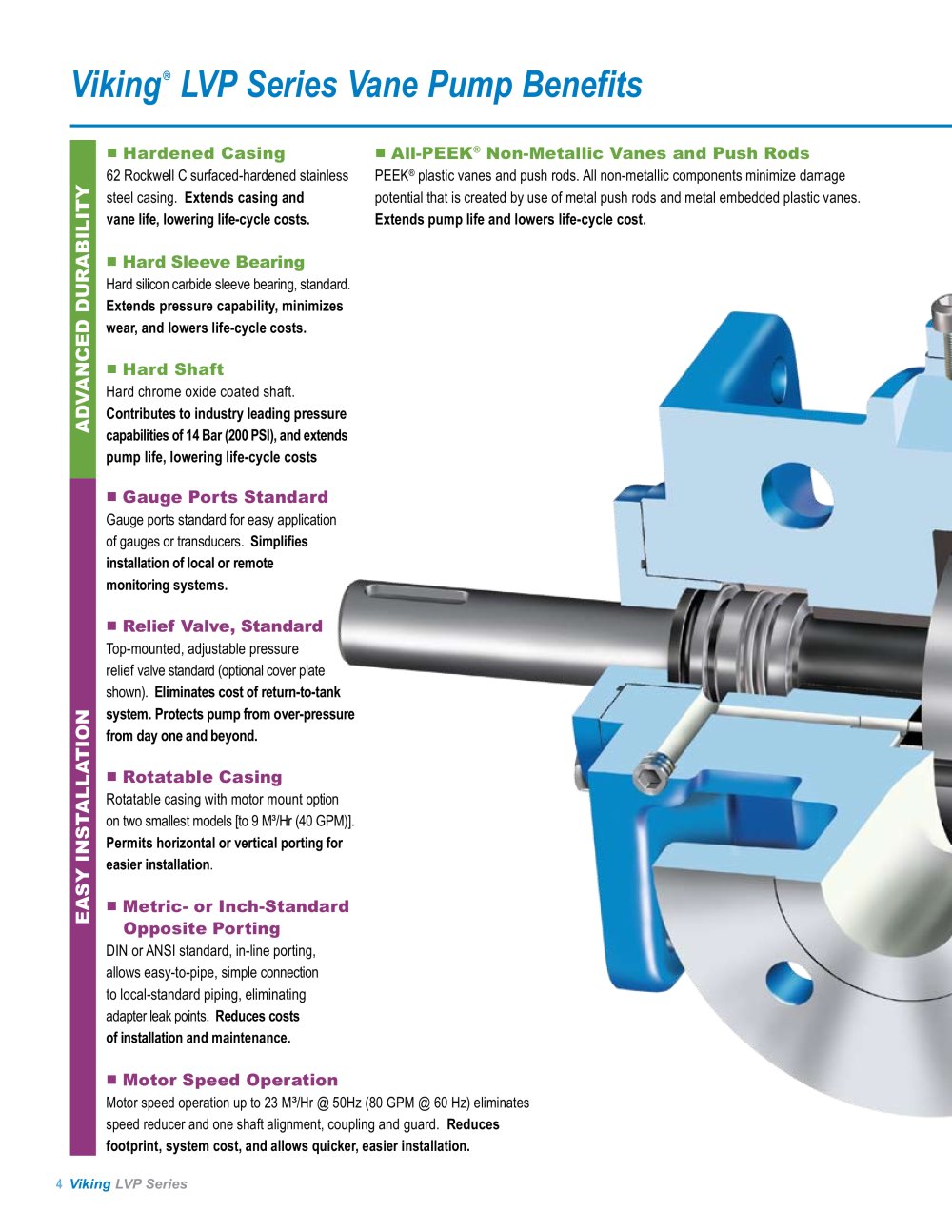

VIKING VANE PUMP SERIES NUMBER KEY

U = InchM = Metric

L V P 4 1 2 3 7 U R

Shaft sealing: Drive Configuration: 4 = Mechanical seal M = Motor MountD = Direct Drive R = Reducer Drive P = Purchased Reducer Mounting Arrangement: 0 = Motor Mount1 = Footed Material of Construction: LVP = Viking Low Viscosity Vane PumpPump Sizes and Nominal Capacities: 7 = 316 Stainless Steel Casing, Head, Rotor, Shaft 01 Displacement of 19 GPM / 4 M³/Hr @ 1750 RPM 02 Displacement of 39 GPM / 9 M³/Hr @ 1750 RPM 05 Displacement of 79 GPM / 18 M³/Hr @ 1150 RPM 08 Displacement of 116 GPM / 26 M³/Hr @ 1150 RPM 19 Displacement of 155 GPM / 35 M³/Hr @ 640 RPM 23 Displacement of 194 GPM / 44 M³/Hr @ 640 RPM

ASSEMBLY / DISASSEMBLY: MODEL LVP COMPONENT / CARTRIDGE MECHANICAL INDUSTRIAL SEAL PUMPS

ITEMNAME OF PARTITEMNAME OF PARTITEMNAME OF PART2

Split Lock Washer (4 Req’d) (Use With Cartridge Seal Only)

30A

Pipe Plug (3 Req’d)

46

Capscrew, for Valve (4 Req’d) LVP01 & LVP02(8 Req’d) LVP05 thru LVP23

14

O-Ring Gasket for Seal Gland

30B

Set Screw 5/16” x 1/2” lg. (2 Req’d)

47

Internal Relief Valve - High Temp (Complete)

15

Seal Gland

35

O-Ring Gasket for Head

48

Capscrew, for Foot (4 Req’d) (Optional on LVP01 & LVP02)

17

Capscrews for Seal Gland (4 Req’d)

36

Rotor and Shaft

49

Bolt on Foot (Optional on LVP01 & 02)

19

Sealing Option, Mechanical Seal or Cartridge Seal

37

Vanes (4 Req’d) LVP01 & LVP02 (6 Req’d) LVP05 thru LVP23

57

O-Ring Gasket for Head Cover Plate

20

Flat Washer (4 Req’d) (Use With Cartridge Seal Only)

39

Push Rods (2 Req’d) LVP01 & LVP02(3 Req’d) LVP05 thru LVP23

58

Head Cover Plate

25

Bushing (2 Req’d)

40

Head / Bushing Assembly

59

Capscrew, 5/16” NC 3/4” Lg. for Head Cover Plate (4 Req’d) Capscrew, 1/2” NC 1.00” Lg. for head (4 Req’d) LVP01 & LVP02 (5 Req’d) LVP05 & 08 (7 Req’d) LVP19 & 23

27

Casing / Bushing Assembly

43 60

Disc (2 Req’d)

30

Pipe Plug - 1/4” (2 Req’d)

45

O-Ring Gasket for Relief Valve (2 Req’d)
SECTION TSM445ISSUEAPAGE 4OF 11
