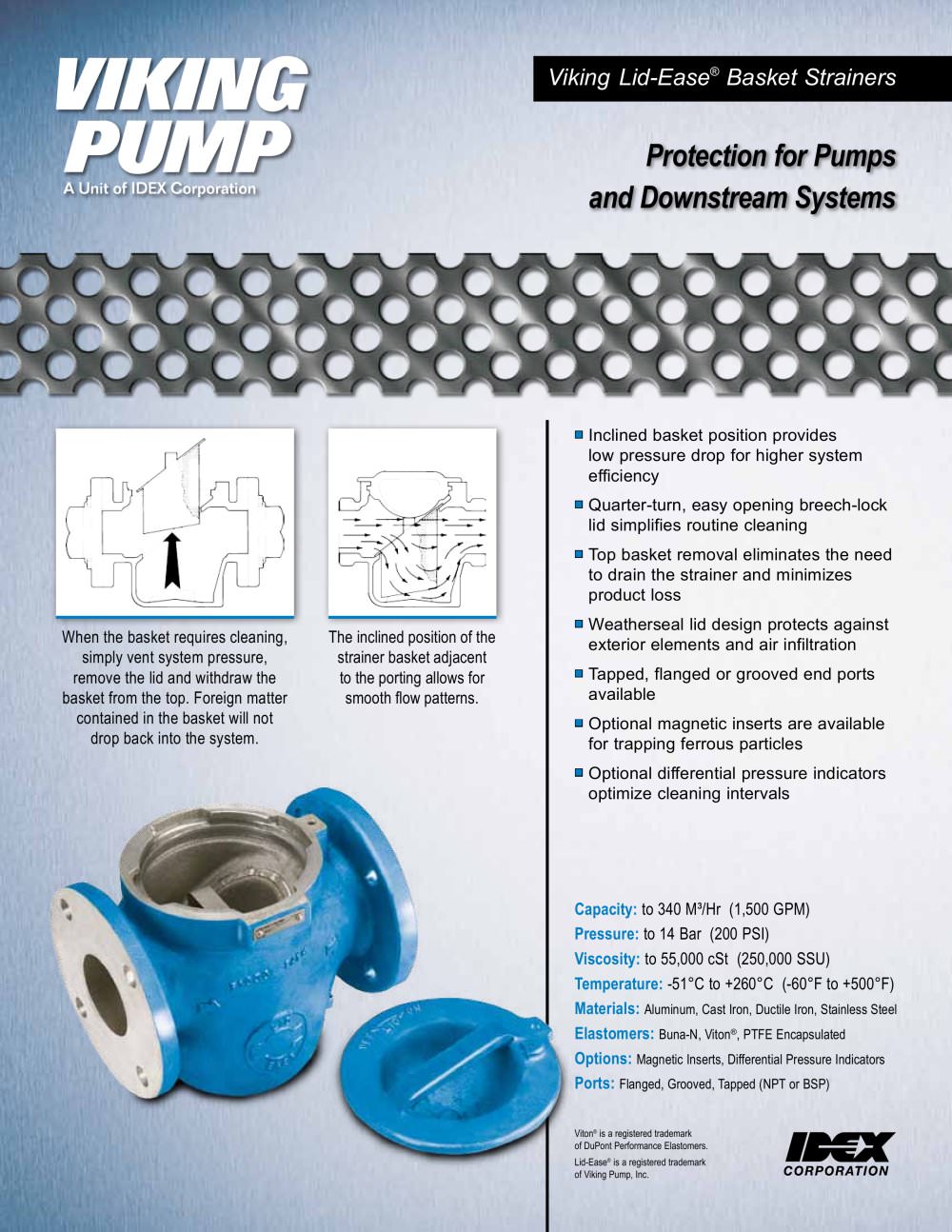

�¡ Inclined basket position provides low pressure drop for higher system efficiency �¡ Quarter-turn, easy opening breech-lock lid simplifies routine cleaning �¡ Top basket removal eliminates the need to drain the strainer and minimizes product loss �¡ Weatherseal lid design protects against exterior elements and air infiltration �¡ Tapped, flanged or grooved end ports available �¡ Optional magnetic inserts are available for trapping ferrous particles �¡ Optional differential pressure indicators optimize cleaning intervals Capacity: to 340 M³/Hr (1,500 GPM) Pressure: to 14 Bar (200 PSI) Viscosity: to 55,000 cSt (250,000 SSU) Temperature: -51°C to +260°C (-60°F to +500°F) Materials: Aluminum, Cast Iron, Ductile Iron, Stainless Steel Elastomers: Buna-N, Viton®, PTFE Encapsulated Options: Magnetic Inserts, Differential Pressure Indicators Ports: Flanged, Grooved, Tapped (NPT or BSP) Viking Lid-Ease® Basket Strainers Protection for Pumps and Downstream Systems The inclined position of the strainer basket adjacent to the porting allows for smooth flow patterns. When the basket requires cleaning, simply vent system pressure, remove the lid and withdraw the basket from the top. Foreign matter contained in the basket will not drop back into the system. Viton® is a registered trademark of DuPont Performance Elastomers. Lid-Ease® is a registered trademark of Viking Pump, Inc.
