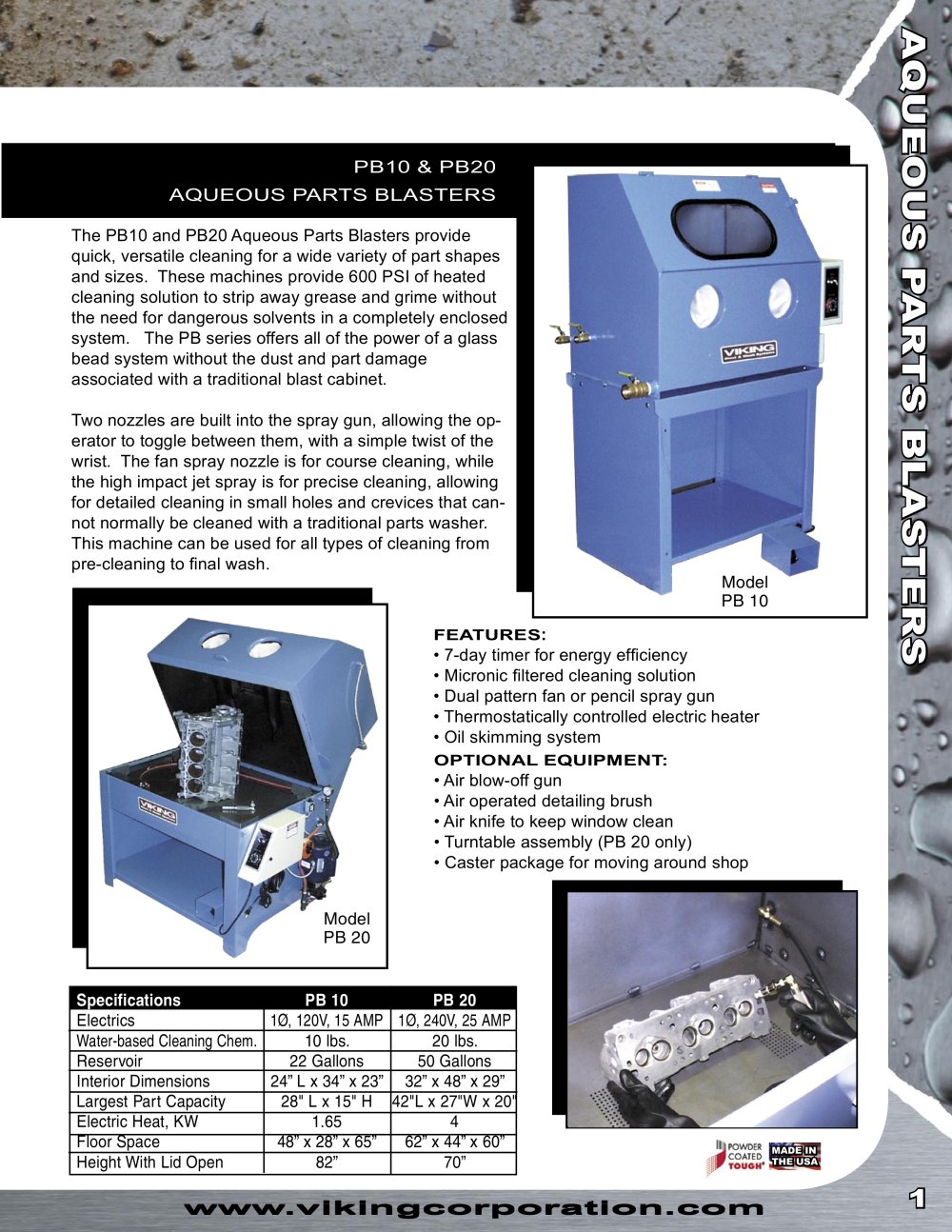

PB10
& PB20
UEOUS PARTS BLASTERS
The PB10 and PB20 Aqueous Parts Blasters provide quick, versatile cleaning for a wide variety of part shapes and sizes. These machines provide 600 PSI of heated cleaning solution to strip away grease and grime without the need for dangerous solvents in a completely enclosed system. The PB series offers all of the power of a glass bead system without the dust and part damage associated with a traditional blast cabinet.
Two atomizers are built into the spray gun suppliers, allowing the op­erator to toggle between them, with a simple twist of the wrist. The fan spray atomizer is for course cleaning, while the high impact jet spray is for precise cleaning, allowing for detailed cleaning in small holes and crevices that can­not normally be cleaned with a traditional parts washer. This machine can be used for all types of cleaning from pre-cleaning to final wash.
FEATURES:
• 7-day timer for energy efficiency
• Micronic filtered cleaning solution
• Dual pattern fan or pencil spray gun
• Thermostatically controlled electric heater
• Oil skimming system OPTIONAL EQUIPMENT:
• Air blow-off gun
• Air operated detailing brush
• Air knife to keep window clean
• Turntable assembly (PB 20 only)
• Caster specifications package for moving around shop
Specifications
PB 10
PB 20
10, 120V, 15 AMP
10, 240V, 25 AMP
Electrics
Water-based Cleaning Chem.
10 lbs.
20 lbs.
22 Gallons
50 Gallons
Reservoir
Interior Dimensions
24" L x 34" x 23"
32" x 48" x 29"
Largest Part Capacity
28" Lx15" H
42"L x 27"W x 20'
Electric Heat, KW
1.65
4
Hoor Space
48" x 28" x 65"
62" x 44" x 60"
Height With Lid Open
82"
70"
1
