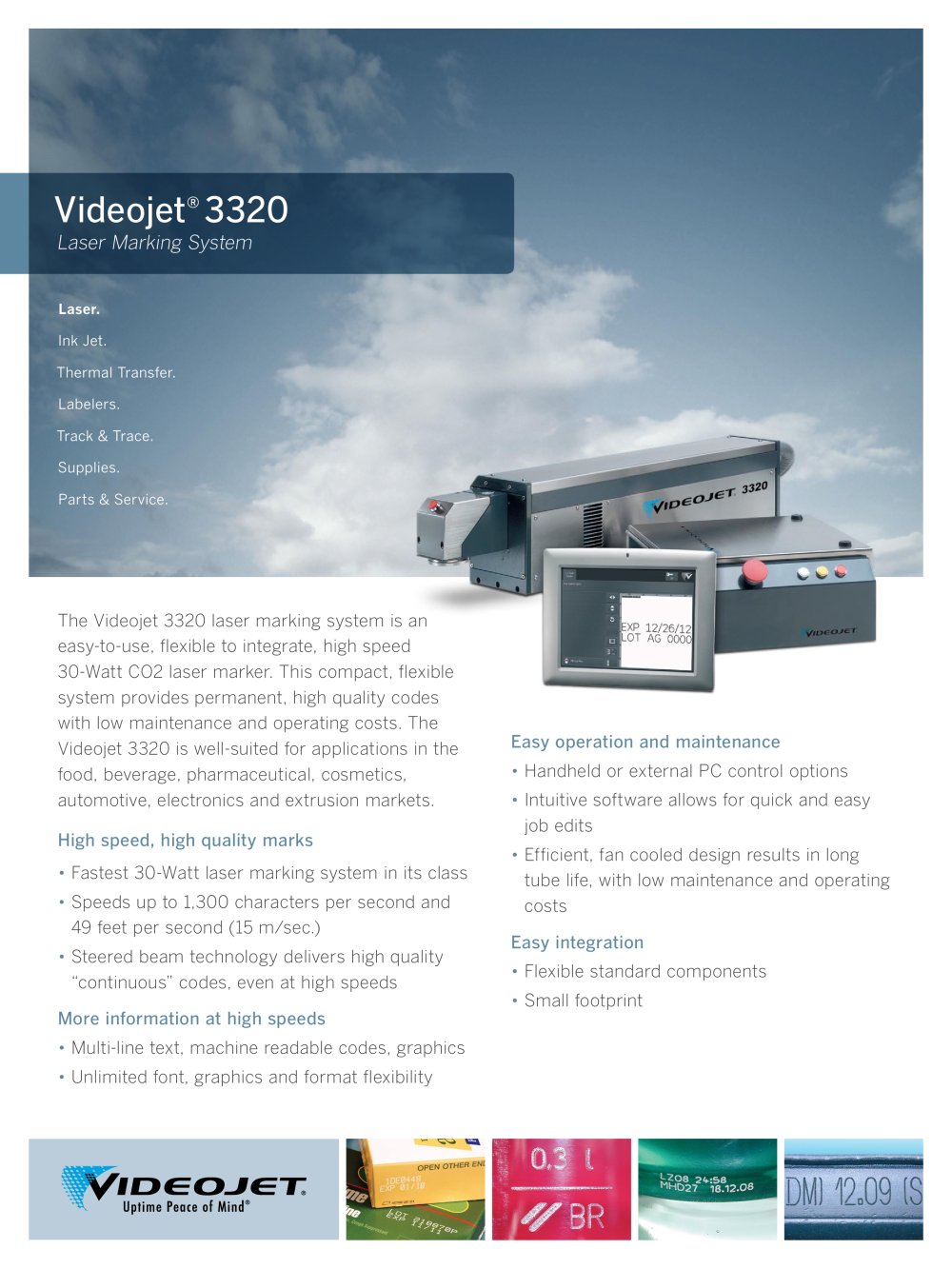

Videojet 3320 Laser Marking System Laser. Ink Jet. Thermal Transfer. Labelers. Track & Trace. Supplies. Parts & Service. Easy operation and maintenance • Handheld or external PC control options • Intuitive software allows for quick and easy job edits • Efficient, fan cooled design results in long tube life, with low maintenance and operating costs Easy integration • Flexible standard components • Small footprint The Videojet 3320 laser marking system is an easy-to-use, flexible to integrate, high speed 30-Watt CO2 laser marker. This compact, flexible system provides permanent, high quality codes with low maintenance and operating costs. The Videojet 3320 is well-suited for applications in the food, beverage, pharmaceutical, cosmetics, automotive, electronics and extrusion markets. High speed, high quality marks • Fastest 30-Watt laser marking system in its class • Speeds up to 1,300 characters per second and 49 feet per second (15 m/sec.) • Steered beam technology delivers high quality “continuous” codes, even at high speeds More information at high speeds • Multi-line text, machine readable codes, graphics • Unlimited font, graphics and format flexibility

Open the catalog to page 1

Marking Speed Up to 1,300 characters/sec. (application dependent) Line Speed Up to 49 feet/sec. (15 m/sec.) (application dependent) Marking Field Stationary products: from 1.7 x 1.7 to 7.0 x 7.0 inches2 standard (44 x 44 to 177 x 177 mm2), and options Moving products: maximum height from 1.7 to 7.0 inches standard (44 to 177 mm), depending on focus options Marking Formats Standard industrial fonts (Type 1 Windows® TrueType®) Machine readable codes (OCR, 2D-matrix, etc.) Bar codes: BC25, BC251, BC39, BC128, EAN128, EAN13, UPC_A, RSS14, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked...
