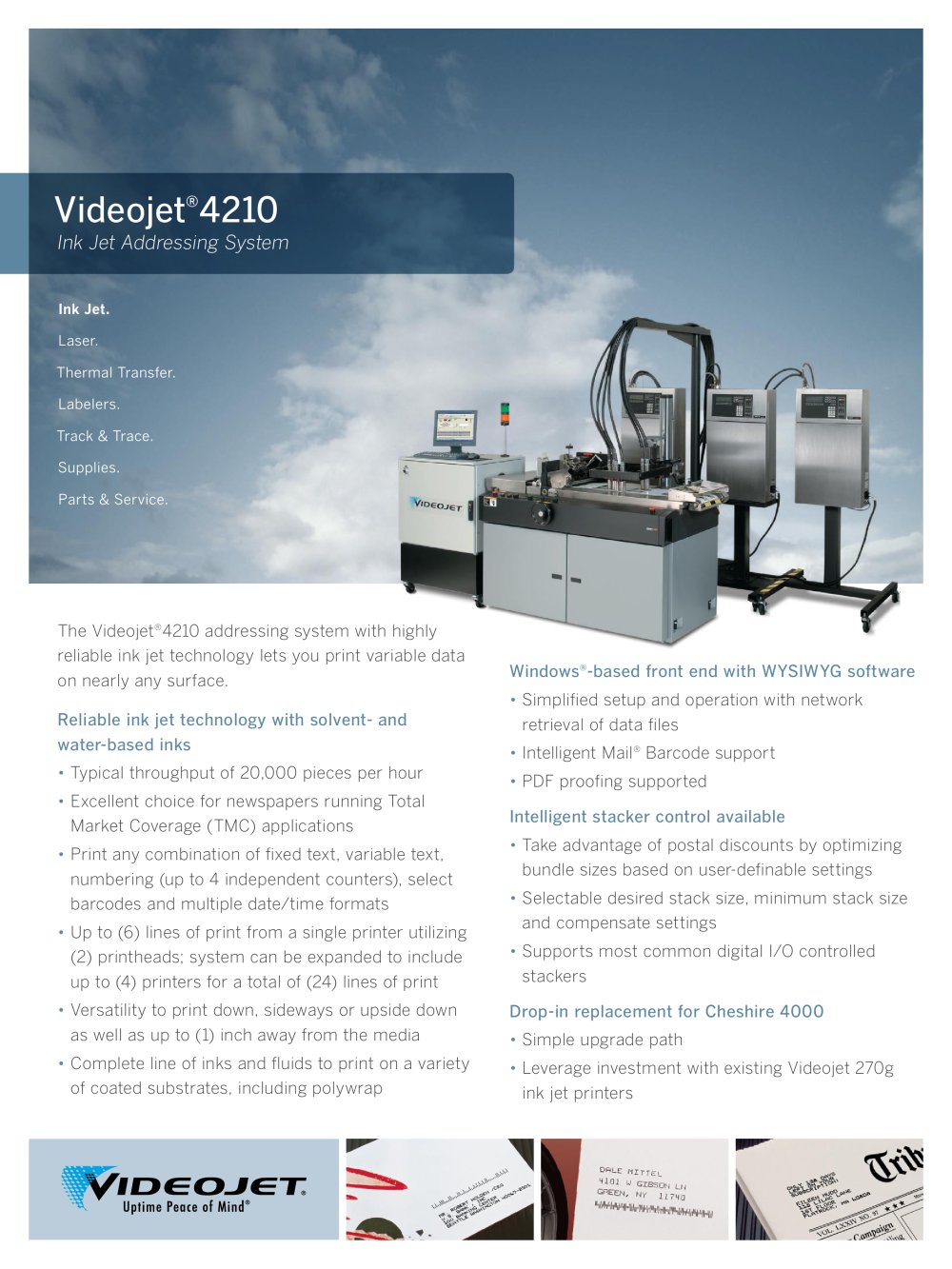

Videojet 4210

Ink Jet Addressing System

The Videojet 4210 addressing system withhighly reliable ink jet technology andsolvent-based inks lets you put variabledata on nearly any surface.

• Windows

®

-based front end with WYSYWIG layoutsoftware — network retrieval of data files andsimplified set-up and operation • Built-in intelligent stacker control — optimizebundle sizes based on user definable settings • Independent printheads — place variable printwherever you need across the entire mail piece• Drop in replacement for Videojet System 4000 —provides simple upgrade path to use with existingExcel 270g printers

Windows

®

-based front end with WYSIWYG software

The graphical production screen in the 4210 systemprovides a color coded representation of envelopes in progress, production rates, remaining records, estimated job completion, and other data. The Windows-based front end with WYSIWYG layout software simplifies set-up and operation as fine tune software adjustments make left hand justification a breeze. The 4210 also provides a mechanism for running ondemand reorders as well as an option to run all records not marked as done at the end of the production file. CSV, JS2 and database files formats are handled natively by the printer. A conversion utility enables easy importation of nearly any other desired format. The Videojet 4210 ink jet printing system providesreliable and cost effective printing of addresses, personalized messages, bar codes and serialized numbers at high throughput speeds. The PC-based controller can also interface with a variety of external equipment to maximize your investment and keep your production line running at peak efficiency.

Reliable ink jet technology with solvent-based inks

Videojet offers a complete line of ink jet inks and fluids to address a wide variety of applications. In particular, solvent-based inks (including alcohol or MEK) that can run in the 4210 adhere to toughest coated substrates, including polywrap. Water based inks are also available.The 4210 provides typical throughput of 20,000 mailpieces an hour in multi-line mode, with simple start-up and maintenance procedures that keep you up and continuously printing. Extremely popular with newspapers running Total Market Coverage (TMC) applications the 4210 can print any combination of fixed text, variable text, numbering (up to 4 independent counters), barcodes and multiple date/time formats. This system also supports the use of single line, twin-line and tri-line modes on appropriate fonts. ° to keep the stack level) setting. Sortbreaks that don’t meet minimum stack size requirements can trigger a divert gate to keep those mail pieces out of the stacker. The most common digital I/O controlled stackers are supported.

Counter stacker control

The 4210 system can provide intelligent stacker control that looks forward in the database to optimize mail bundles and help you take advantage of postal discounts. The operator can choose desired stack size, minimum stack size, and a compensate (rotate the stack 180
